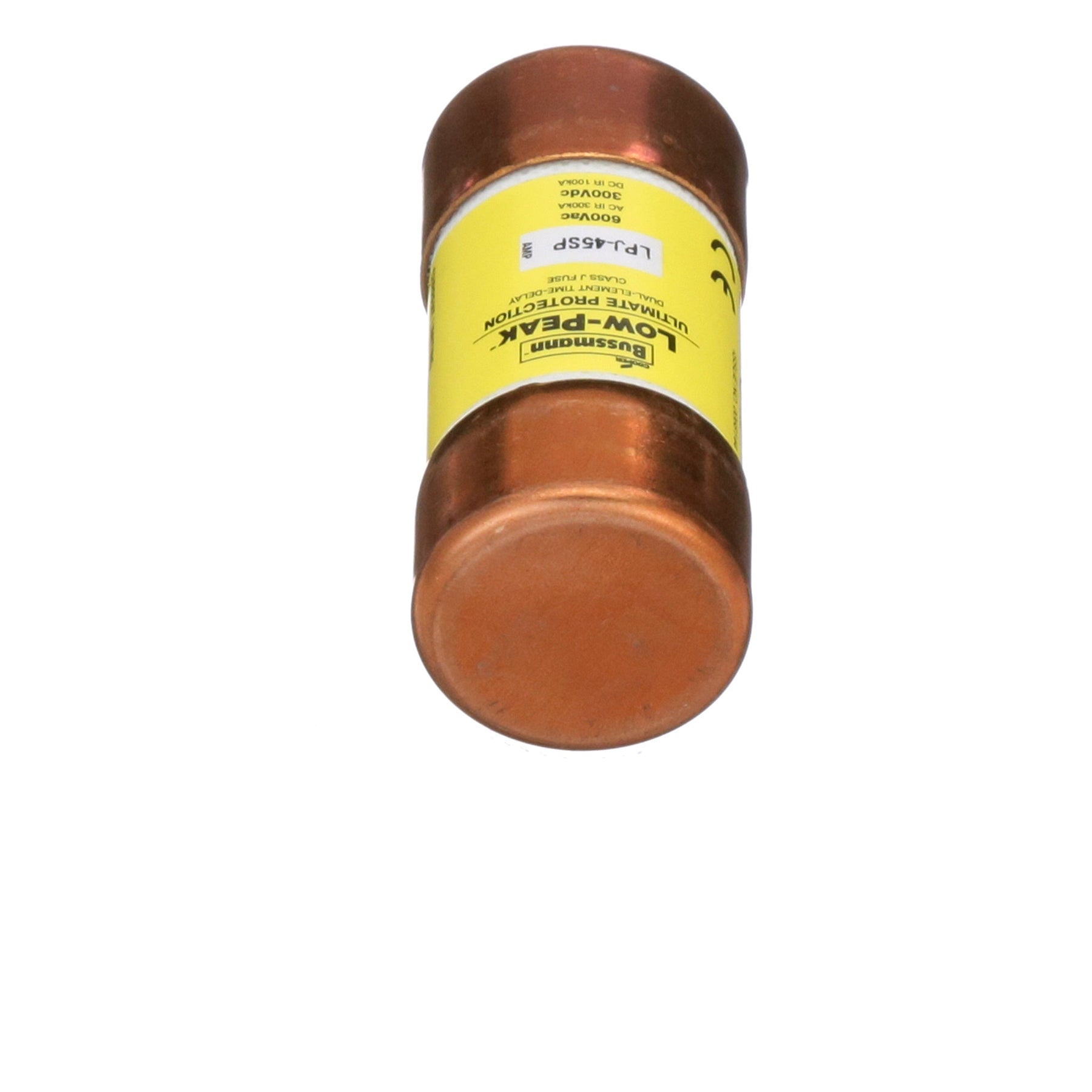

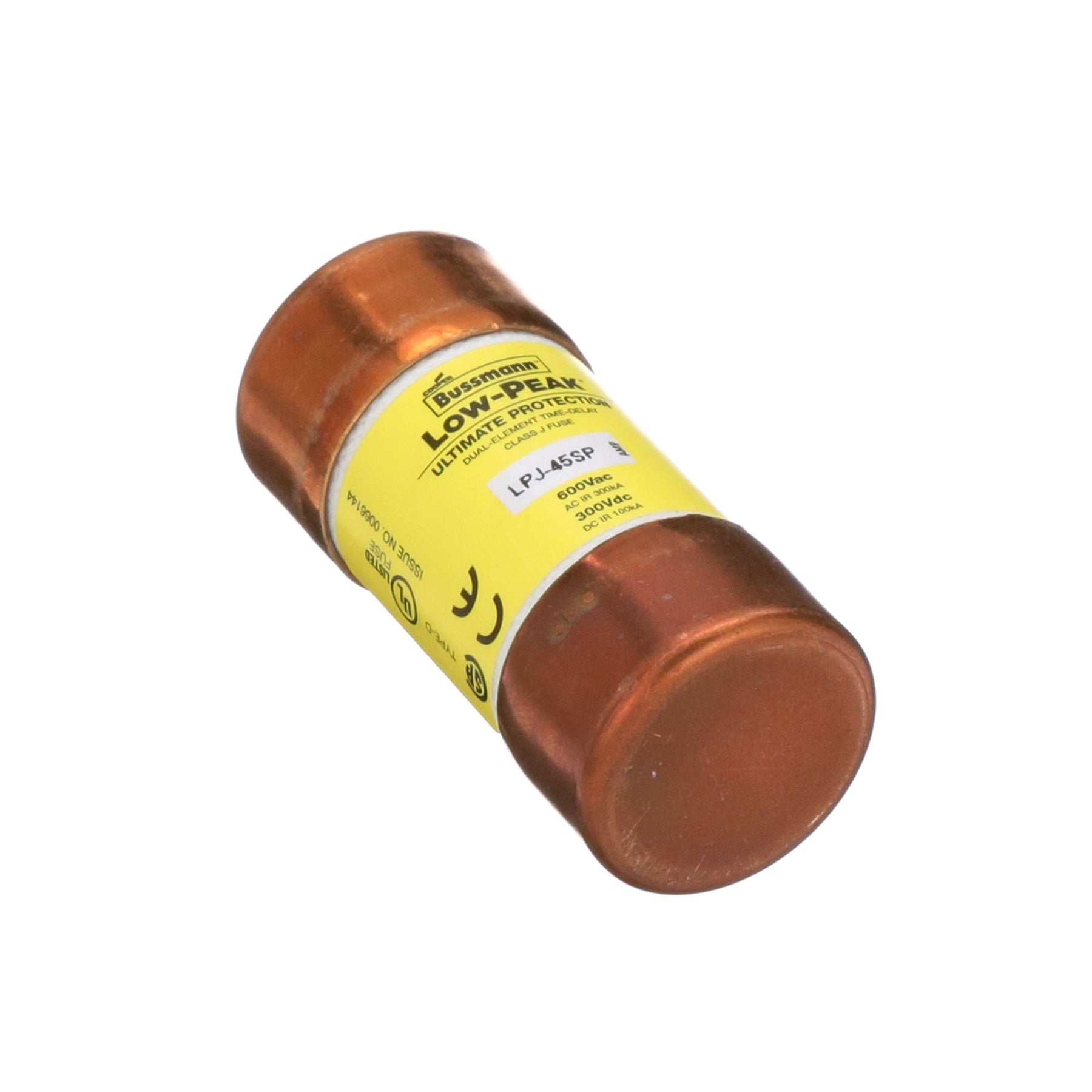

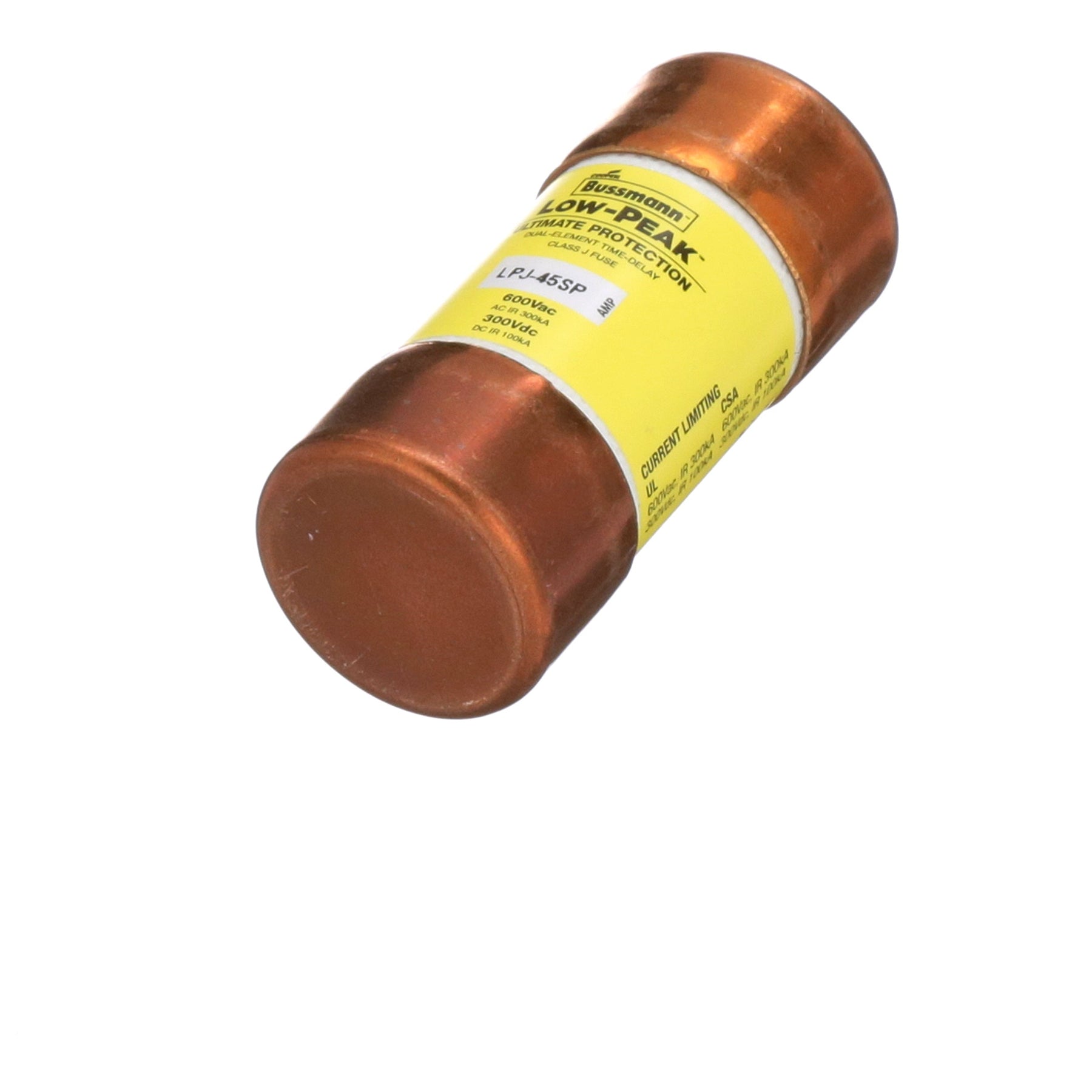

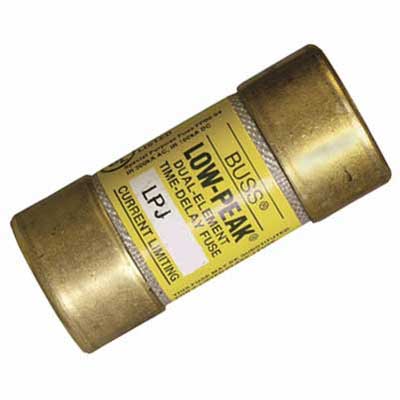

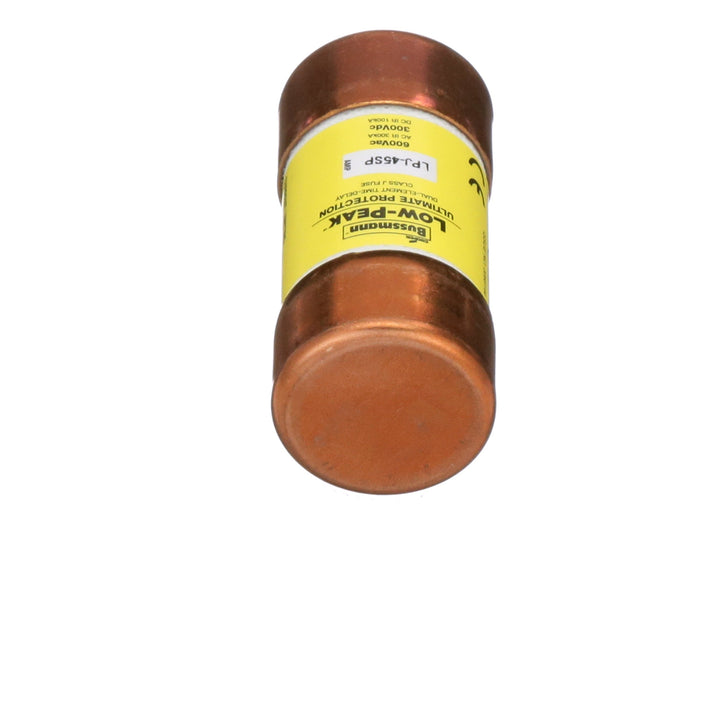

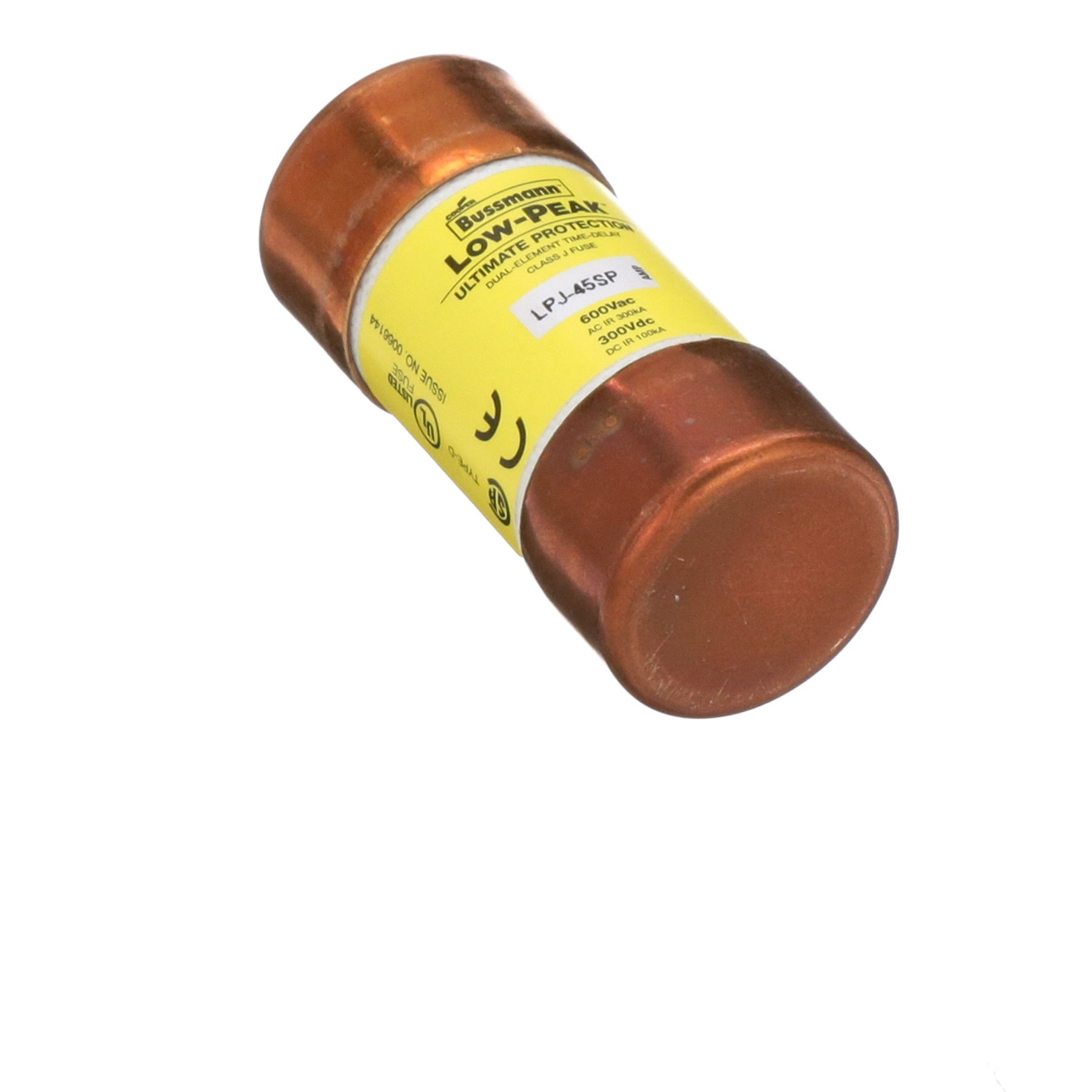

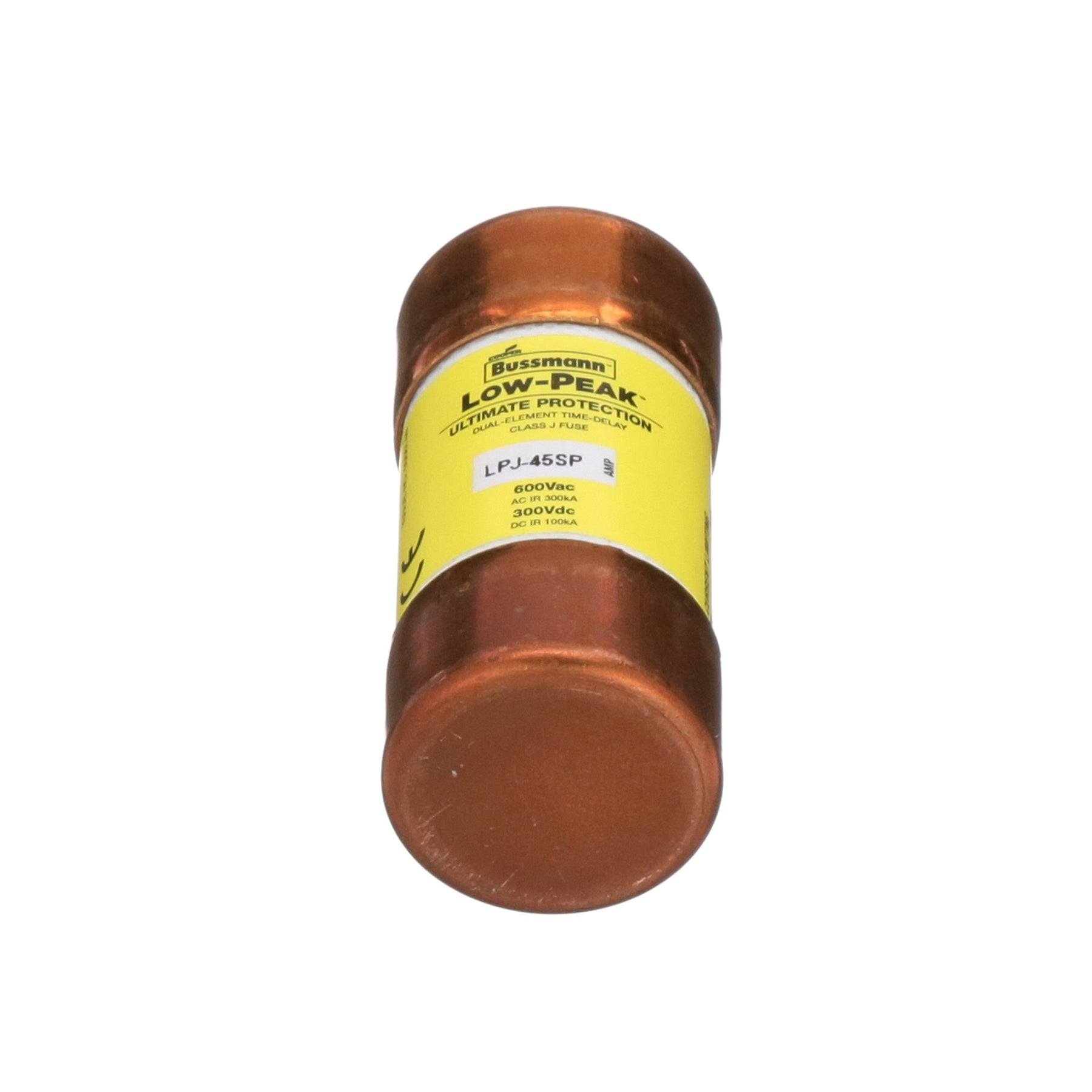

Bussmann LPJ-45SP - Class J Fuse 45A (300kA AIC @600V)

Bussmann LPJ-45SP is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 45A current capacity and a 300kA interrupting rating at 600V for high-fault current protection. The fuse measures 2-3/8 inches in length with a 1.06-inch diameter and features a single-barrel construction with a 1 lb weight. Certified to CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards, this Low-Peak series fuse is commonly used in motor branch circuits, transformers, and feeder protection applications.

Key Features & Specifications

• Type: Class J time-delay fuse with low-peak characteristics
• Voltage Rating: 600V AC
• Current Rating: 45A
• Dimensions: 2-3/8 in length, 1.06 in diameter
• Standards: CE/UL-Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor circuits, transformers, feeder protection
• Class Rating: J
• Barrels: 1
• AIC Rating: 300kA @ 600V
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712523349
• GTIN: 00051712523349
