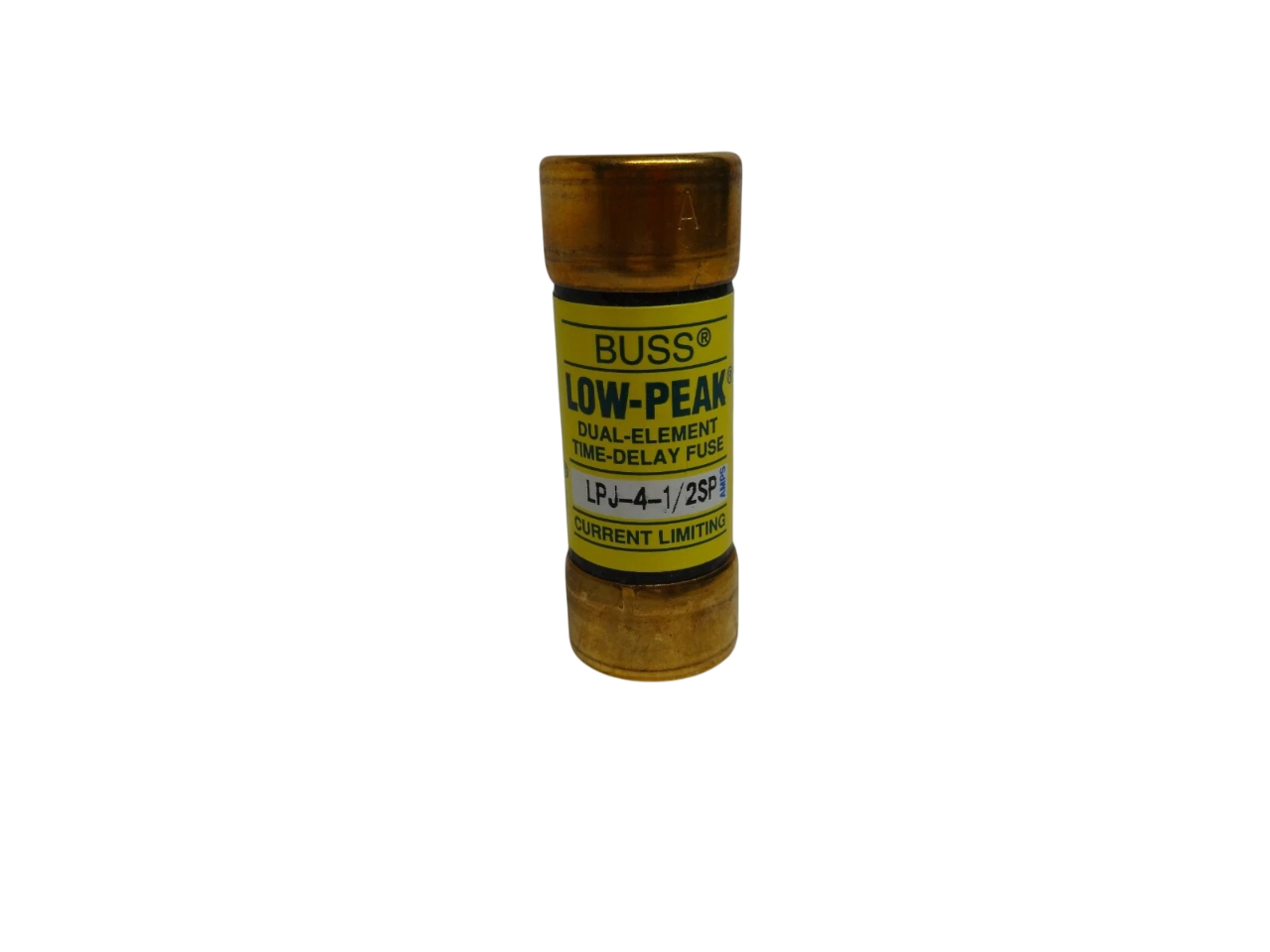

Eaton Bussmann LPJ-4-1/2SP - Class J Time-Delay Fuse 4A 600V (300kA AIC)

Eaton Bussmann LPJ-4-1/2SP is a Low-Peak time-delay fuse designed for reliable circuit protection in industrial applications, featuring a 4A current rating and 600V voltage rating for robust electrical performance. The fuse measures 2-1/4 inches in length with a 0.81-inch diameter and utilizes a single-barrel construction weighing 1 lb, built to withstand demanding environments. It meets CE, UL-Special Purpose Guide JFHR, and CSA Class 1422-02 standards while delivering a 300kA interrupting rating at 600V for superior fault protection. This Class J fuse is commonly employed in motor circuits, transformers, and feeder circuits where time-delay characteristics prevent nuisance tripping during temporary overload conditions.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 4A
• Dimensions: 2-1/4" length x 0.81" diameter
• Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Applications: Motor circuits, transformers, feeder circuits
• Class Rating: J
• AIC rating: 300kA@600V
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712522786
• GTIN: 00051712522786
