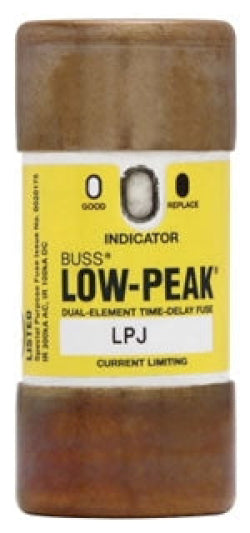

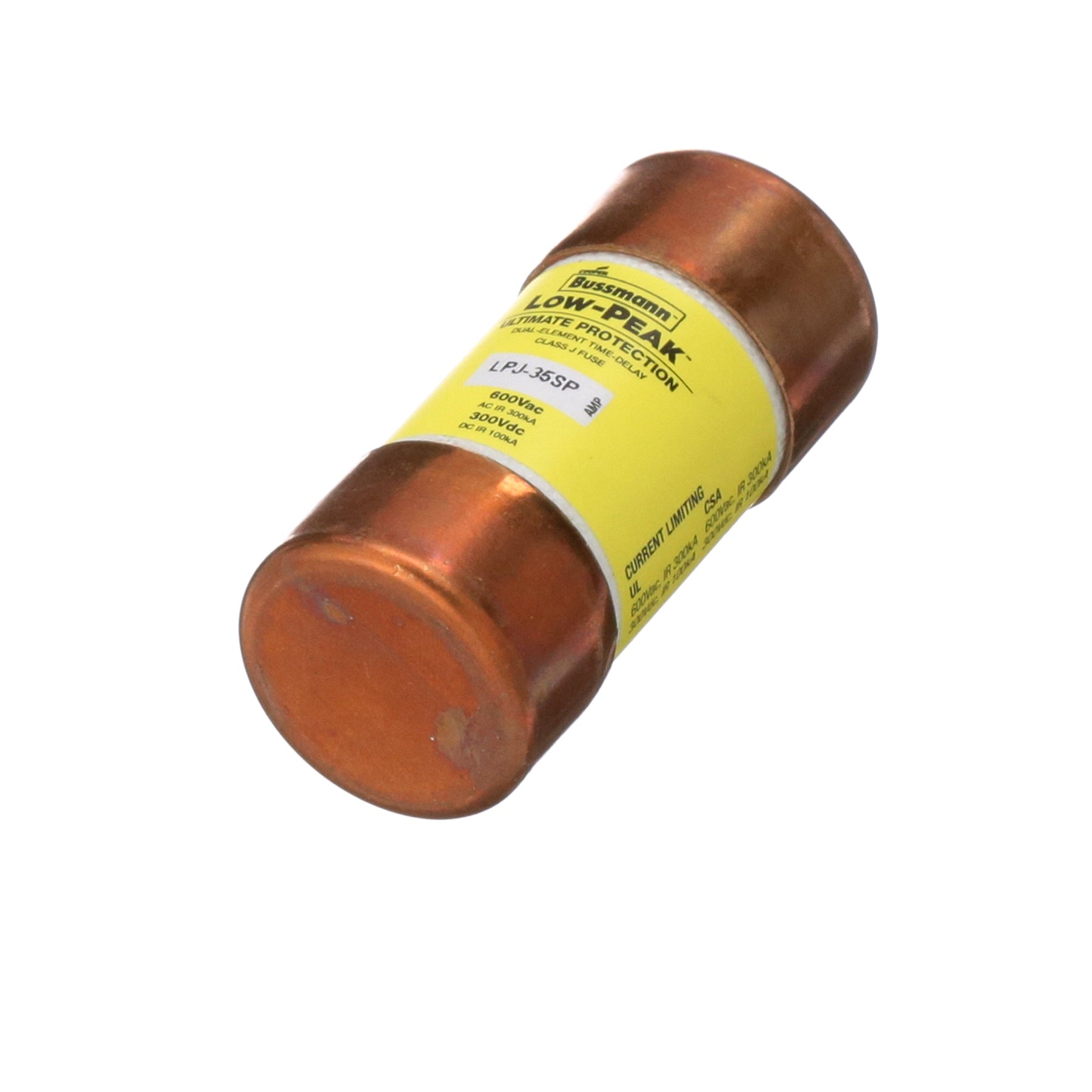

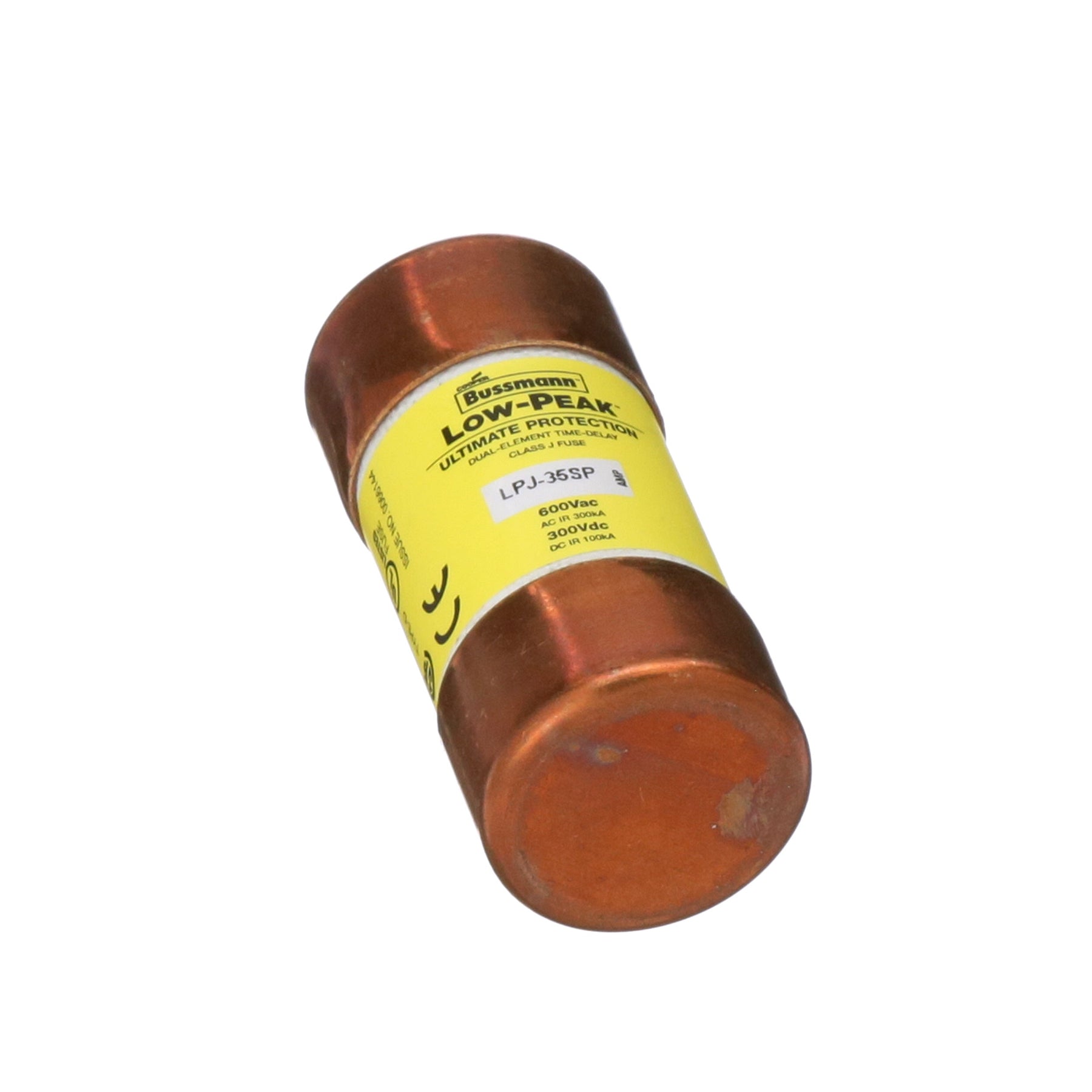

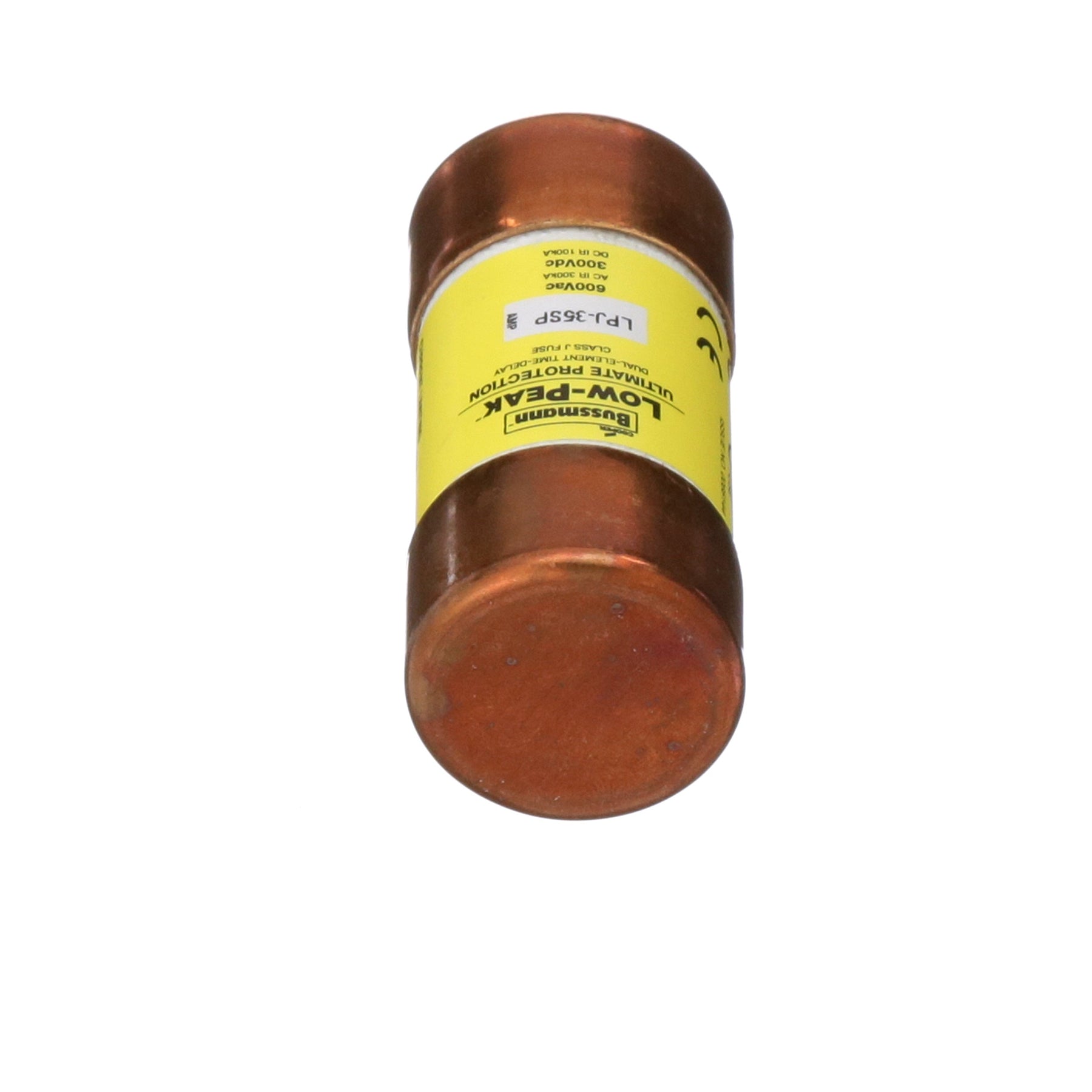

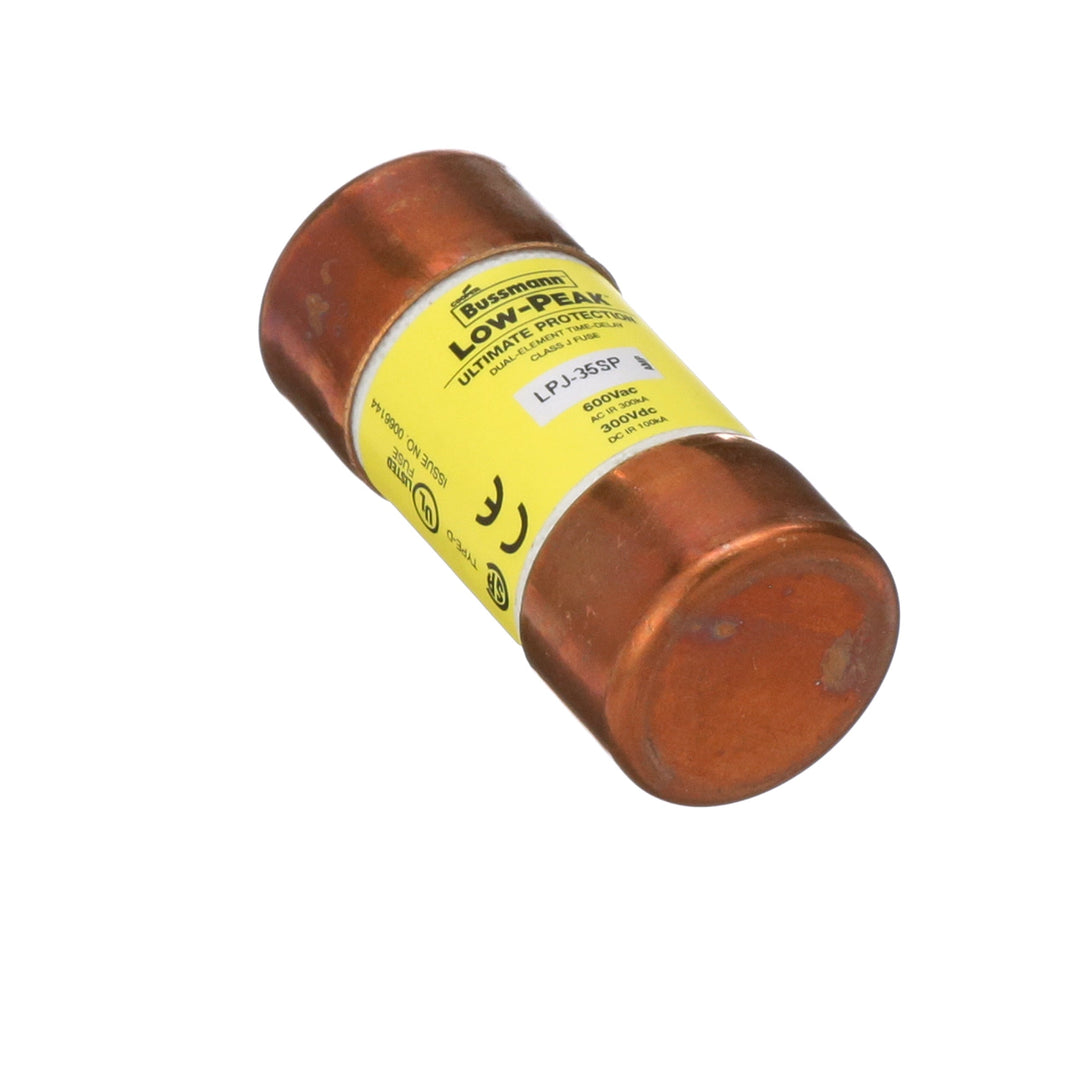

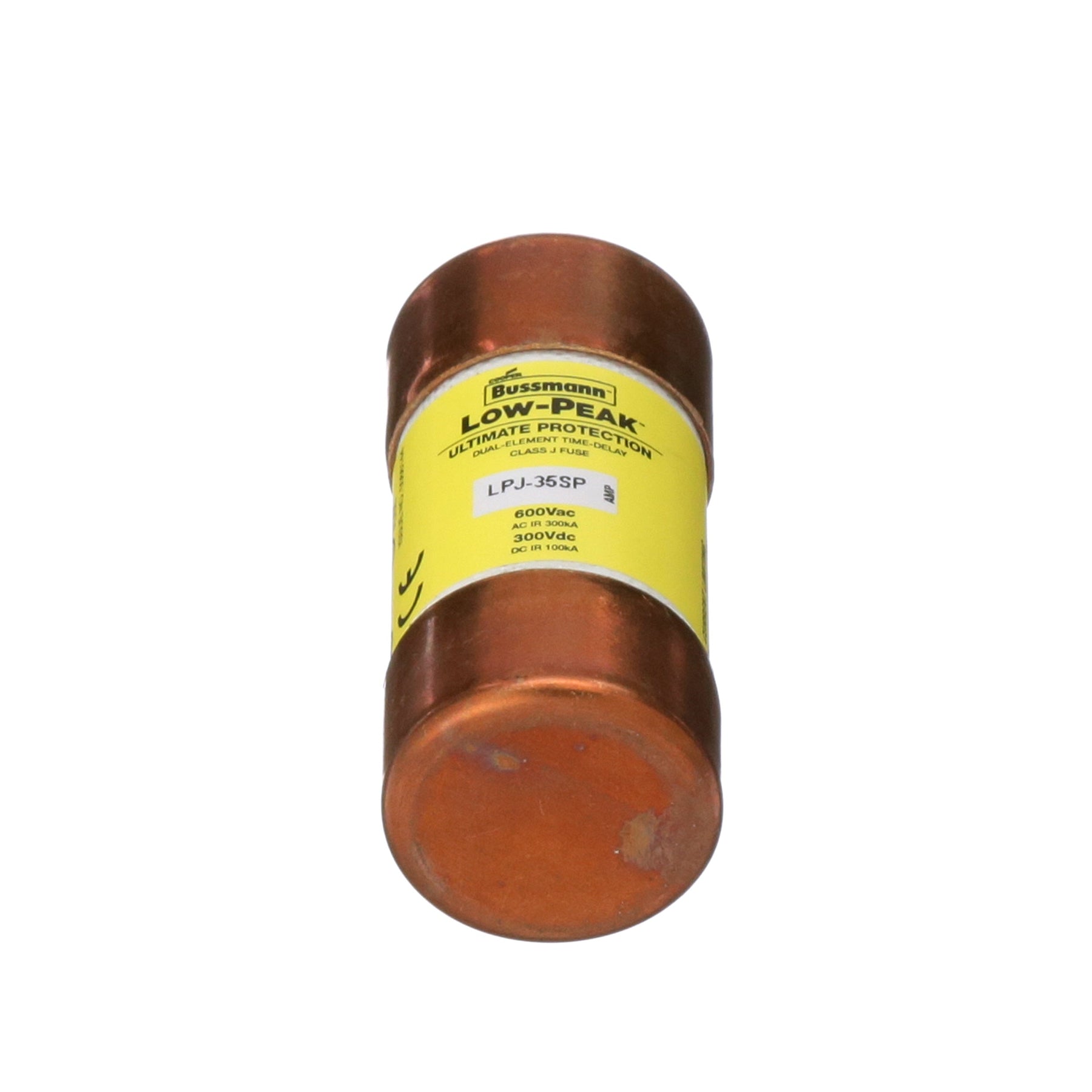

Bussmann LPJ-35SP - Class J Time-Delay Fuse 35A 600V (300kA AIC)

Price
Regular price $34.52
Regular price $176.40 Sale price $34.52
Save $141.88
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Bussmann LPJ-35SP is a time-delay, medium voltage fuse from the Low-Peak family designed to provide reliable circuit protection for electrical systems. It features a 35A current rating and 600V voltage rating with a high 300kA interrupting capacity at 600V for superior fault protection. The fuse is constructed with a single-barrel design measuring 2-3/8 inches in length and 1.06 inches in diameter, weighing 1 lb, and meets CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02 certification standards. This Class J fuse is engineered for industrial applications requiring durable circuit protection with time-delay characteristics to handle temporary overloads without nuisance opening.

Key Features & Specifications
  • Type: Low-Peak time-delay fuse, single barrel construction
  • Voltage Rating: 600V AC
  • Current Rating: 35A
  • Dimensions: 2-3/8 inches length, 1.06 inches diameter
  • Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
  • Applications: Industrial circuit protection systems
  • AIC rating: 300kA@600V
  • Class Rating: J
  • Barrels: 1
  • Weight: 1 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712523325
  • GTIN: 00051712523325
