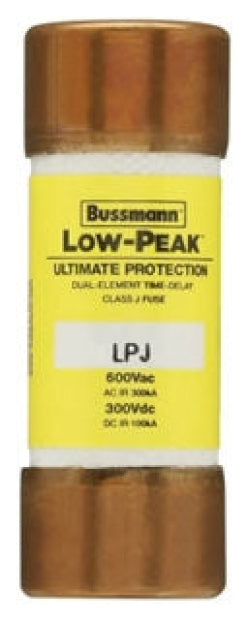

Bussmann LPJ-3-2/10SP - Class J Time-Delay Fuse 3A 600V (300kA AIC Rating)

The Bussmann LPJ-3-2/10SP is a Class J time-delay fuse designed for branch circuit protection in industrial electrical systems, providing superior short-circuit and overload protection. It features a 600V AC voltage rating with a 3A current rating and offers a high 300kA interrupting capacity at 600V AC. The fuse construction includes a single-barrel design with 0.81-inch diameter and 2-1/4-inch length, weighing 1 lb for robust performance. This fuse meets CE, UL Special Purpose Guide JFHR, and CSA Class 1422-02 certification standards for reliable operation. Typical applications include motor circuits, transformers, and power distribution equipment where current-limiting protection is required.

Key Features & Specifications

• Type: Class J time-delay fuse, Low-Peak family, current-limiting design
• Voltage Rating: 600V AC
• Current Rating: 3A
• Dimensions: 2-1/4" length, 0.81" diameter
• Standards: CE, UL Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor circuits, transformers, power distribution systems
• AIC rating: 300kA@600V AC
• Class Rating: J
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712522731
• GTIN: 00051712522731
