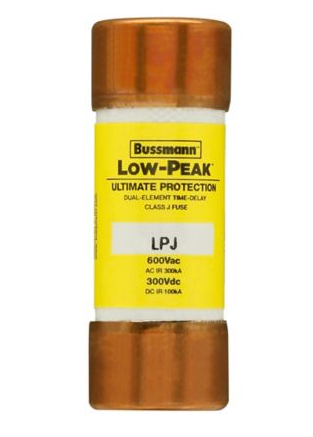

Eaton Bussmann LPJ-3-1/2SP - Class J Time-Delay Fuse 3A 600V (300kA AIC)

The Bussmann LPJ-3-1/2SP is a Low-Peak time-delay fuse designed for reliable circuit protection in industrial applications, featuring a 3A current rating and 600V voltage rating for robust electrical safeguarding. This Class J fuse is constructed with a single-barrel design measuring 2-1/4 inches in length and 0.81 inches in diameter, weighing 1 lb for secure installation. It meets CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards while delivering a 300kA interrupting rating at 600V for high-fault current protection. Typical applications include motor branch circuits, transformers, and feeder circuits where time-delay characteristics prevent nuisance blowing from temporary overloads.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, Class J, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 3A
• Dimensions: 2-1/4" length, 0.81" diameter
• Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Applications: Motor branch circuits, transformers, feeder circuits
• AIC rating: 300kA@600V
• Class Rating: J
• Barrels: 1
• Weight: 1 lb
• Certification: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02

Product Identification

• UPC: 051712522779
• GTIN: 00051712522779
