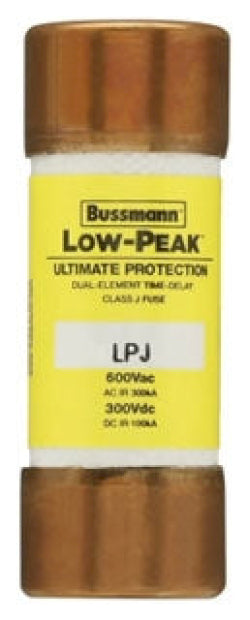

Bussmann LPJ-2SP - Class J Time-Delay Fuse 2A 600V (300kA AIC)

Bussmann LPJ-2SP is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. This 600VAC/300VDC rated fuse features a 2A current rating with a 300kA interrupting capacity at 600V, housed in a compact 2-1/4" body with 0.81" diameter and 1 lb weight. Constructed with time-delay characteristics and a single-barrel design, it meets CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards for reliable overcurrent protection. Typical applications include motor branch circuits, transformers, and power distribution equipment requiring Class J protection.

Key Features & Specifications

• Type: LPJ time-delay fuse with low-peak characteristics
• Voltage Rating: 600VAC/300VDC
• Current Rating: 2A
• Dimensions: 2-1/4" length x 0.81" diameter
• Weight: 1 lb
• Standards: CE/UL-Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor circuits, transformers, power distribution
• Class Rating: J
• AIC Rating: 300kA@600V
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 051712522809
• GTIN: 00051712522809
