Eaton Bussmann LPJ-2-1/4SP - Class J Time-Delay Fuse, 2A 600V
Eaton Bussmann LPJ-2-1/4SP - Class J Time-Delay Fuse, 2A 600V
Eaton Bussmann LPJ-2-1/4SP - Class J Time-Delay Fuse, 2A 600V
Eaton Bussmann LPJ-2-1/4SP - Class J Time-Delay Fuse, 2A 600V

Eaton Bussmann LPJ-2-1/4SP - Class J Time-Delay Fuse, 2A 600V

Bussmann
Price
Save $1,097.51
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

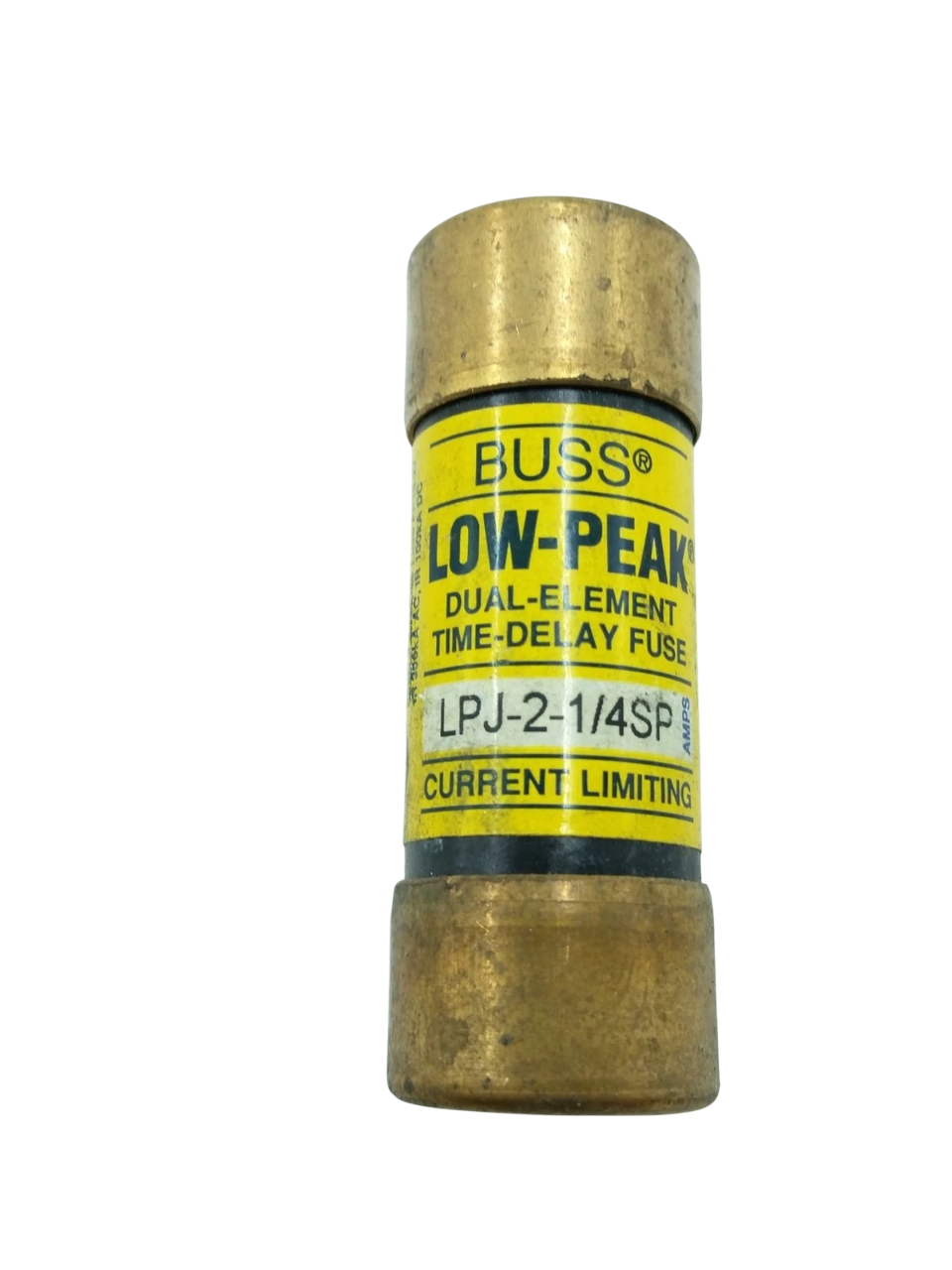

Eaton Bussmann LPJ-2-1/4SP is a Low-Peak time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It provides a 2A current rating and a 600V voltage rating for reliable overcurrent protection. The fuse features a compact, single-barrel construction with dimensions of 2.25 in H x 0.81 in W x 0.81 in D and a Class J rating, ensuring high interrupting capacity and physical non-interchangeability with lower-rated fuses. It is certified to CE, UL-Special Purpose Guide JFHR, and CSA Class 1422-02 standards, offering an interrupting rating of 300kA at 600V AC. Typical applications include protecting motor circuits, transformers, and other equipment where high fault current availability and time-delay characteristics are required.

Key Features & Specifications
  • Type: Low-Peak (LPJ) time-delay, current-limiting fuse, Class J
  • Voltage Rating: 600V AC
  • Current Rating: 2A
  • Dimensions: 2.25 in H x 0.81 in W x 0.81 in D (57.15 mm x 20.57 mm x 20.57 mm)
  • Standards: CE, UL-Special Purpose Guide JFHR, CSA Class 1422-02
  • Applications: Branch circuit and feeder protection for motors, transformers, and industrial equipment
  • AIC rating: 300,000 Amps @ 600V AC
  • Class Rating: J
  • Barrels: 1
  • Diameter: 0.81 in (20.57 mm)
  • Weight: 0.19 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712522700
  • GTIN: 00051712522700
