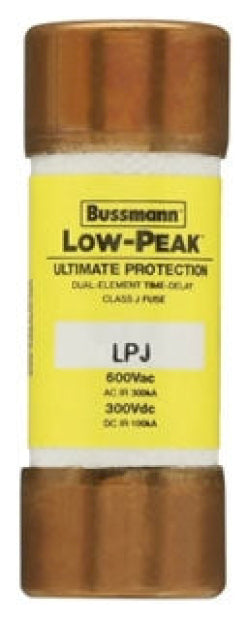

Bussmann LPJ-2-1/2SP - Class J Time-Delay Fuse 2A 600V (300kA AIC)

The Bussmann LPJ-2-1/2SP is a Class J time-delay fuse designed for branch circuit protection in industrial electrical systems, providing superior short-circuit and overload protection. It features a 600V AC voltage rating with a 2A current rating and offers an interrupting rating of 300,000 amperes at 600V AC. The fuse is constructed with a single barrel, measures 2-1/4 inches in length with a 0.81-inch diameter, and has a weight of 1 lb. It complies with CE, UL Special Purpose Guide JFHR, and CSA Class 1422-02 standards, ensuring reliable performance in demanding applications such as motor protection and feeder circuits.

Key Features & Specifications

• Type: Class J, Time-Delay, Low-Peak, Single Barrel Fuse
• Voltage Rating: 600V AC
• Current Rating: 2A
• Dimensions: 2-1/4 in Length x 0.81 in Diameter
• Standards: CE, UL-Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Industrial branch circuit, motor, and feeder protection
• AIC rating: 300kA @ 600V AC
• Class Rating: J
• Barrels: 1
• Weight: 1 lb
• Certification: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712522717
• GTIN: 00051712522717
