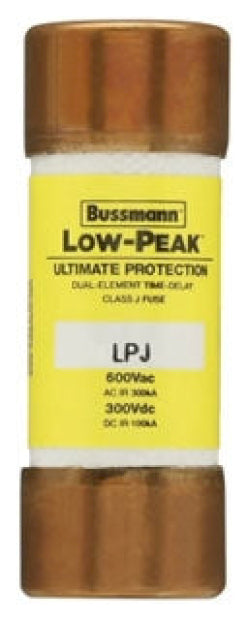

Bussmann LPJ-1SP - Class J Time-Delay Fuse 1A 600V (300kA AIC)

Bussmann LPJ-1SP is a low-voltage time-delay fuse designed for circuit protection in industrial applications, featuring a 600V AC rating and 1A current capacity. Its compact 2-1/4" length and 0.81" diameter cylindrical design with a single barrel construction meets stringent CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards. The Class J fuse offers 300kA interrupting capacity at 600V, with Low-Peak technology to reduce let-through energy. Typical applications include motor branch circuits, transformers, and power distribution systems requiring selective coordination.

Key Features & Specifications

• Type: LPJ time-delay fuse with Low-Peak current-limiting design
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 2-1/4" length x 0.81" diameter
• Standards: CE/UL-Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor circuits, transformers, industrial power distribution
• Class Rating: J
• AIC rating: 300kA@600V
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712523233
• GTIN: 00051712523233
