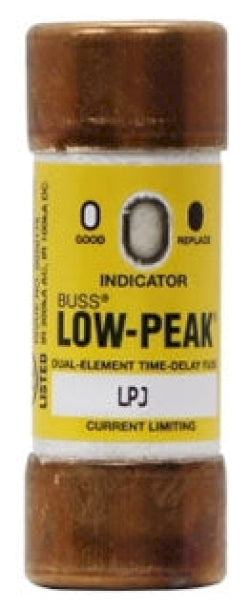

Eaton Bussmann LPJ-15SPI - Class J Time-Delay Fuse 15A 600V (300kA AIC)

Eaton Bussmann LPJ-15SPI is a Low-Peak time-delay fuse designed for protecting motors, transformers, and branch circuits against short-circuits and overloads. It features a 600V AC voltage rating and a 15A current rating, providing reliable circuit protection. The fuse is constructed with a single barrel design, measuring 2-1/4 inches in length and 0.81 inches in diameter, and weighs 1.18 lb. It complies with CE, UL-Special Purpose Guide JFHR, and CSA Class 1422-02 standards, ensuring industry-recognized safety and performance. Typical applications include industrial control panels, HVAC systems, and motor starter circuits where high interrupting capacity is required.

Key Features & Specifications

• Type: LPJ time-delay fuse, current-limiting design with low peak let-through current
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 2-1/4 inch length, 0.81 inch diameter
• Standards: CE, UL-Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor protection, transformer circuits, industrial control panels
• Class Rating: J
• AIC rating: 300kA @ 600V AC
• Barrels: 1
• Weight: 1.18 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712626316
• GTIN: 00051712626316
