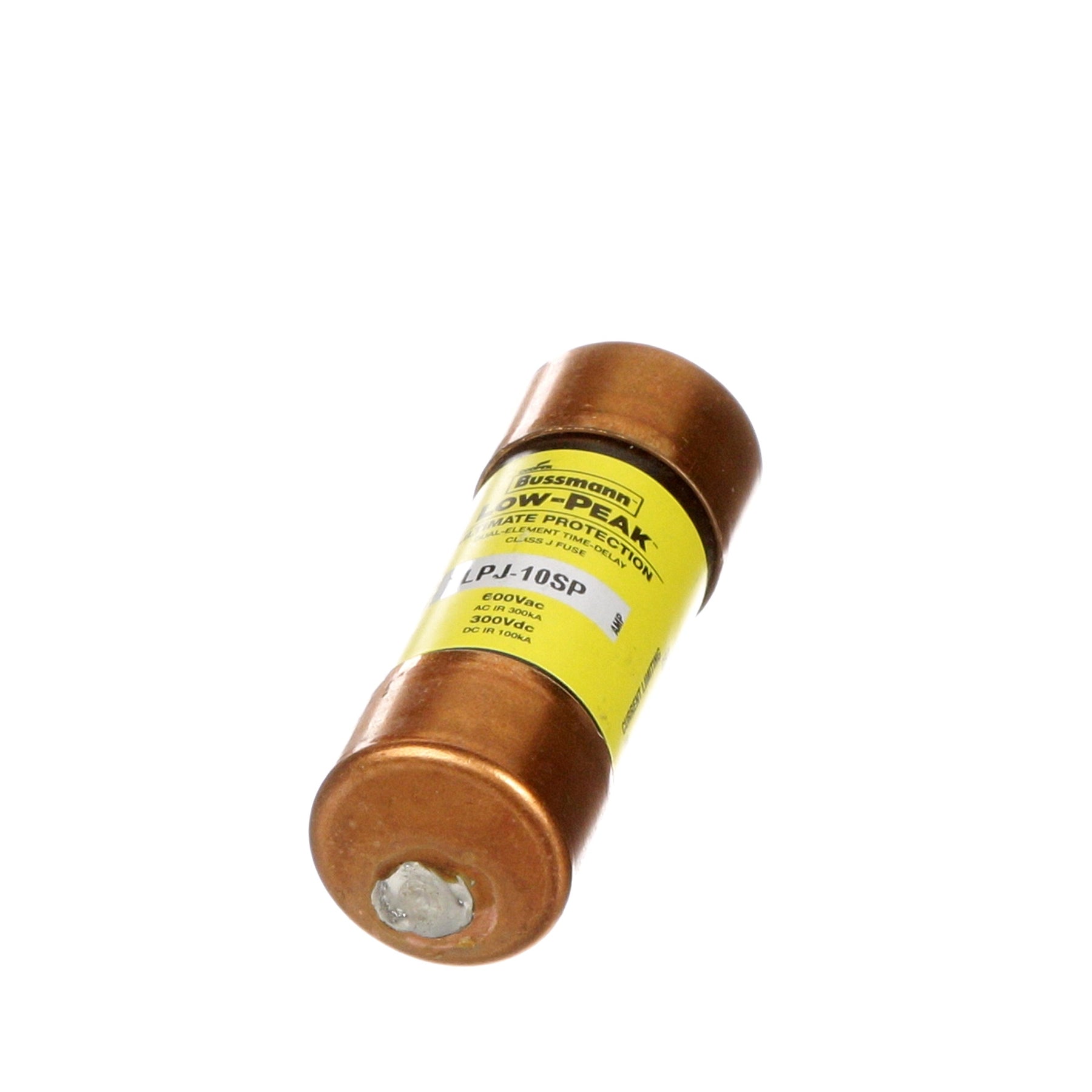

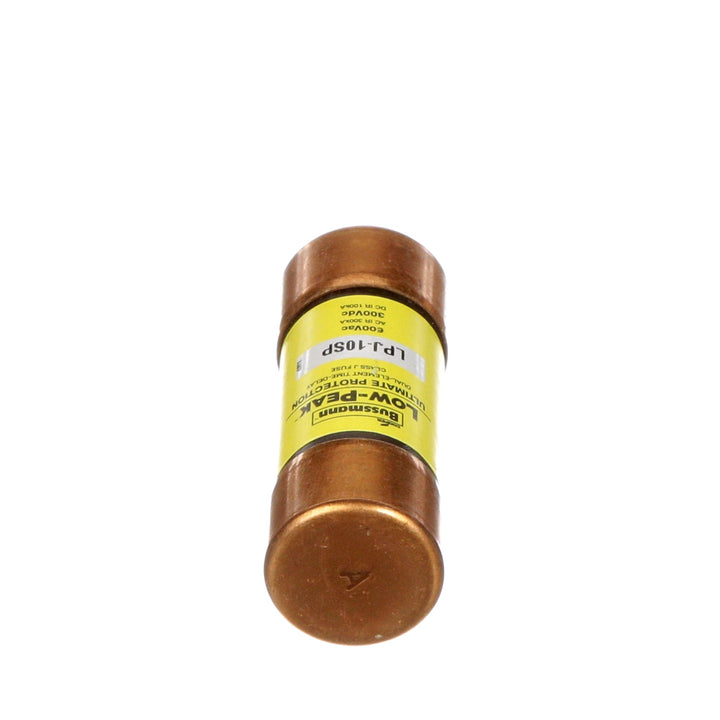

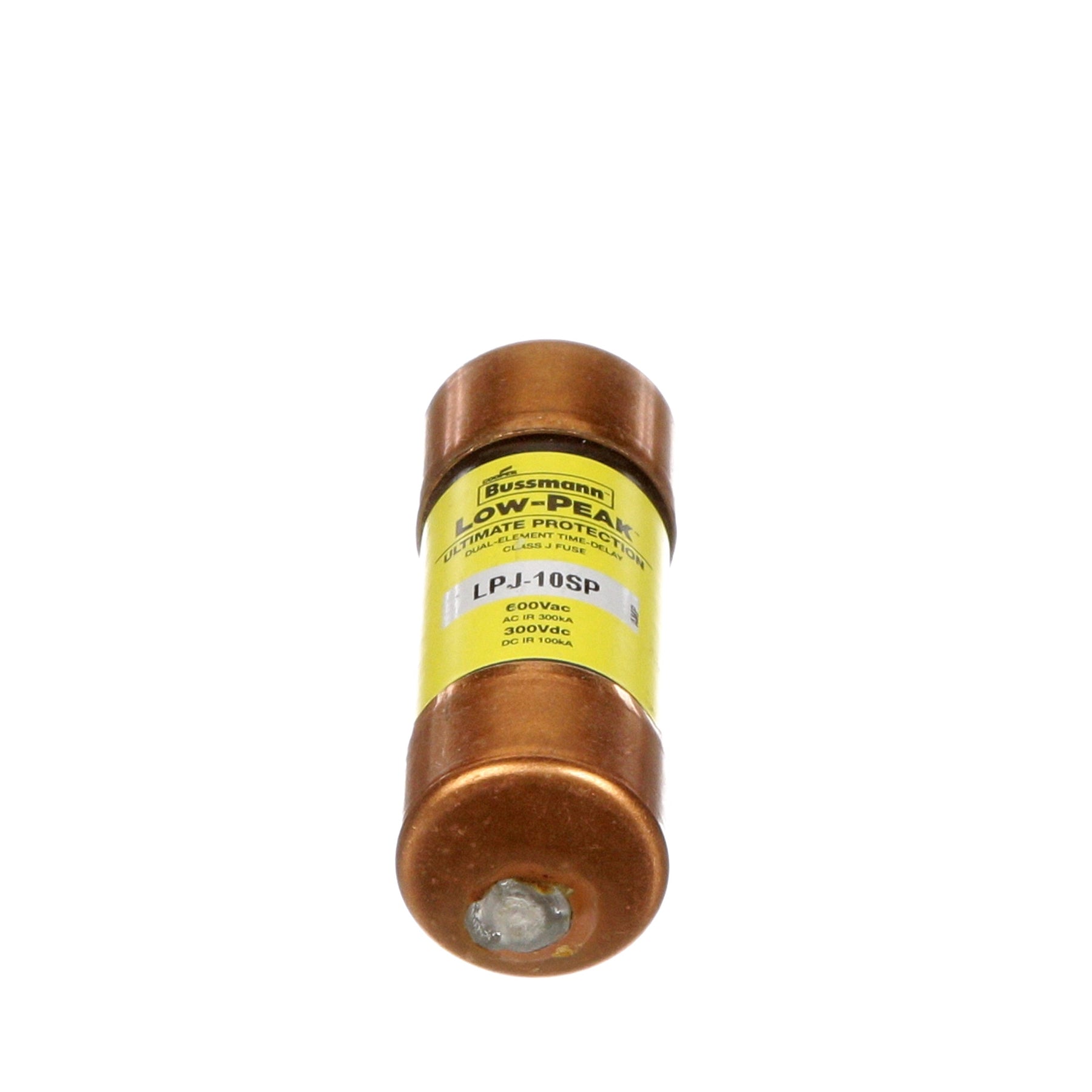

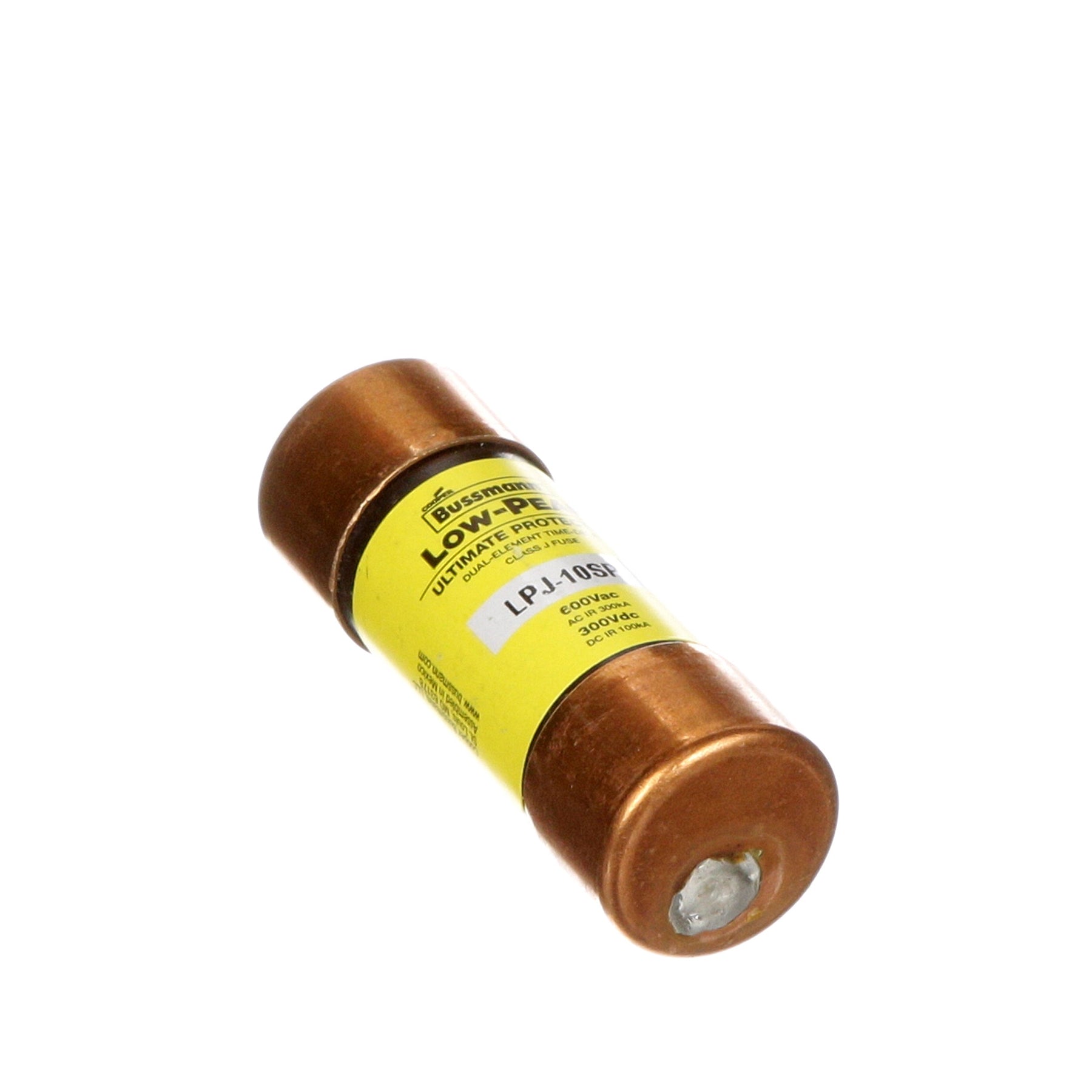

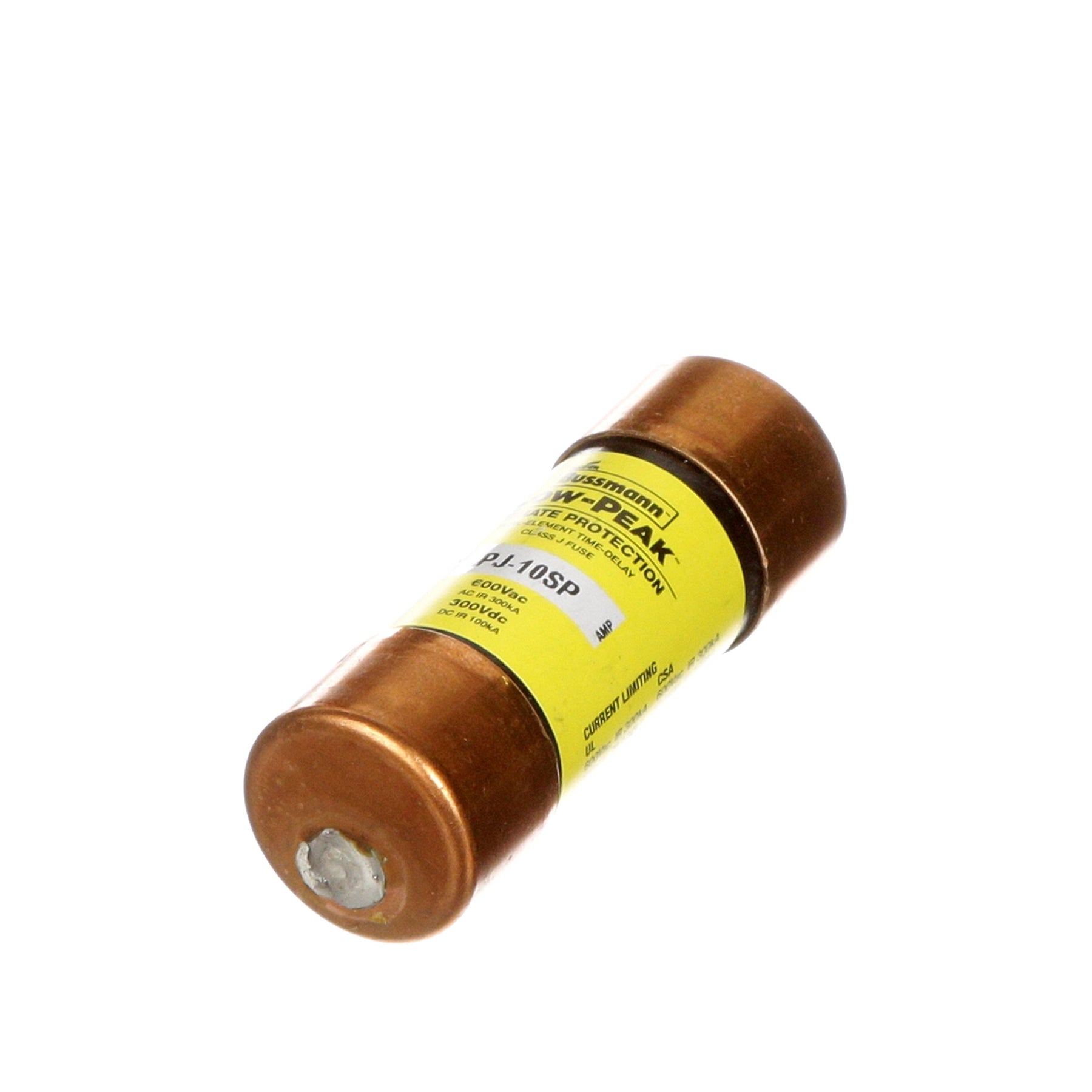

Bussmann LPJ-10SP - Class J Time-Delay Fuse 10A (300kA AIC @600V)

Bussmann LPJ-10SP is a Class J low-voltage fuse designed for circuit protection in industrial and commercial applications. It features a 600V AC rating with a 10A current capacity and 300kA interrupting rating, housed in a compact 2-1/4" body with 0.81" diameter. The fuse meets CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards, constructed with time-delay characteristics for motor circuit protection. Typical applications include panelboards, switchgear, and industrial control panels requiring reliable short-circuit protection.

Key Features & Specifications

• Type: LPJ Class J time-delay fuse with low-peak characteristics
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 2-1/4" length x 0.81" diameter
• Standards: CE/UL-Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor circuits, panelboards, industrial controls
• Class Rating: J
• AIC rating: 300kA@600V
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712523226
• GTIN: 00051712523226
