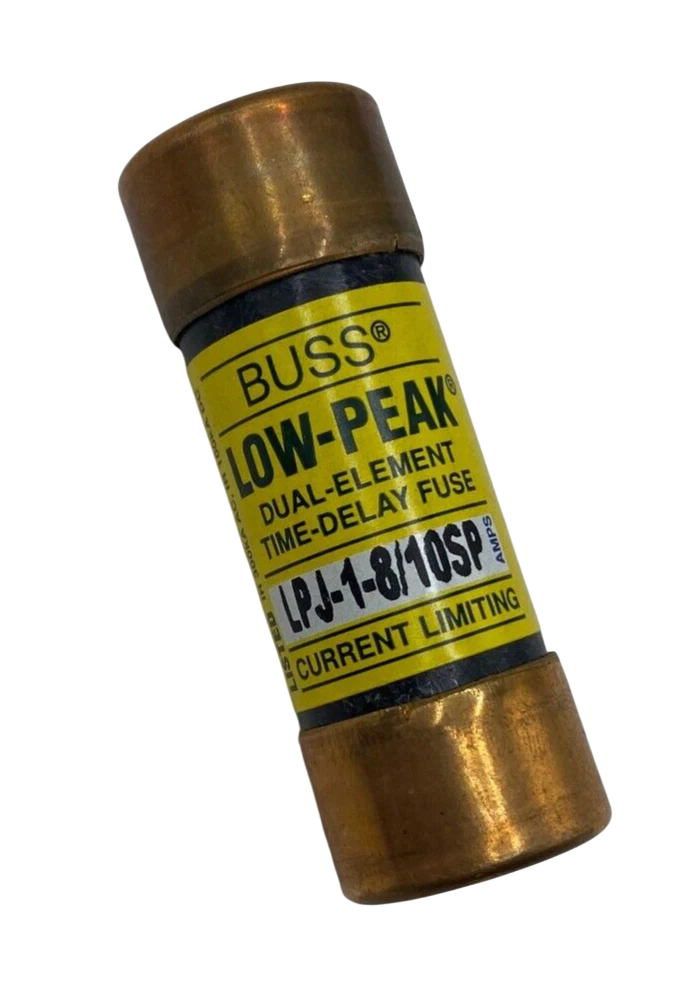

Eaton Bussmann LPJ-1-8/10SP - Class J Time-Delay Fuse 1A 600V (300kA AIC)

Eaton Bussmann LPJ-1-8/10SP is a low voltage time-delay fuse designed for protecting electrical circuits and equipment from overcurrent conditions. It features a 1A current rating and 600V voltage rating with a high 300kA interrupting capacity at 600V for reliable circuit protection. The fuse measures 2-1/4 inches in length with a 0.81-inch diameter and is constructed as a single-barrel Class J fuse with time-delay characteristics. It complies with CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards, ensuring industrial-grade reliability. Typical applications include motor protection, transformer circuits, and industrial control systems where time-delay protection is required to handle temporary overloads without nuisance tripping.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, Class J rating, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 2-1/4 inches length, 0.81 inches diameter
• Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Applications: Motor protection, transformer circuits, industrial control systems
• AIC rating: 300kA@600V
• Class Rating: J
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712522762
• GTIN: 00051712522762
