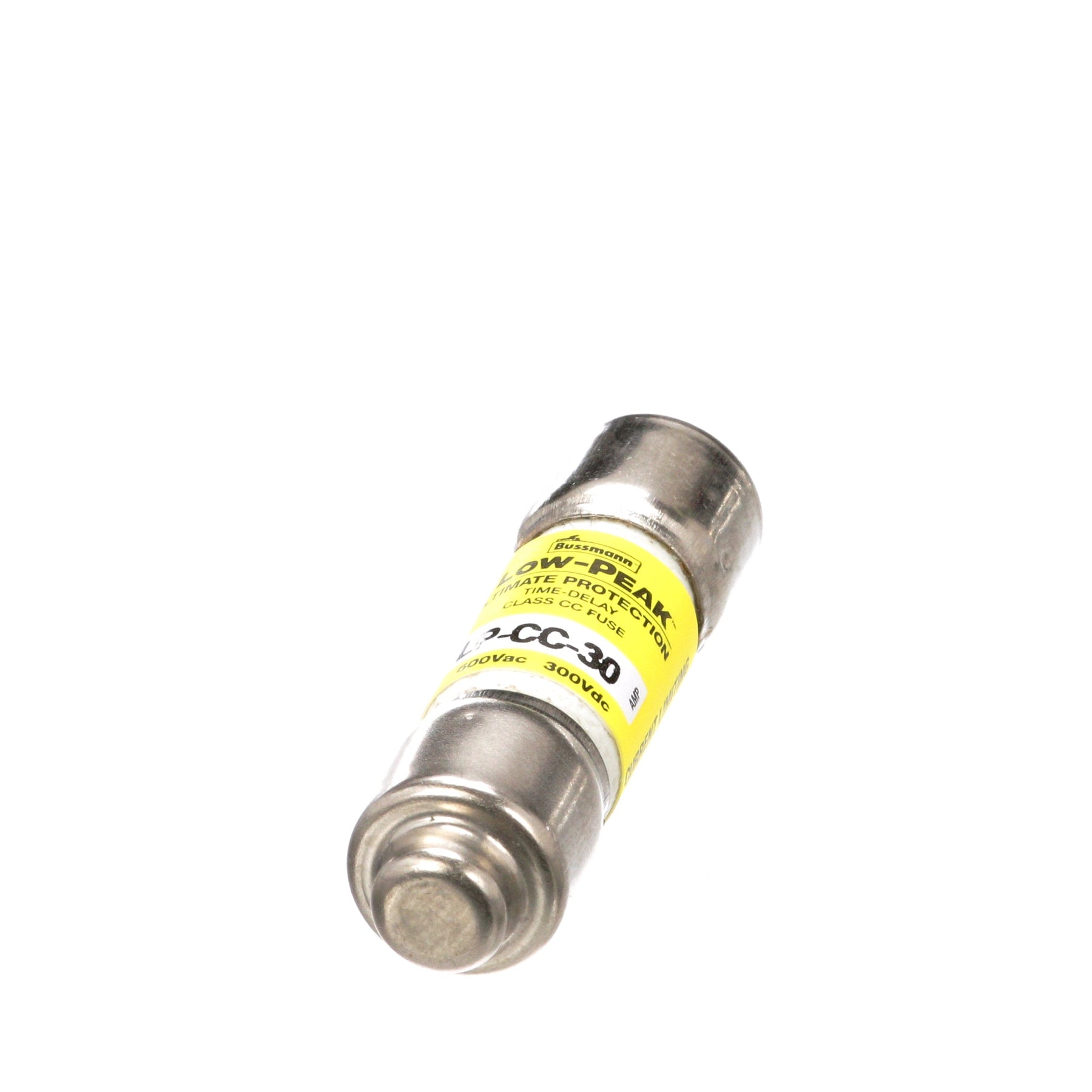

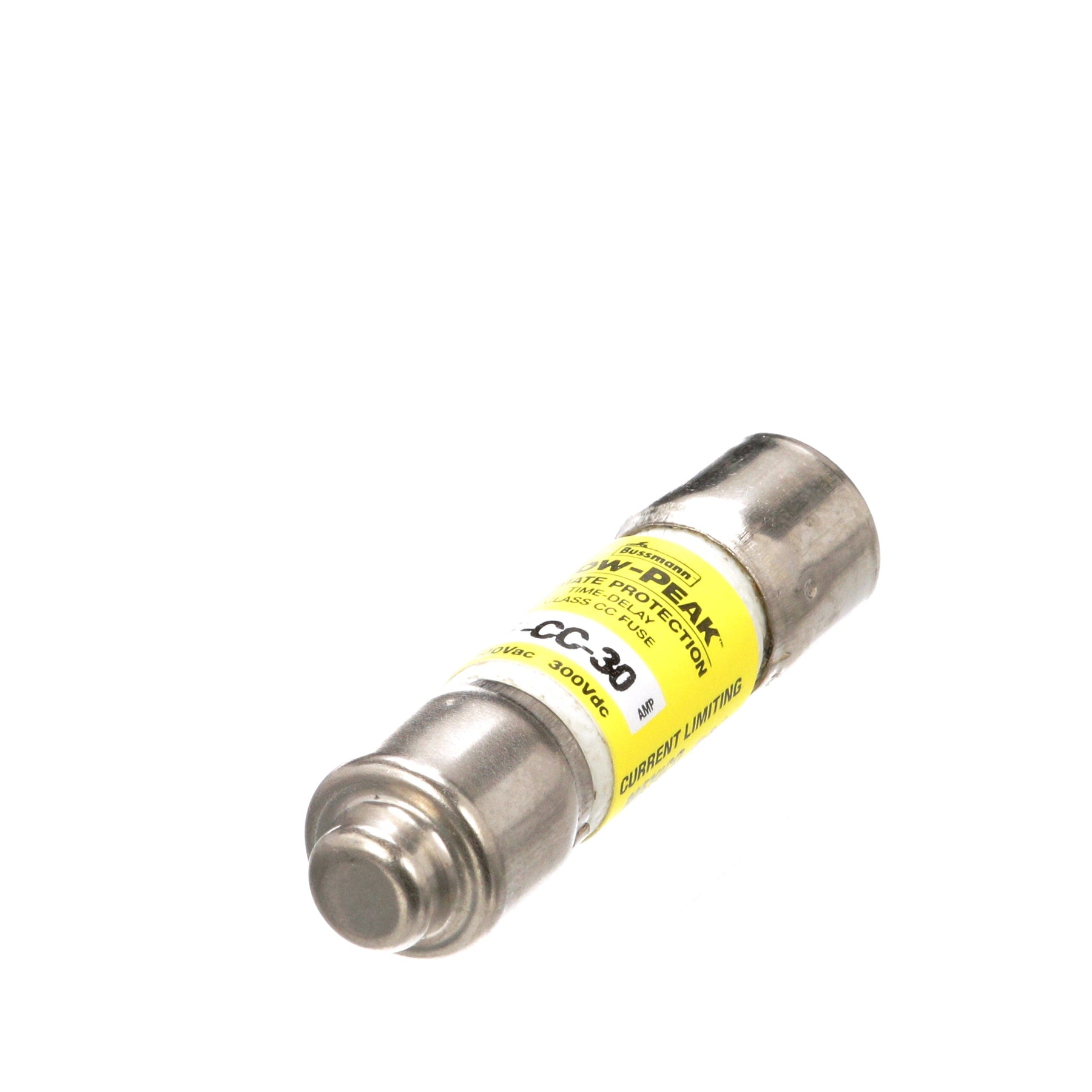

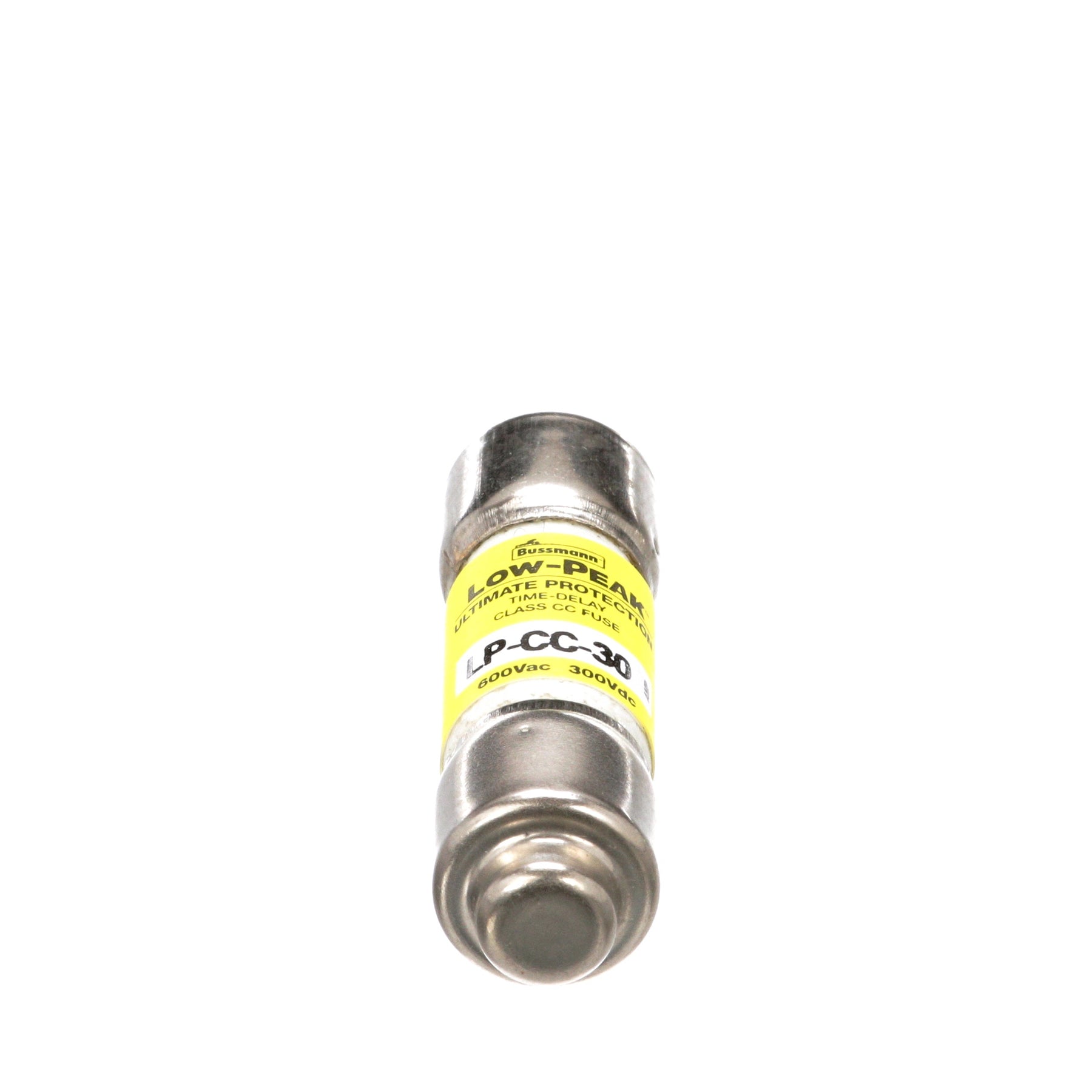

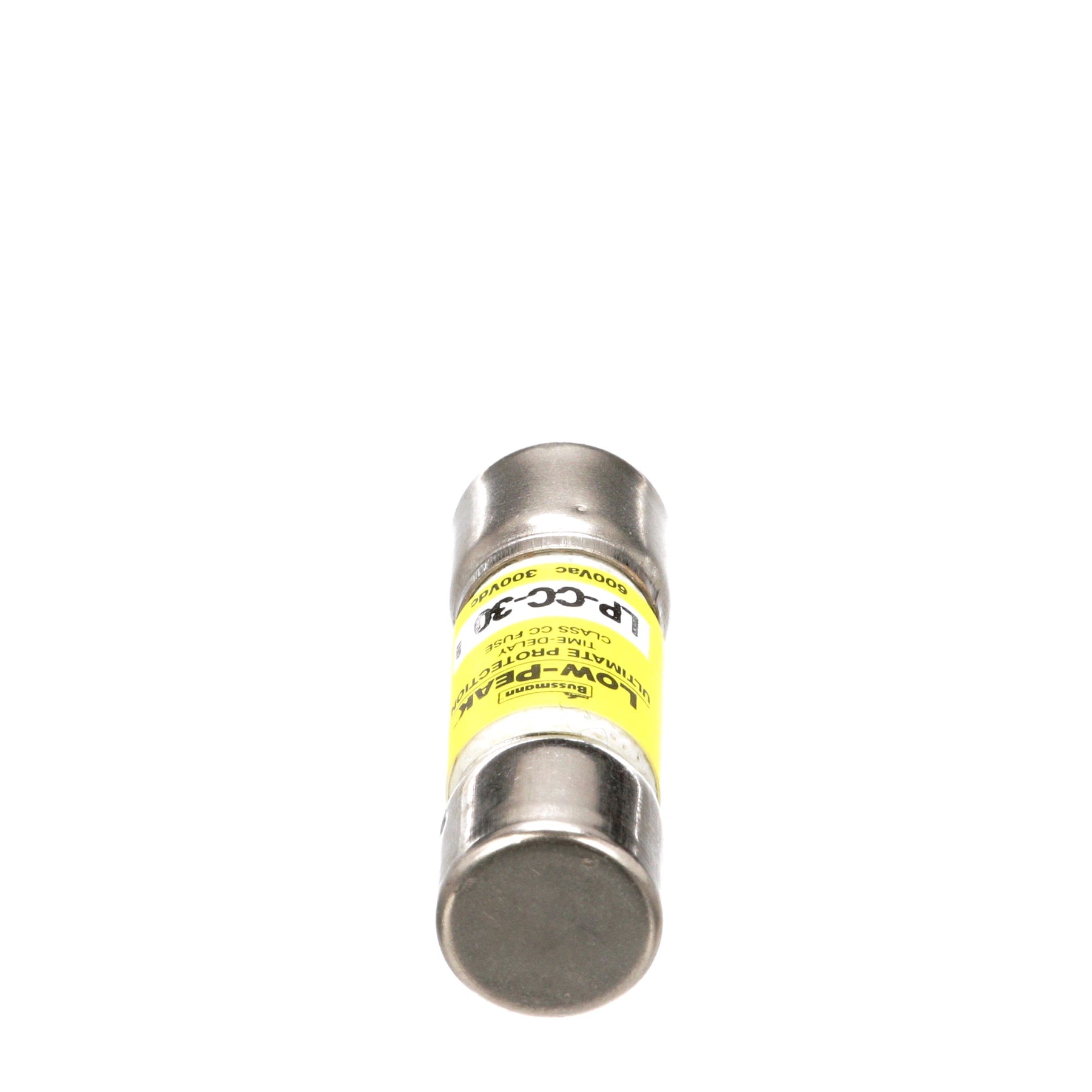

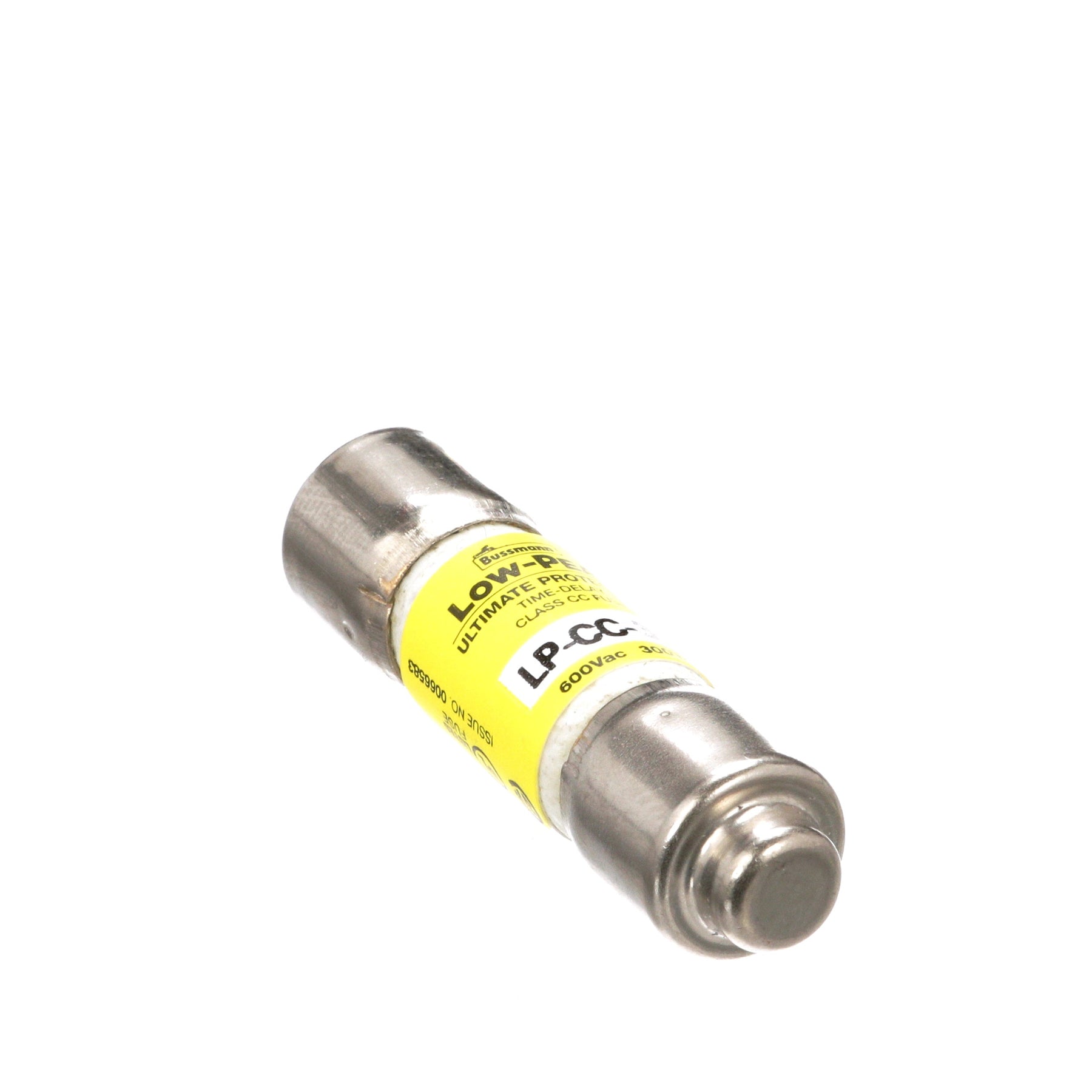

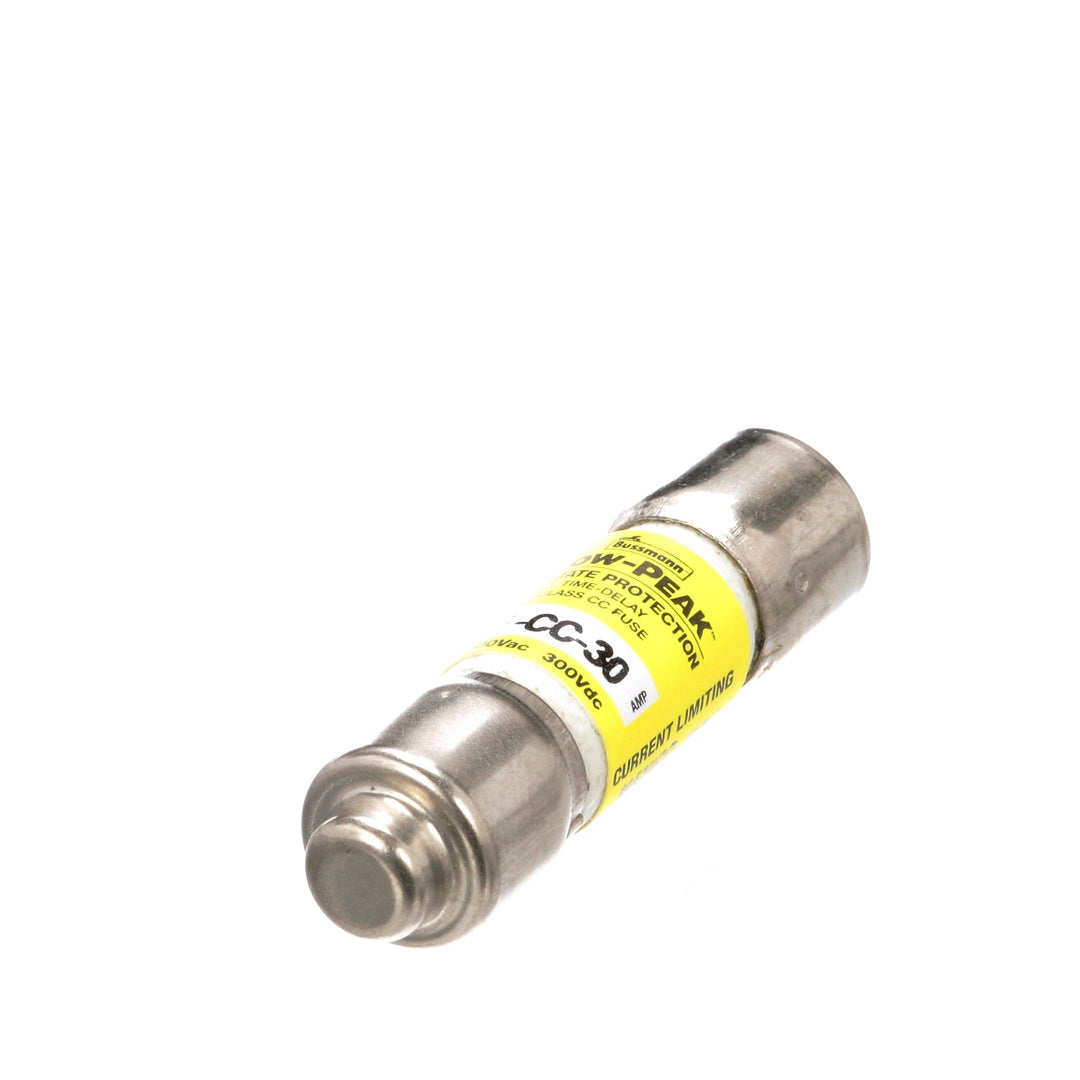

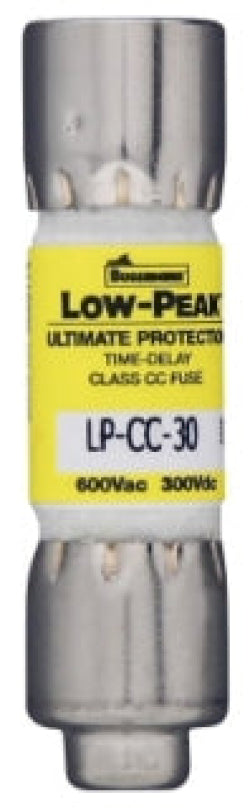

Eaton Bussmann LP-CC-30 - Class CC Fuse 30A 600V (200kA AIC Rating)

Eaton Bussmann LP-CC-30 is a Low-Peak time-delay, Class CC fuse designed for branch circuit protection in industrial control systems. It features a 30A current rating and 600V AC voltage rating with a high 200kA interrupting capacity at 600V AC for reliable fault protection. The fuse construction includes a single-barrel design with 0.41 inch diameter and 1-1/2 inch length, weighing 1 lb, featuring current-limiting characteristics to protect against short circuits. It complies with UL 248-4, CSA Class 1422-02, and CE standards for industrial safety requirements. Typical applications include motor control centers, industrial control panels, and power distribution equipment where coordinated protection is essential.

Key Features & Specifications

• Type: Low-Peak time-delay, current-limiting fuse, Class CC
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 1-1/2 inch length, 0.41 inch diameter
• Standards: UL 248-4, CSA Class 1422-02, CE
• Applications: Industrial control systems, motor control centers, power distribution
• AIC rating: 200kA@600V AC
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Certification: CE/UL-248-4 Guide JDDZ/CSA Class 1422-02

Product Identification

• UPC: 051712180313
• GTIN: 00051712180313
