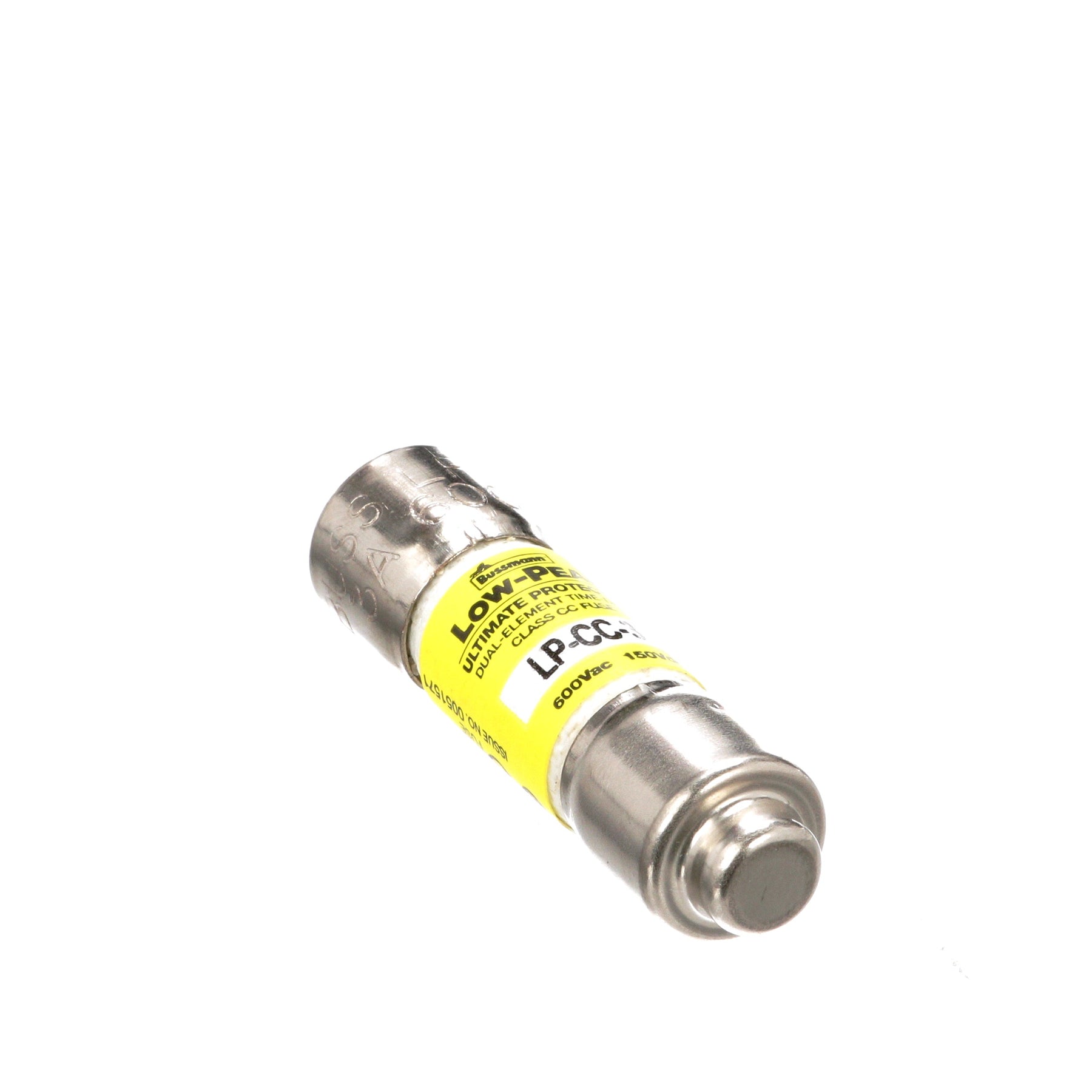

Bussmannn LP-CC-3 - Low-Peak Fuse 3A 600V (200kA AIC)

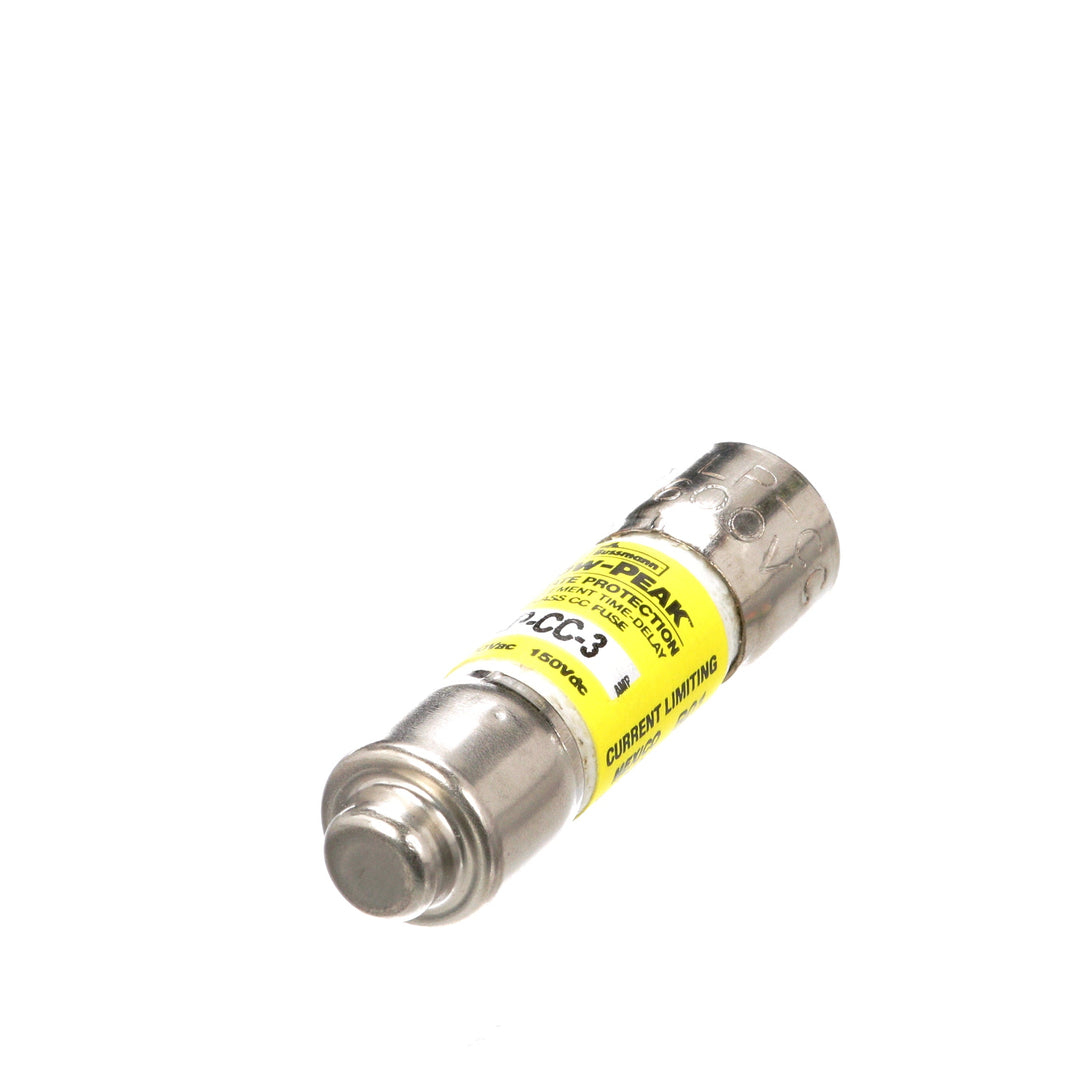

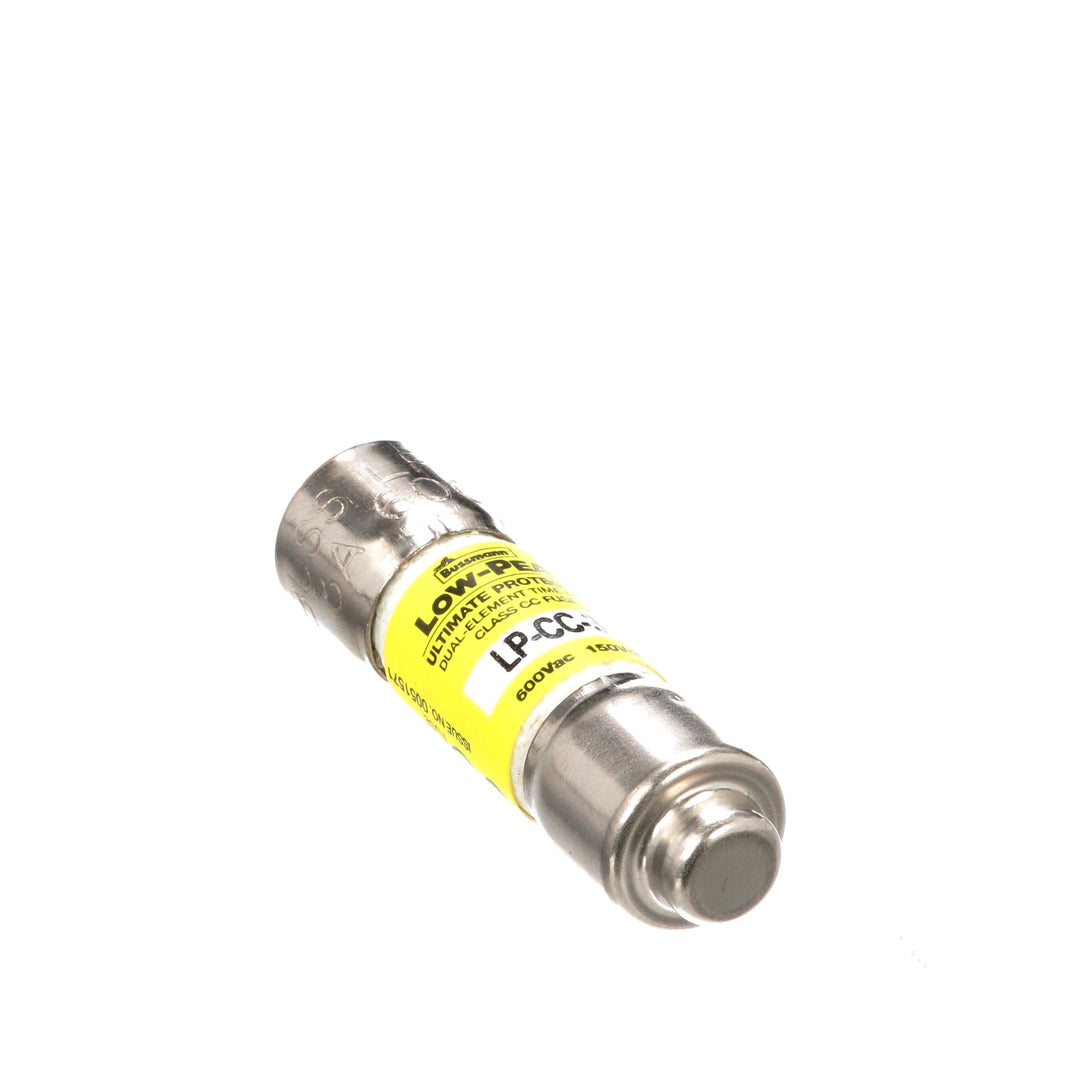

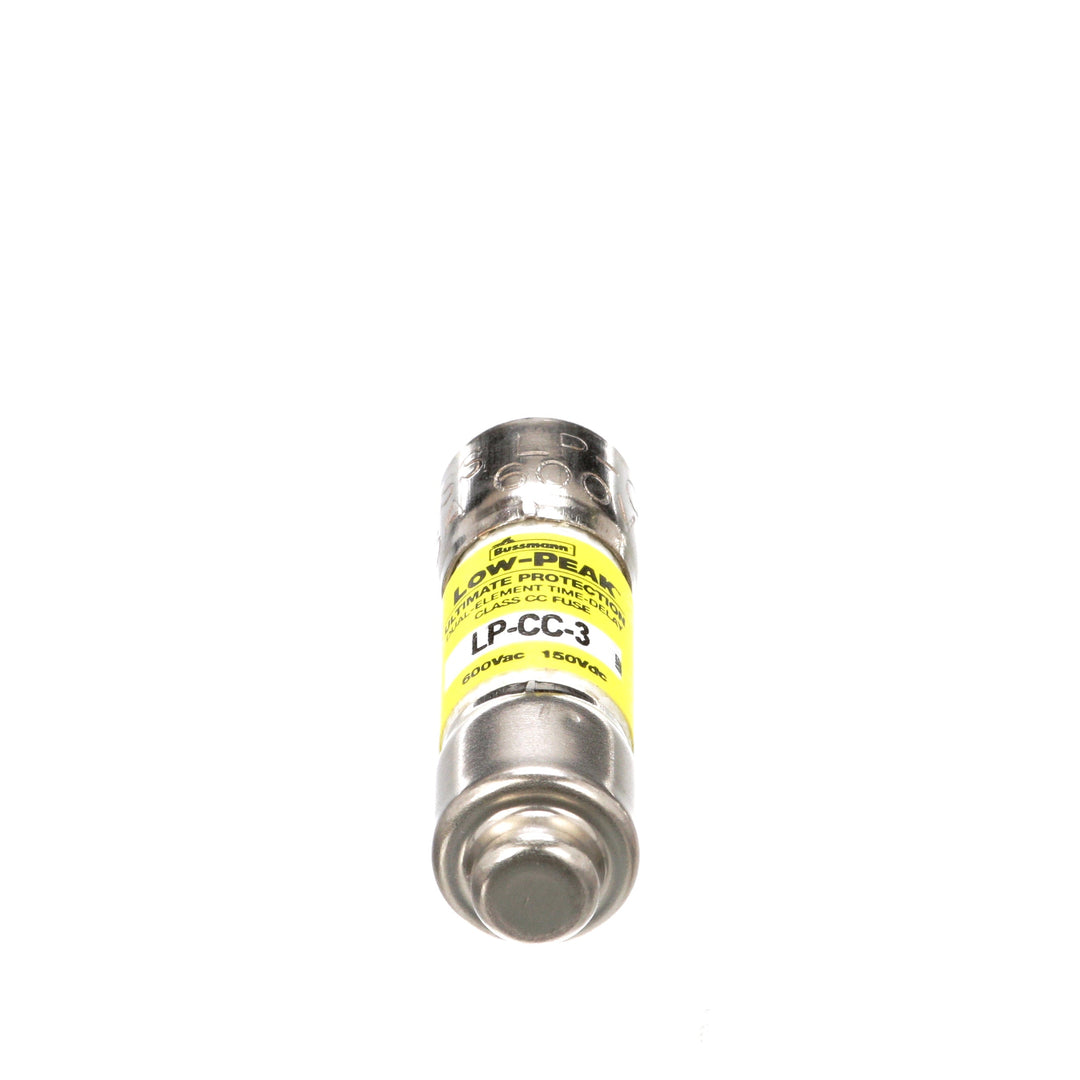

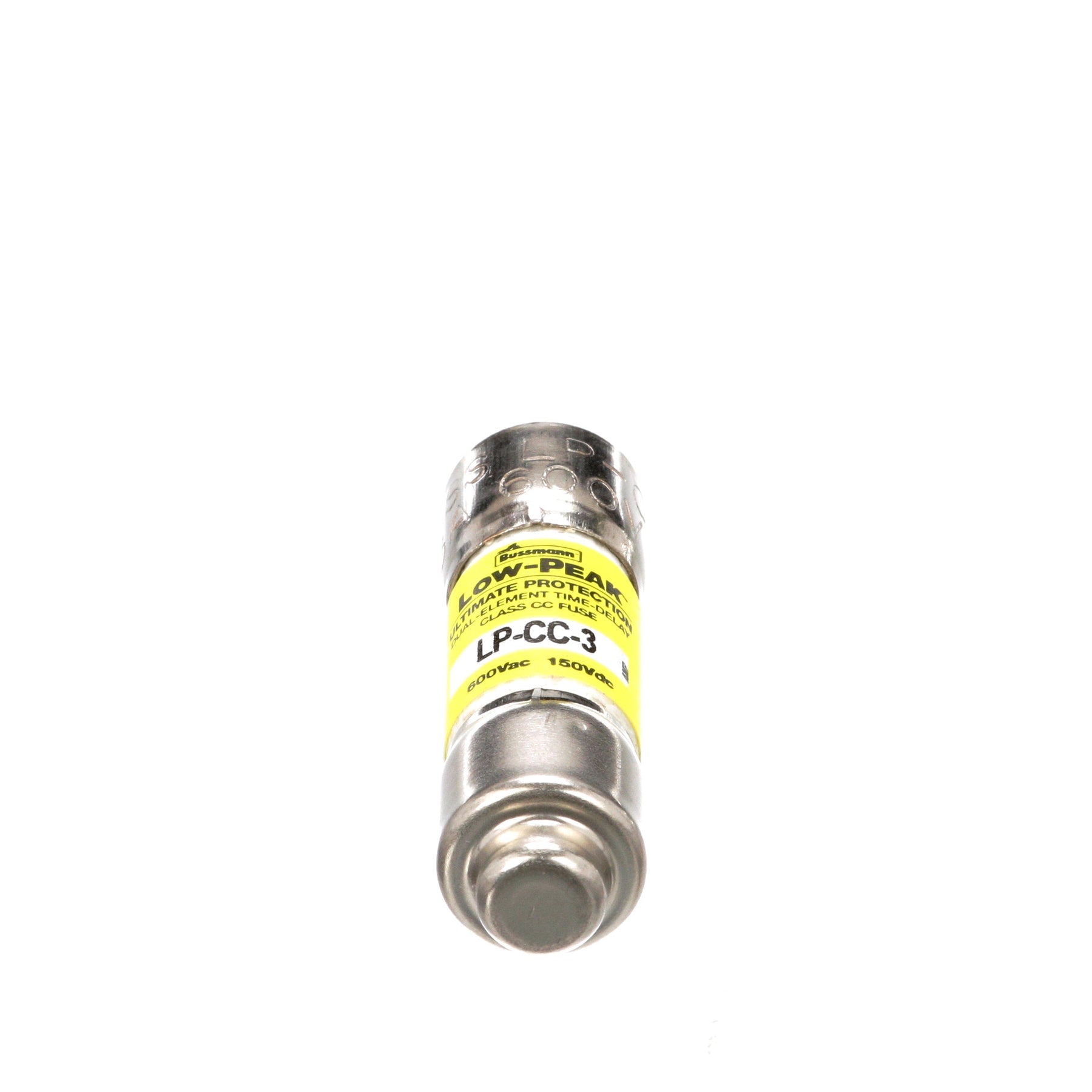

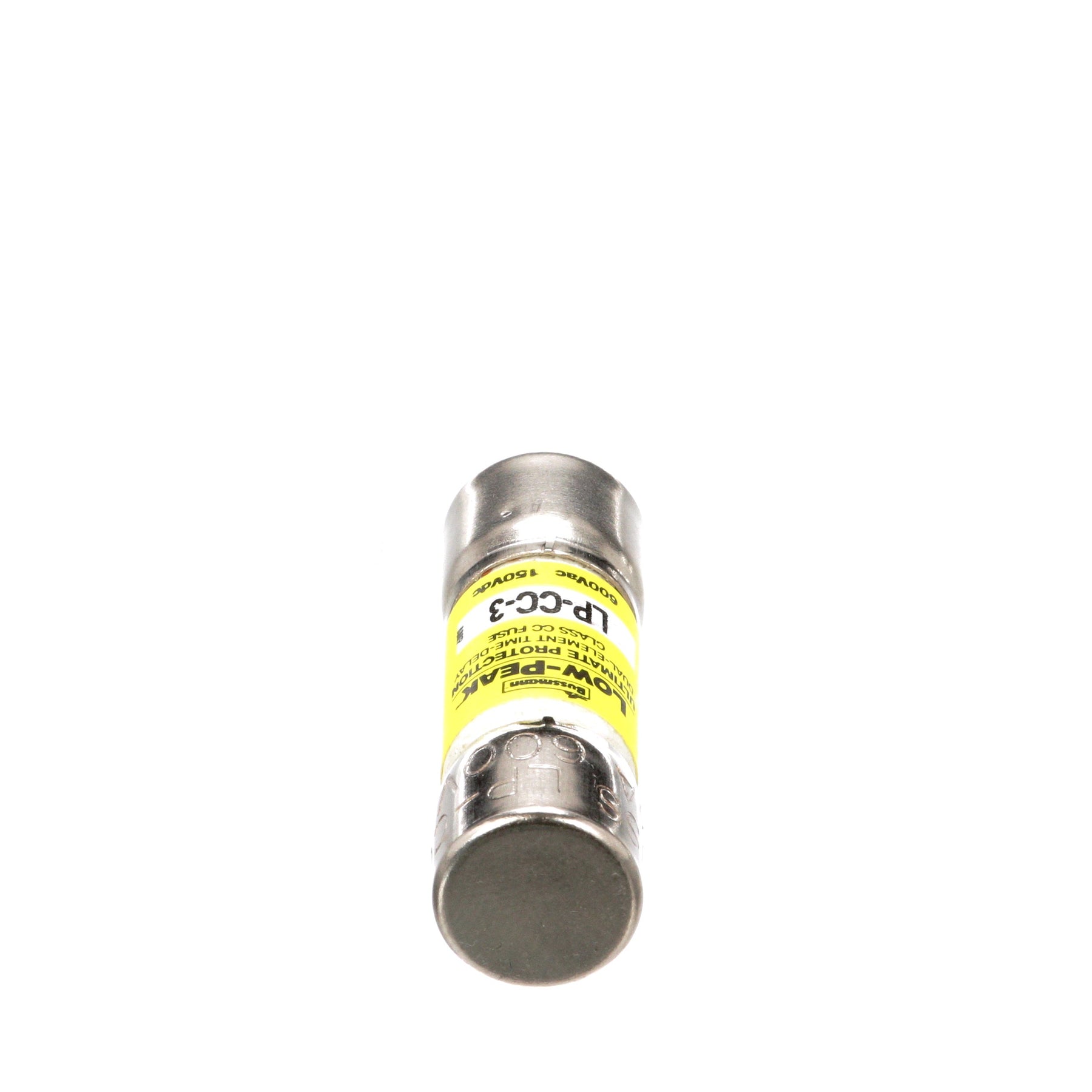

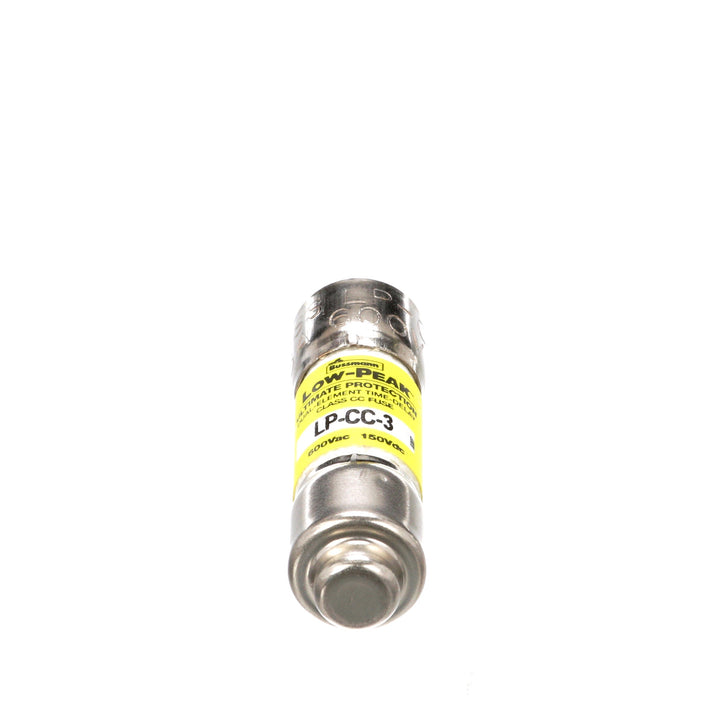

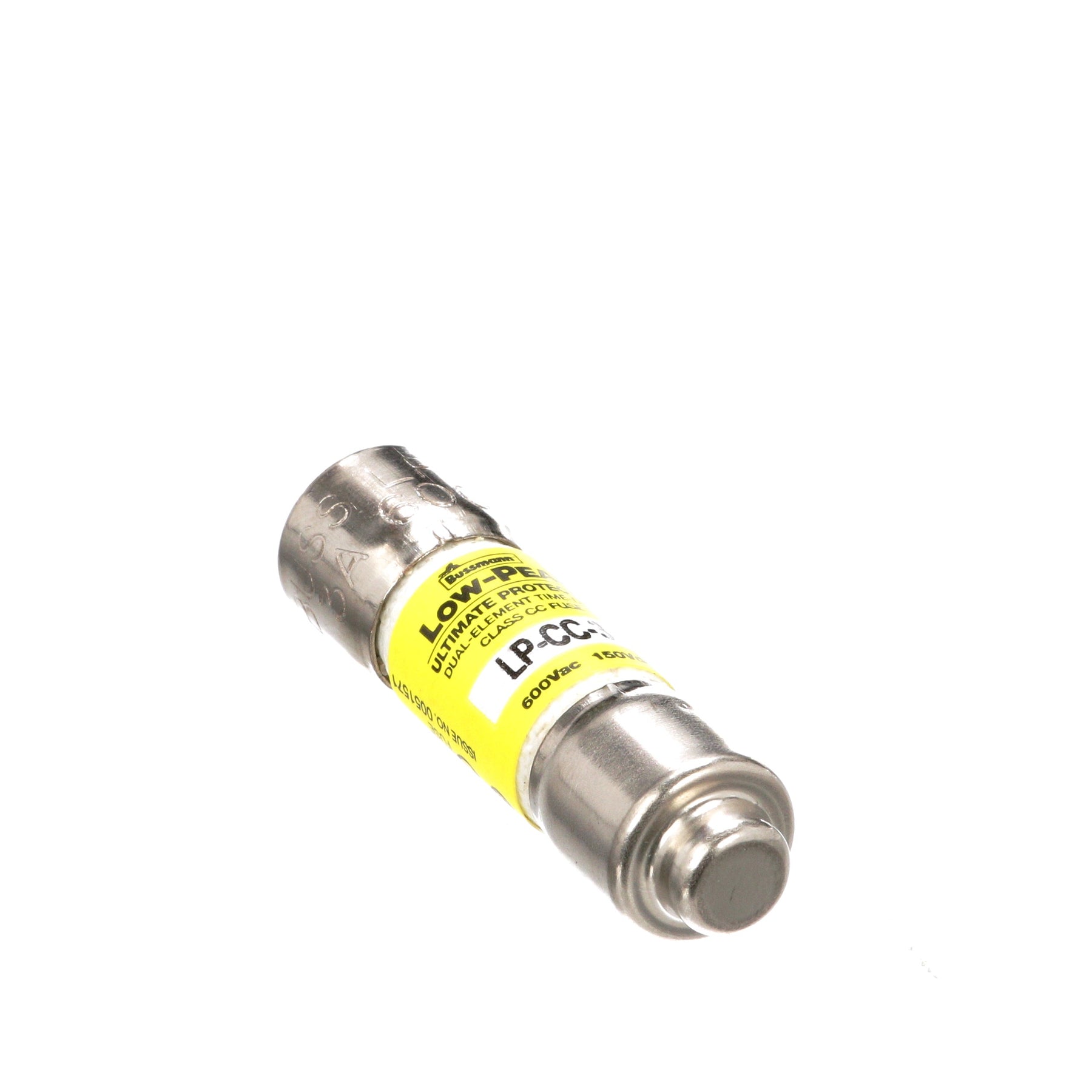

Bussmannn LP-CC-3 is a low-voltage current-limiting fuse designed for circuit protection in industrial applications. It features a 600V AC rating with a 3A current capacity and 200kA interrupting rating at 600V for reliable short-circuit protection. The compact cylindrical design measures 1-1/2 inches in length with a 0.41-inch diameter and 1 lb weight, constructed as a single-barrel Class CC fuse. Certified to UL-248-4, CSA Class 1422-02, and CE standards, this Low-Peak series fuse provides selective coordination for motor control centers, transformers, and power distribution systems.

Key Features & Specifications

• Type: LP-CC current-limiting fuse with time-delay characteristics
• Voltage Rating: 600V AC
• Current Rating: 3A
• Dimensions: 1-1/2 in length x 0.41 in diameter
• Standards: UL-248-4, CSA Class 1422-02, CE
• Applications: Motor controls, transformers, power distribution
• Class Rating: CC
• Barrels: 1
• AIC rating: 200kA@600V
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712180290
• GTIN: 00051712180290
