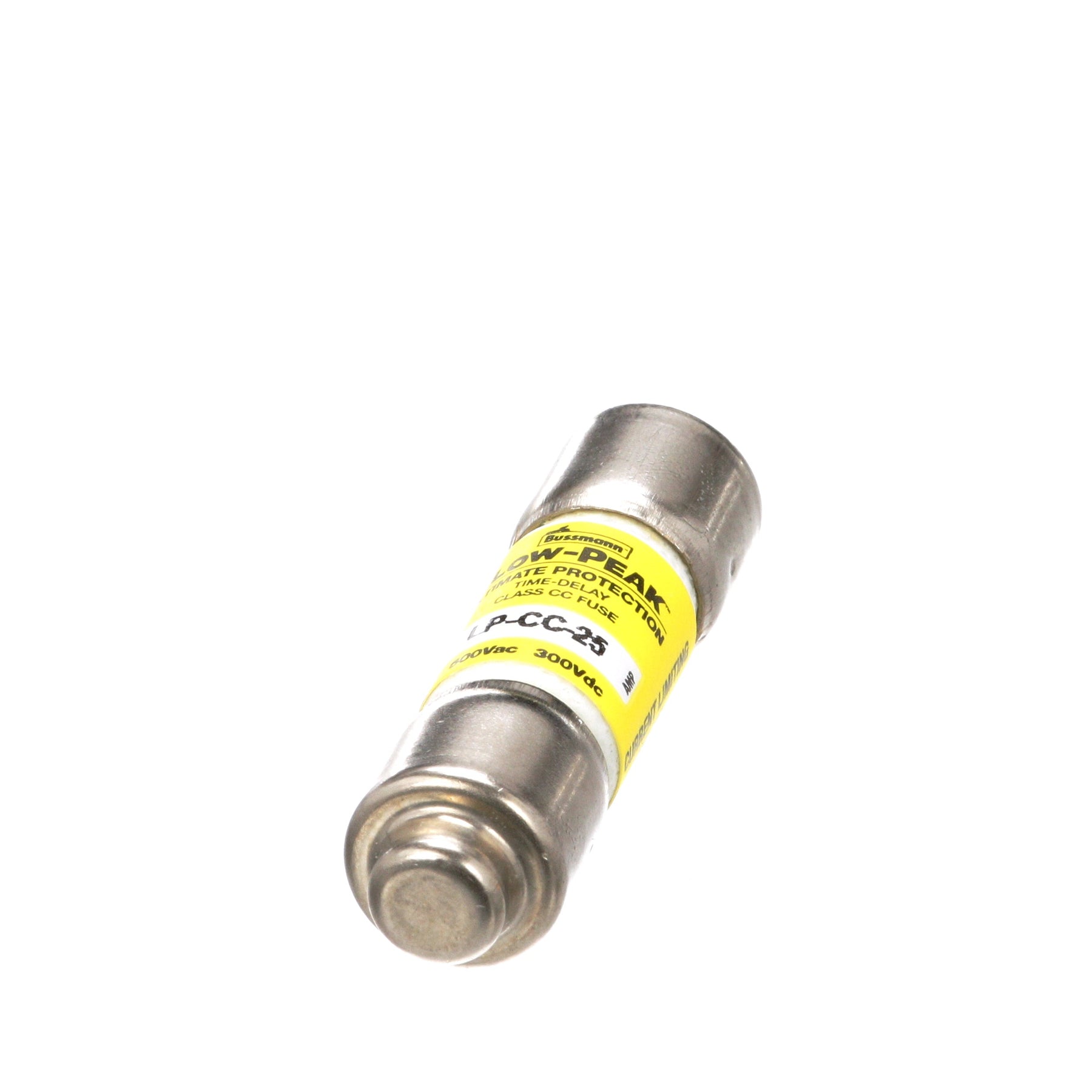

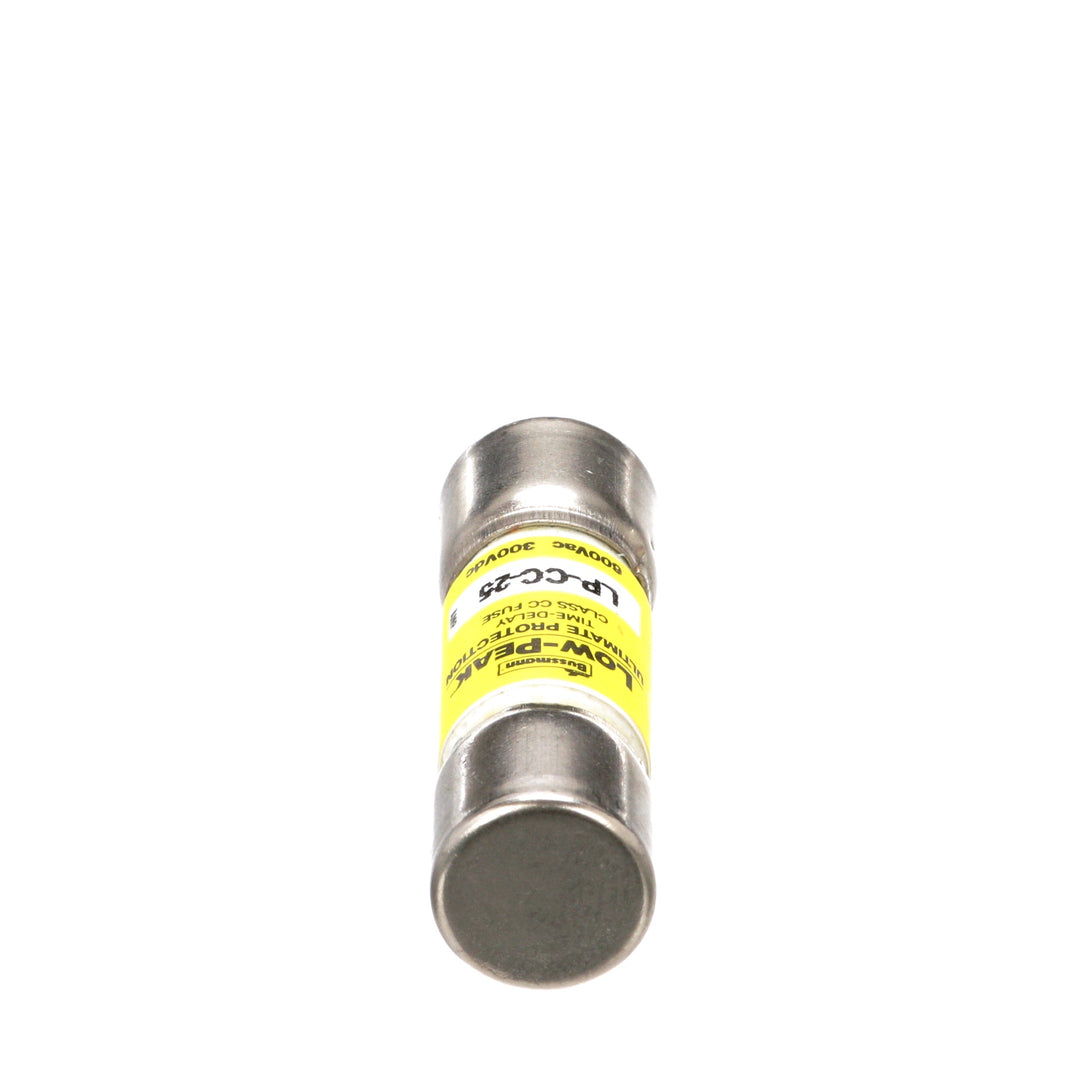

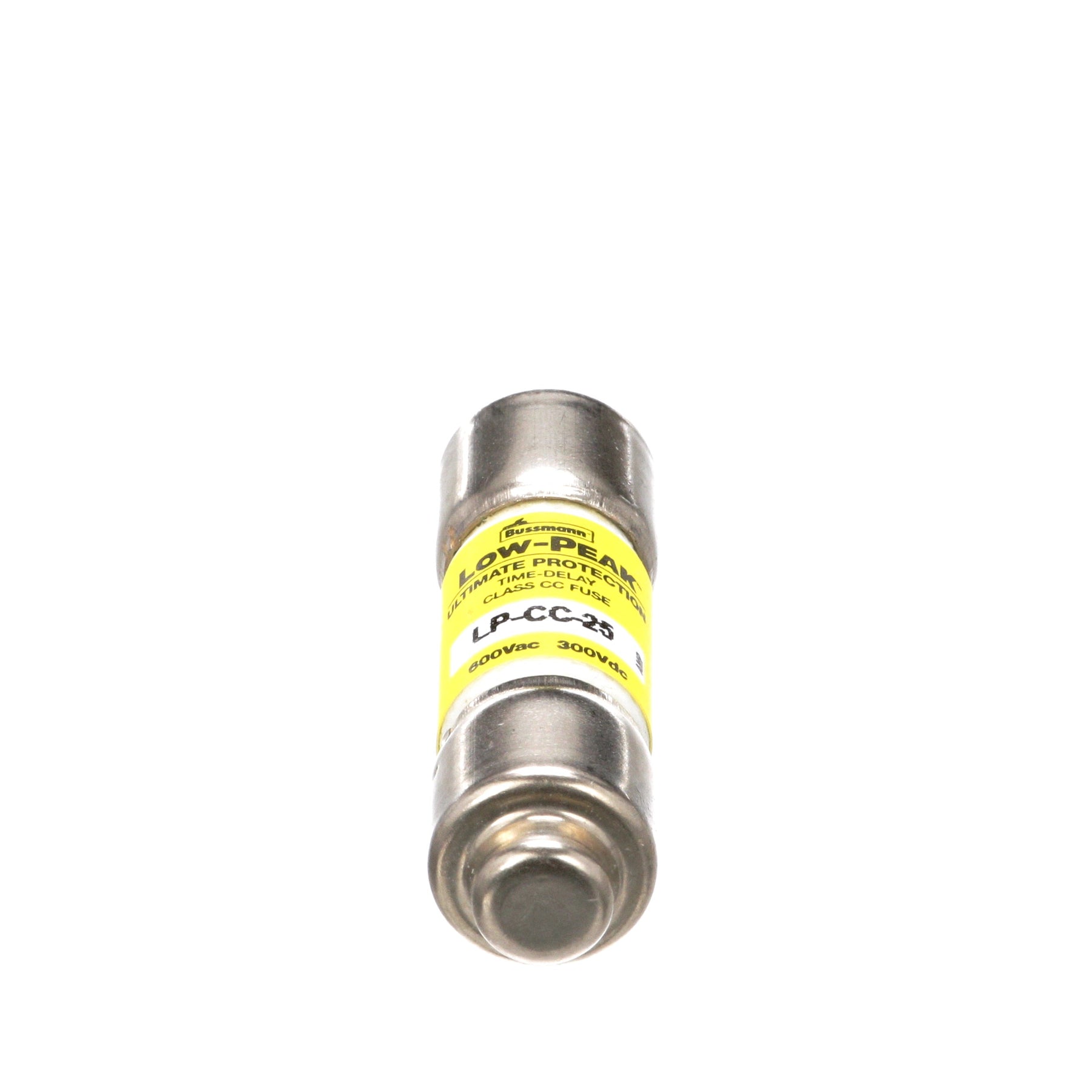

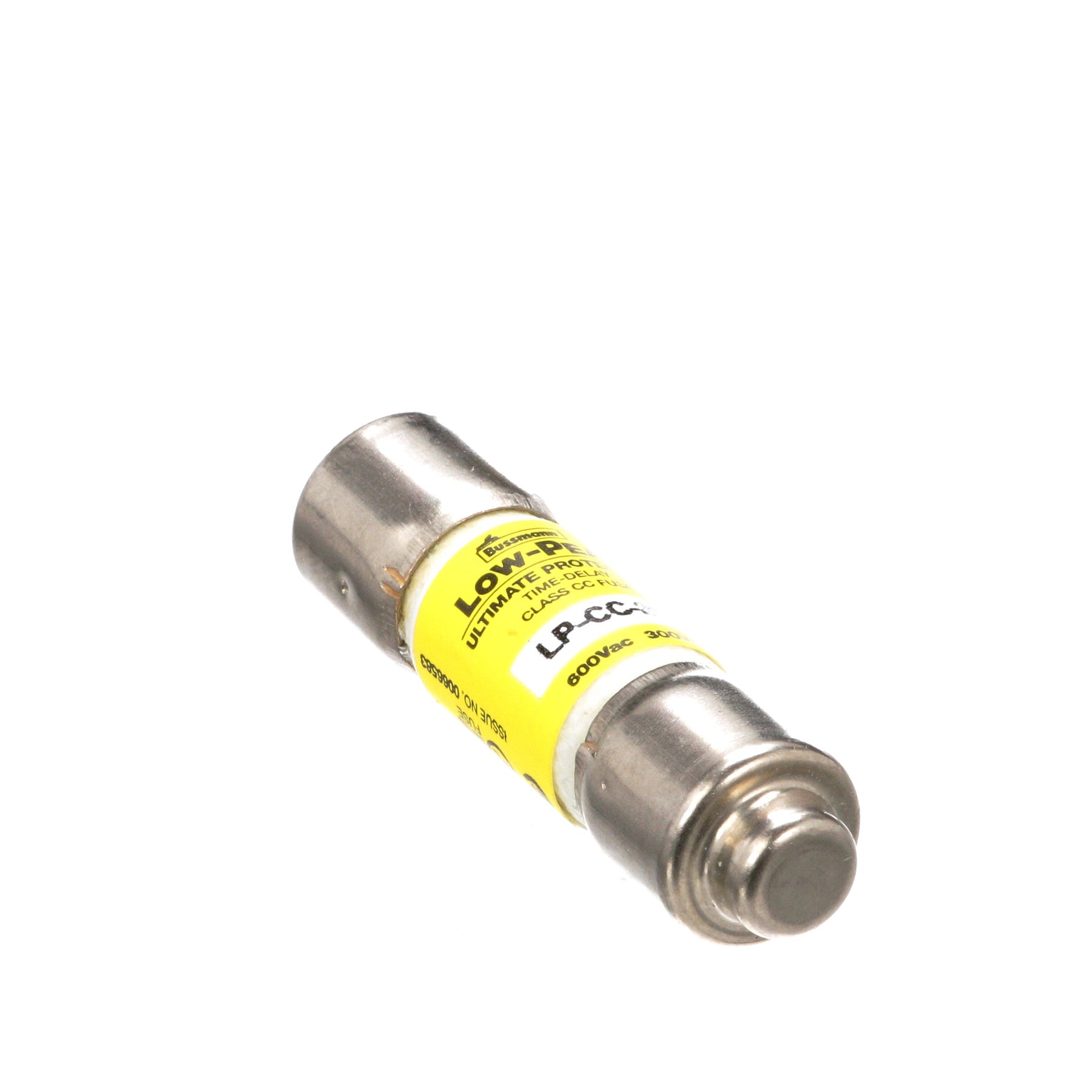

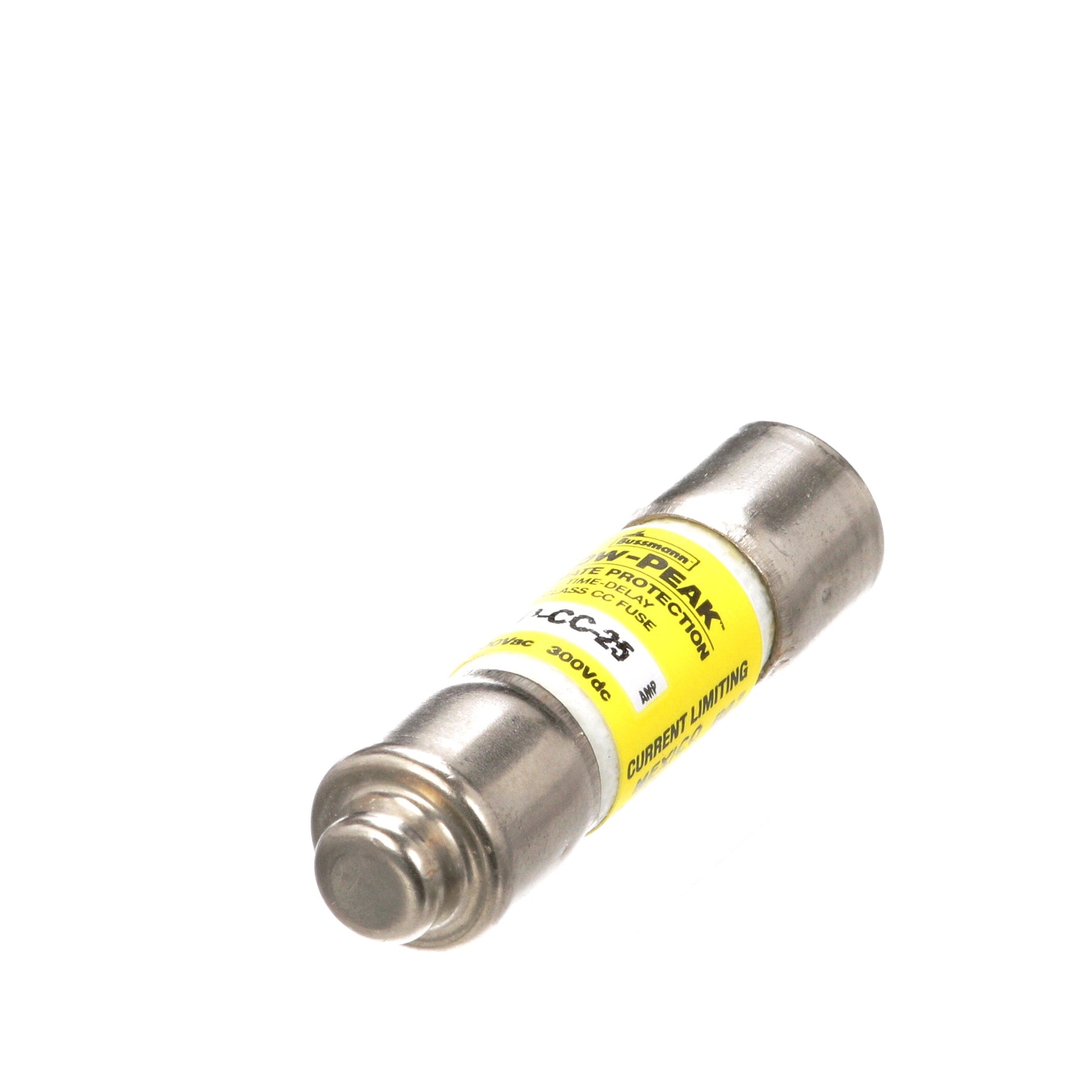

Bussmann LP-CC-25 - Class CC Time-Delay Fuse 25A 600V (200kA AIC Rating)

The Bussmann LP-CC-25 is a Class CC, Low-Peak time-delay fuse designed to provide superior short-circuit and overload protection for electrical components and conductors. It features a 25A current rating and a 600V AC voltage rating, with a high 200kA interrupting capacity at rated voltage to safely clear severe faults. The fuse is constructed as a single-barrel device with a compact 1-1/2 inch body length and 0.41 inch diameter, weighing 1 lb for straightforward installation. It complies with UL 248-4, CSA Class 1422-02, and CE standards, ensuring reliable performance in demanding industrial environments. Typical applications include protection of motor branch circuits, transformers, and other equipment where current limitation and time-delay characteristics are required.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, Class CC, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 25A
• Dimensions: 1-1/2 inch body length, 0.41 inch diameter
• Standards: UL 248-4, CSA Class 1422-02, CE certified
• Applications: Motor branch circuits, transformer protection, industrial control systems
• AIC rating: 200kA @ 600V AC
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Certification: CE/UL-248-4 Guide JDDZ/CSA Class 1422-02

Product Identification

• UPC: 051712180283
• GTIN: 00051712180283
