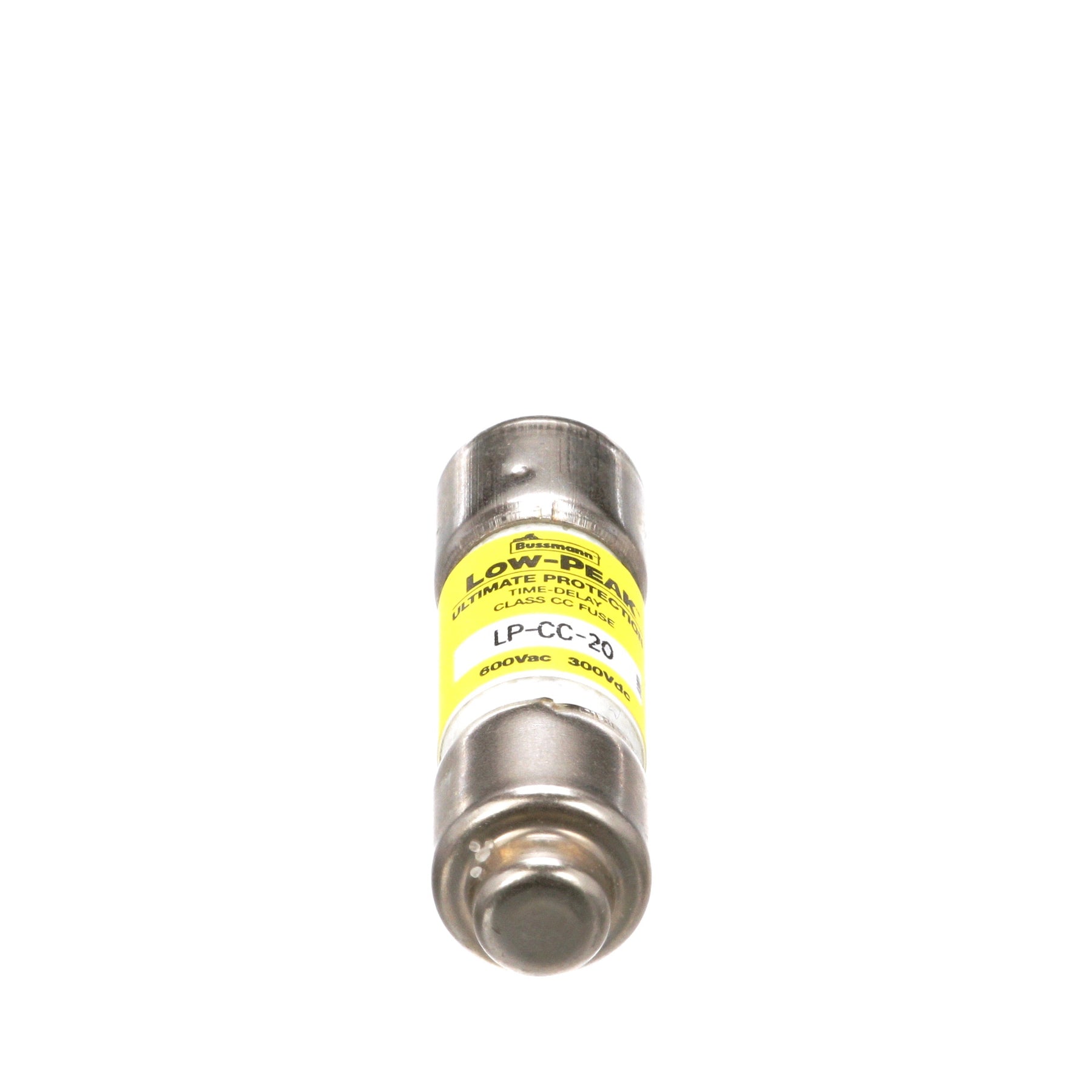

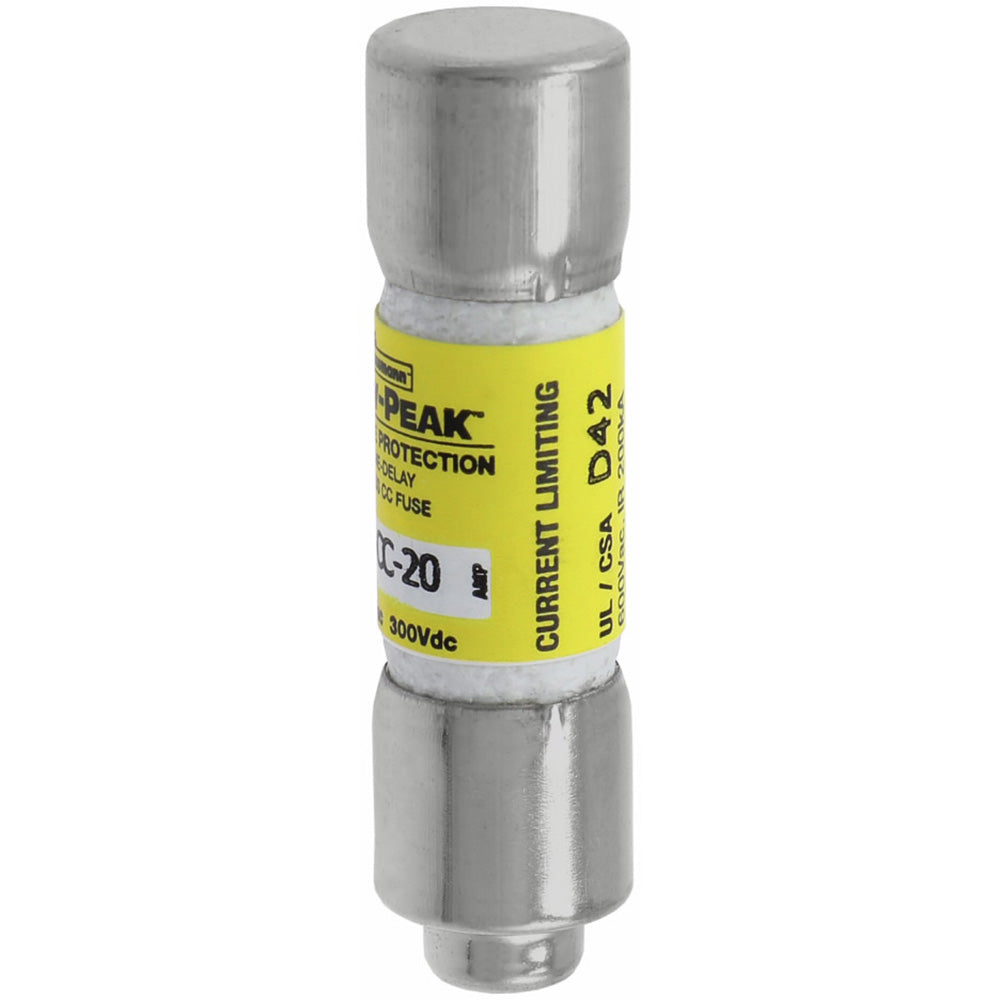

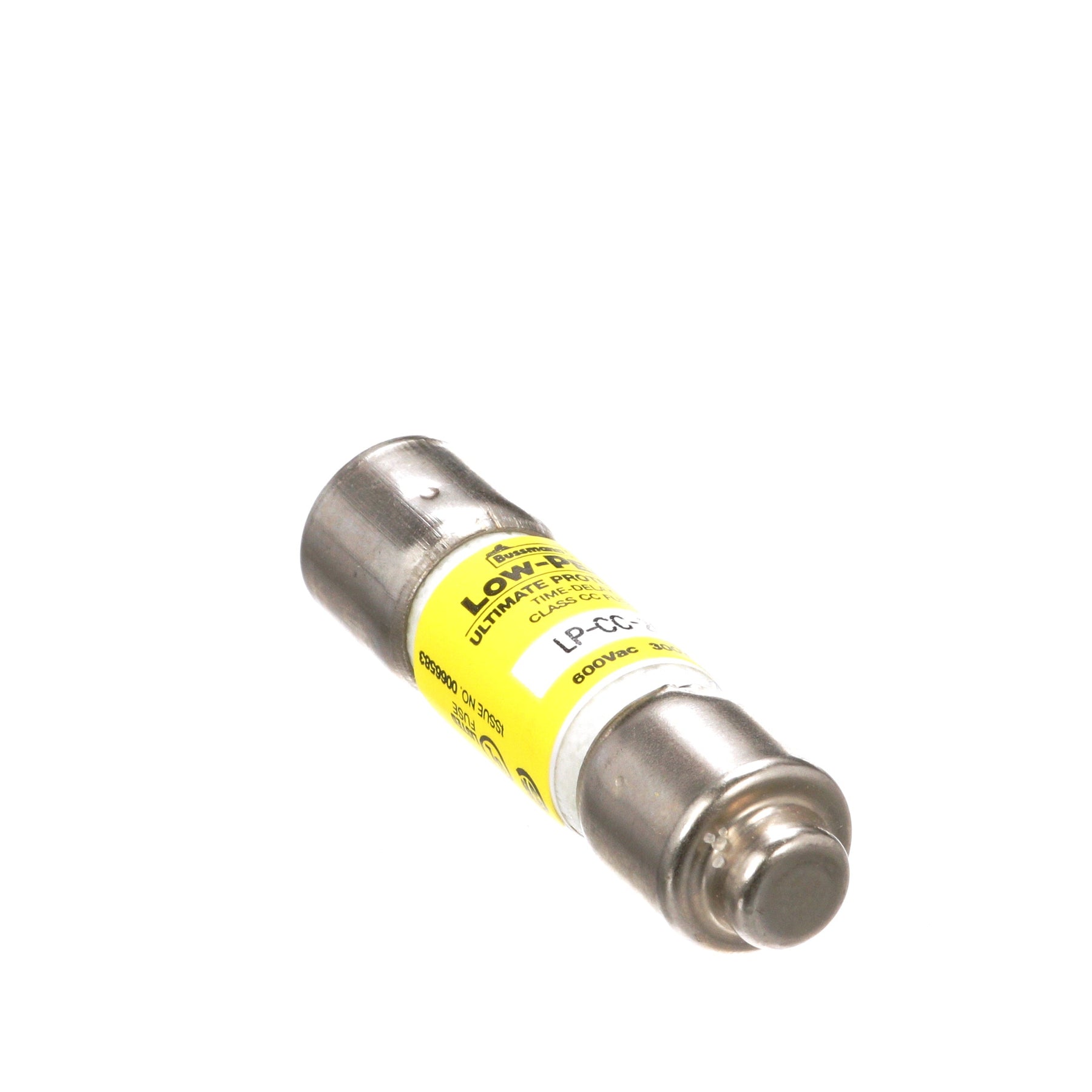

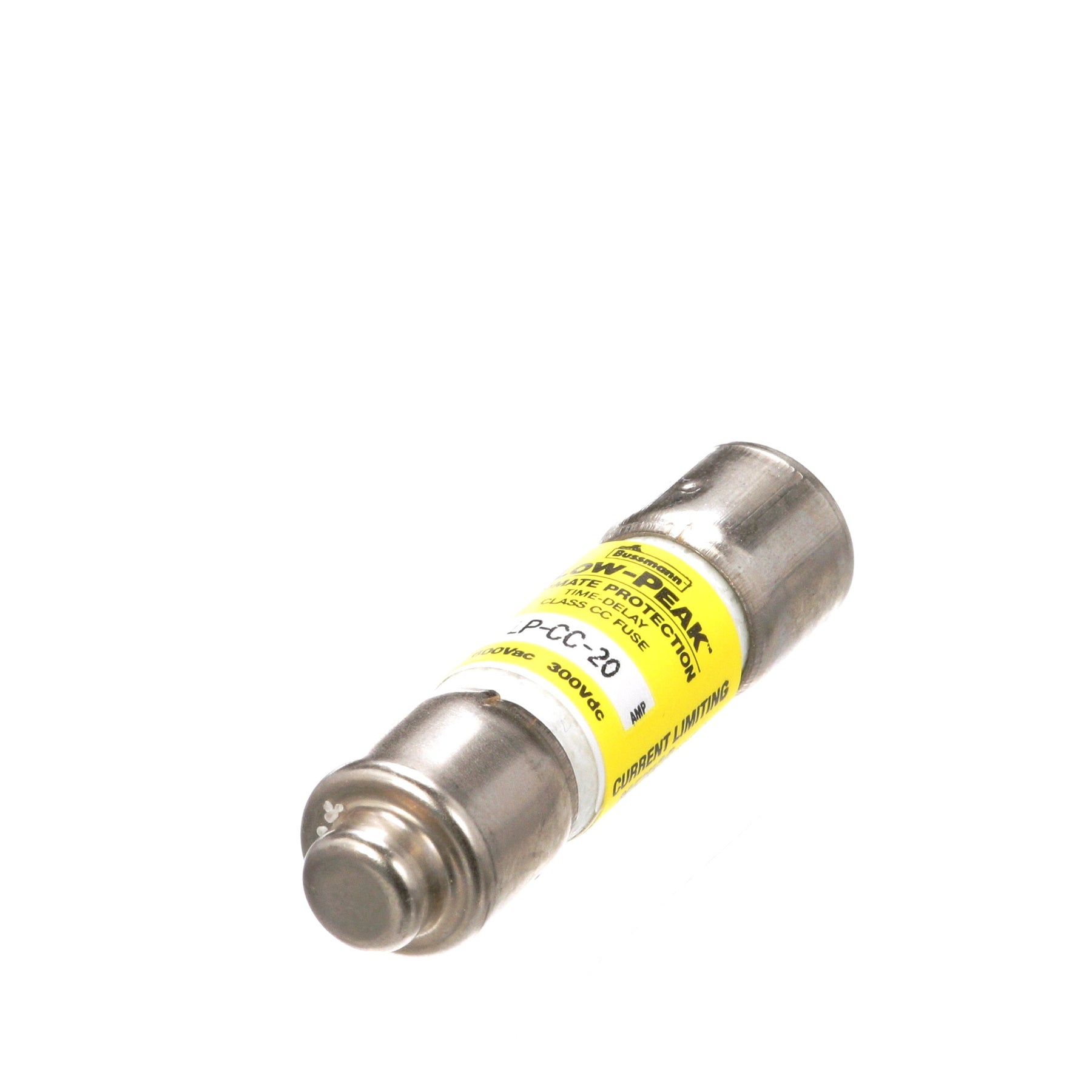

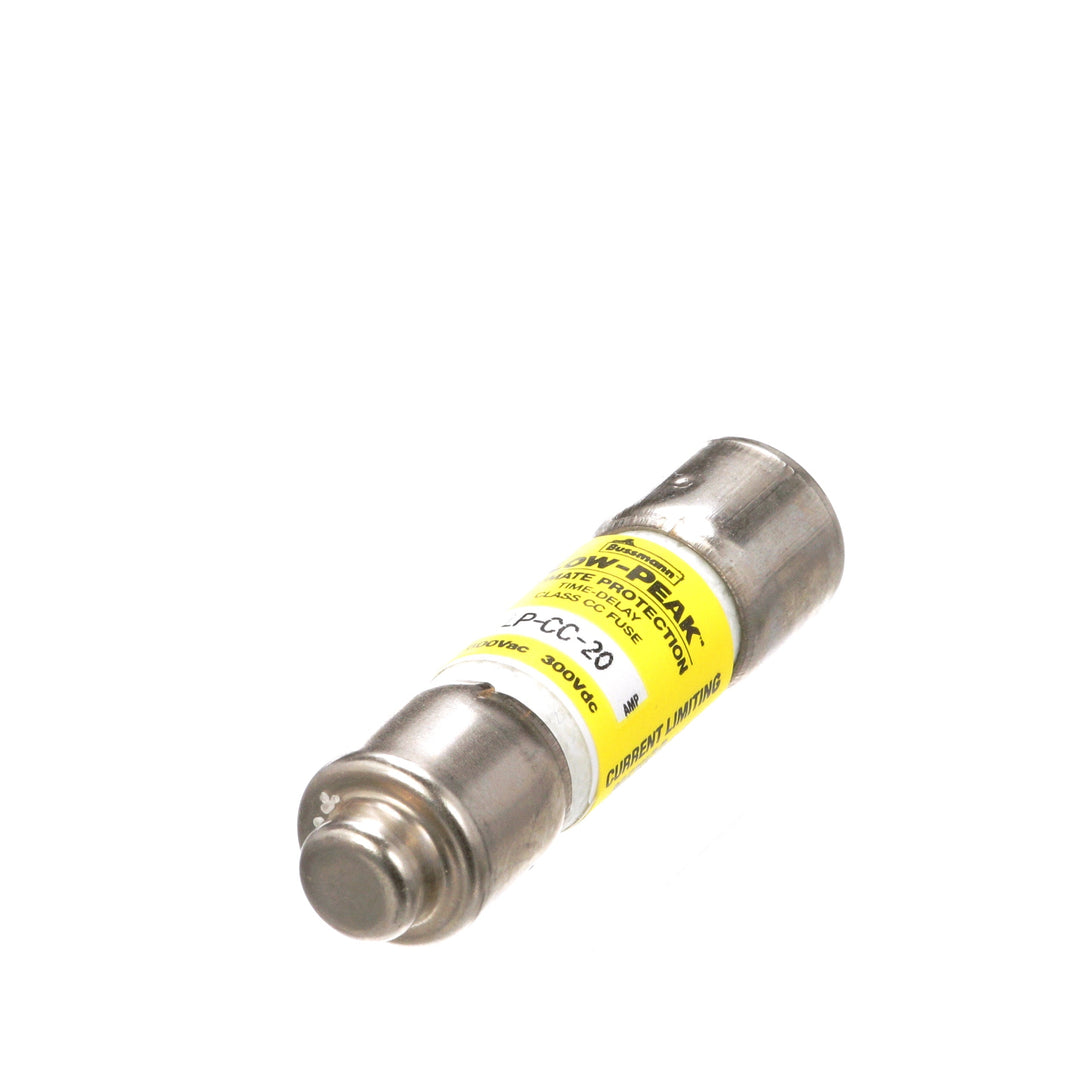

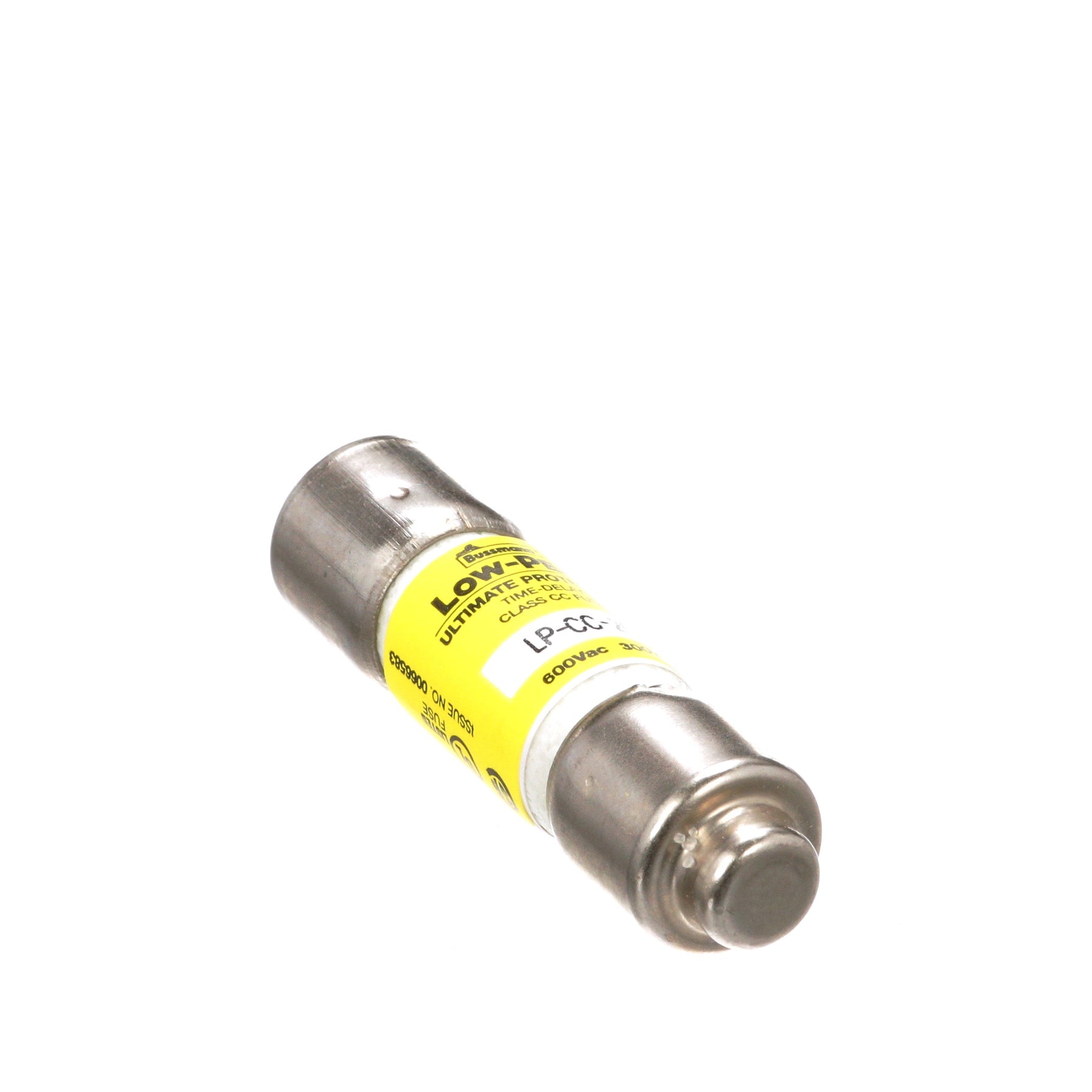

Bussmann LP-CC-20 - Class CC Fuse 20A 600V (200kA AIC)

Bussmann
Price
Save $71.73
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann LP-CC-20 is a Low-Peak, Class CC fuse designed for branch circuit protection in industrial control panels and motor circuits. It provides a 20A current rating and a 600V voltage rating, featuring a compact, single-barrel construction with dimensions of 1.5 in x 0.41 in x 0.41 in and a weight of 0.15 lb. This fuse is certified to UL-248-4 and CSA Class 1422-02 standards and offers a high 200kA interrupting capacity at 600V for reliable short-circuit protection. Typical applications include safeguarding control transformers, solenoids, and other general purpose circuits where current limitation and component protection are critical.

Key Features & Specifications
  • Type: Low-Peak, time-delay, current-limiting fuse with Class CC dimensions
  • Voltage Rating: 600V AC/DC
  • Current Rating: 20A
  • Dimensions: 1.5 in (Length) x 0.41 in (Height) x 0.41 in (Width)
  • Standards: CE, UL-248-4 Guide JDDZ, CSA Class 1422-02
  • Applications: Industrial control circuits, motor branch circuits, control transformers
  • AIC rating: 200,000 Amps @ 600V
  • Class Rating: CC
  • Barrels: 1
  • Diameter: 0.41 in
  • Weight: 0.15 lb


Product Identification
  • UPC: 051712180276
  • GTIN: 00051712180276
