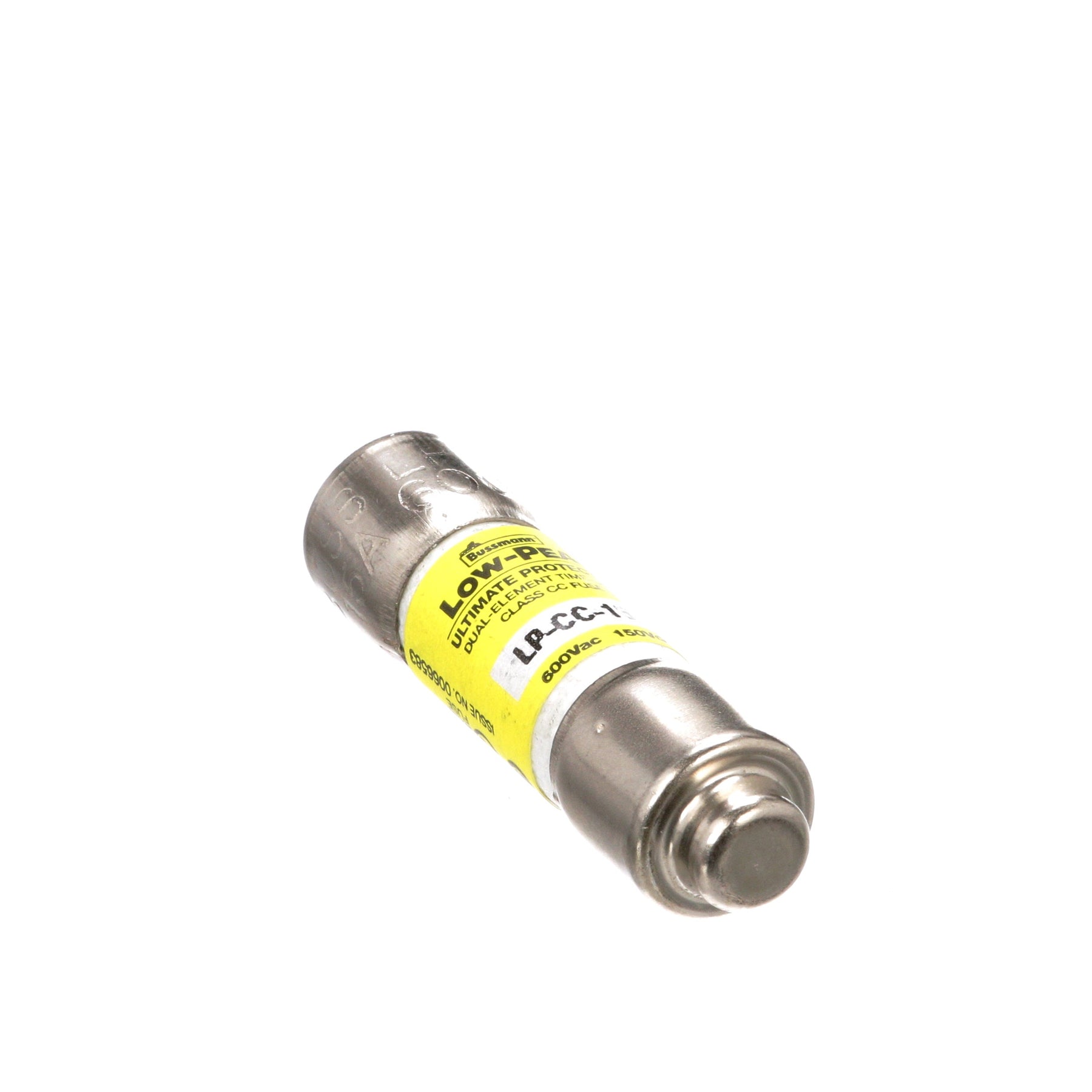

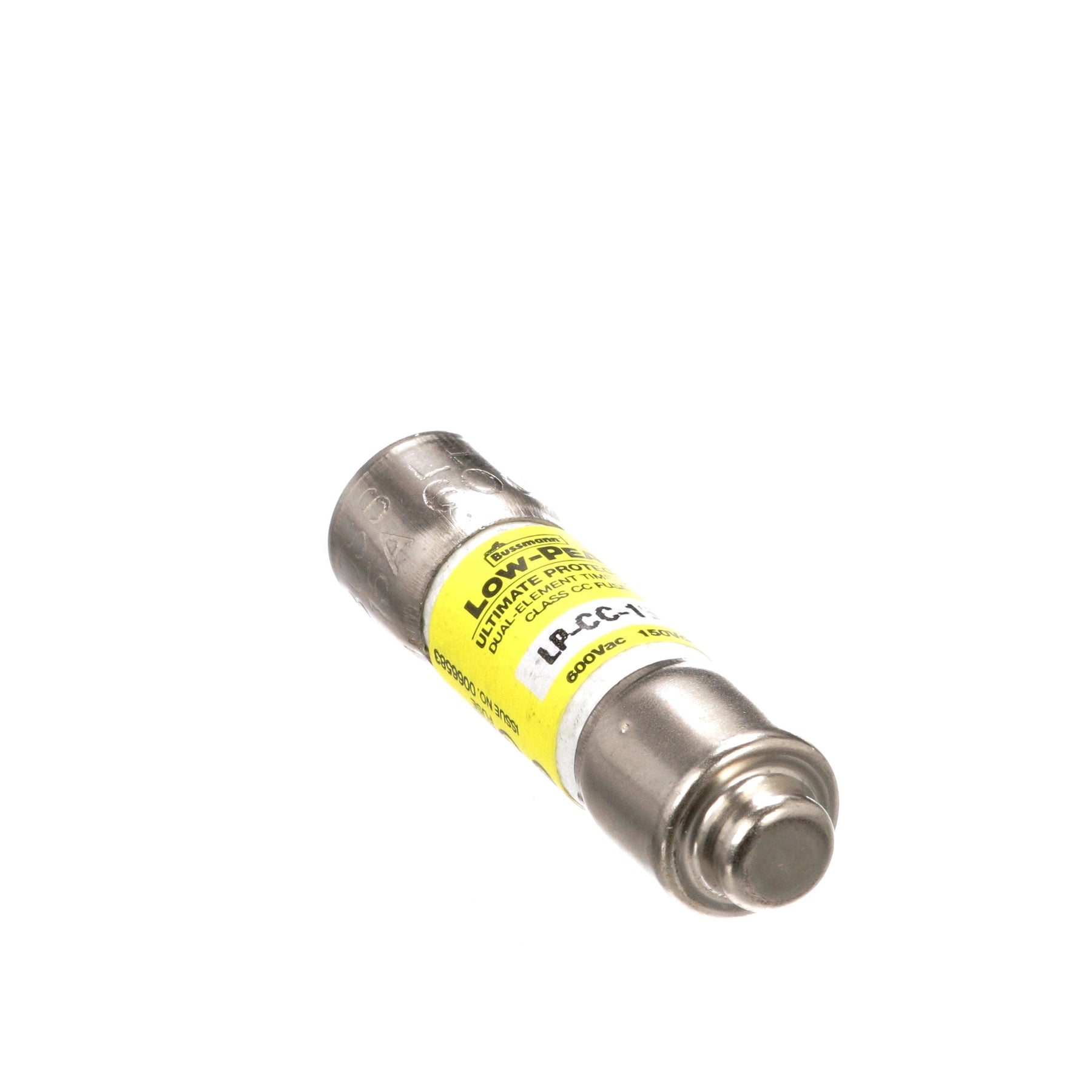

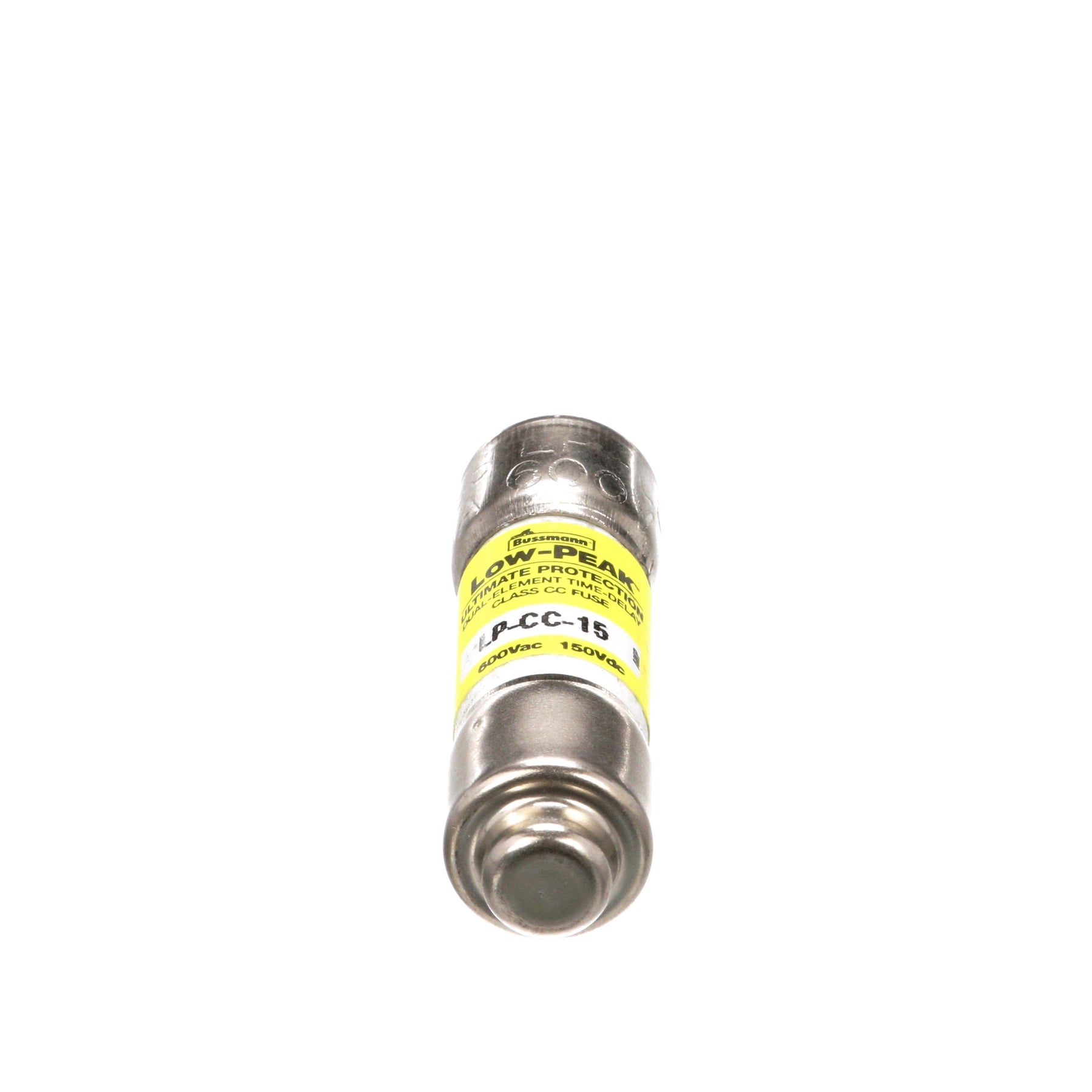

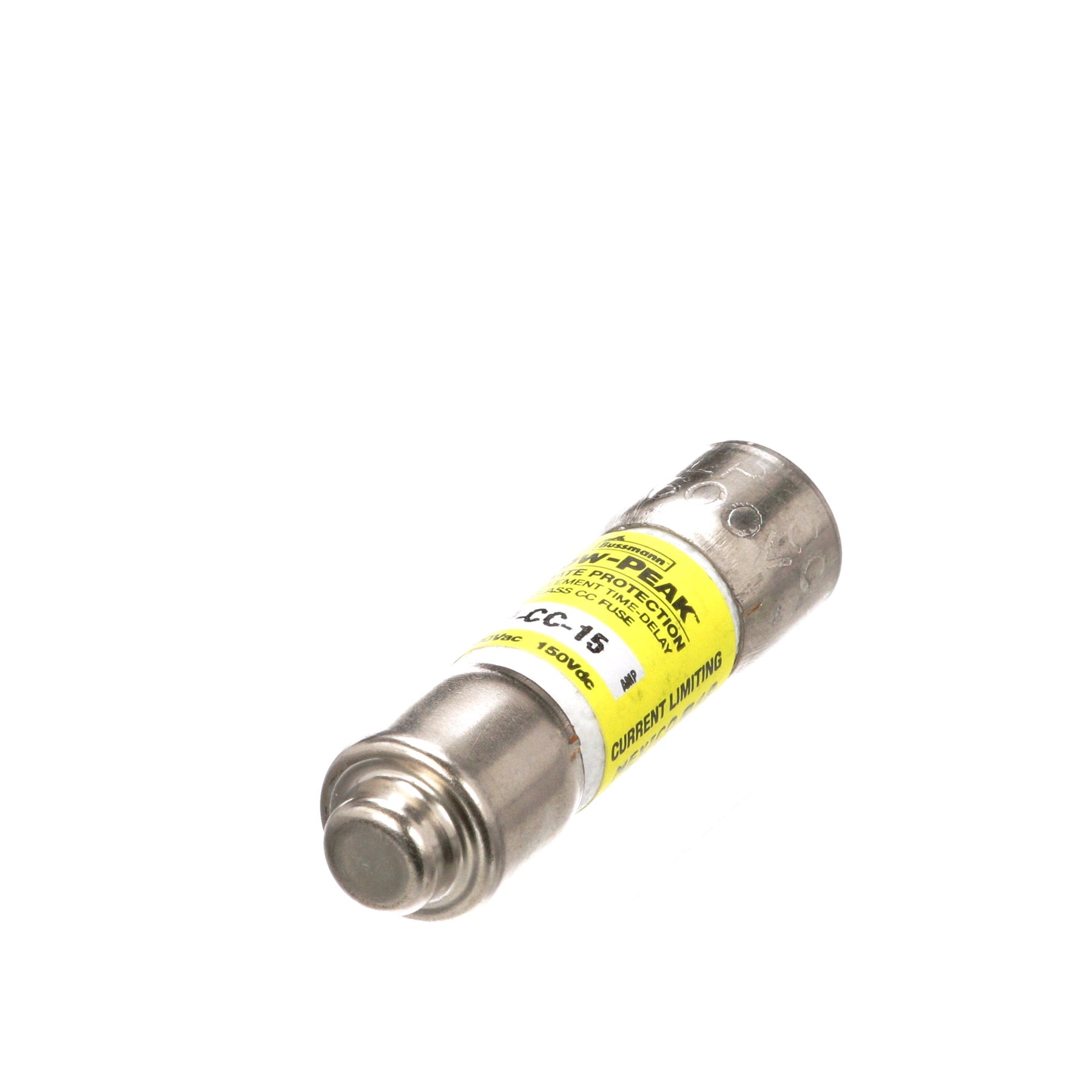

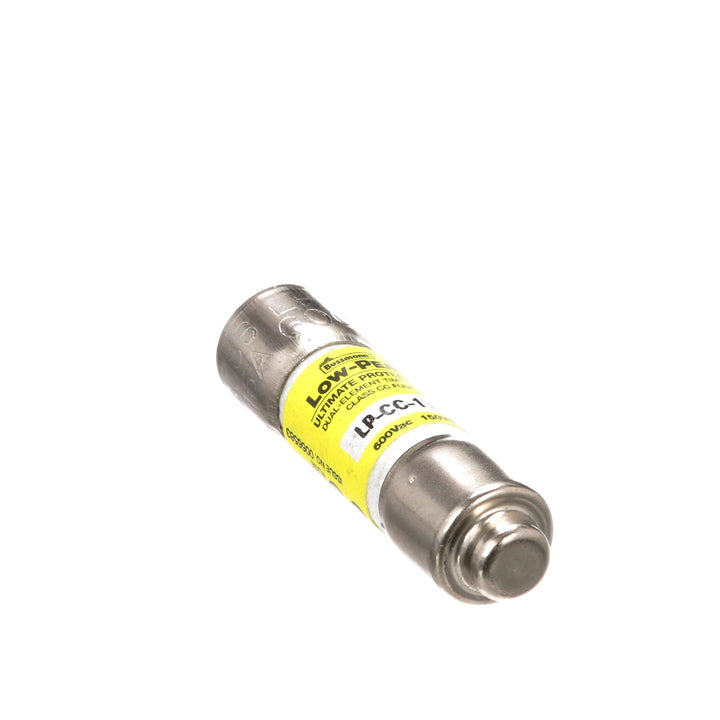

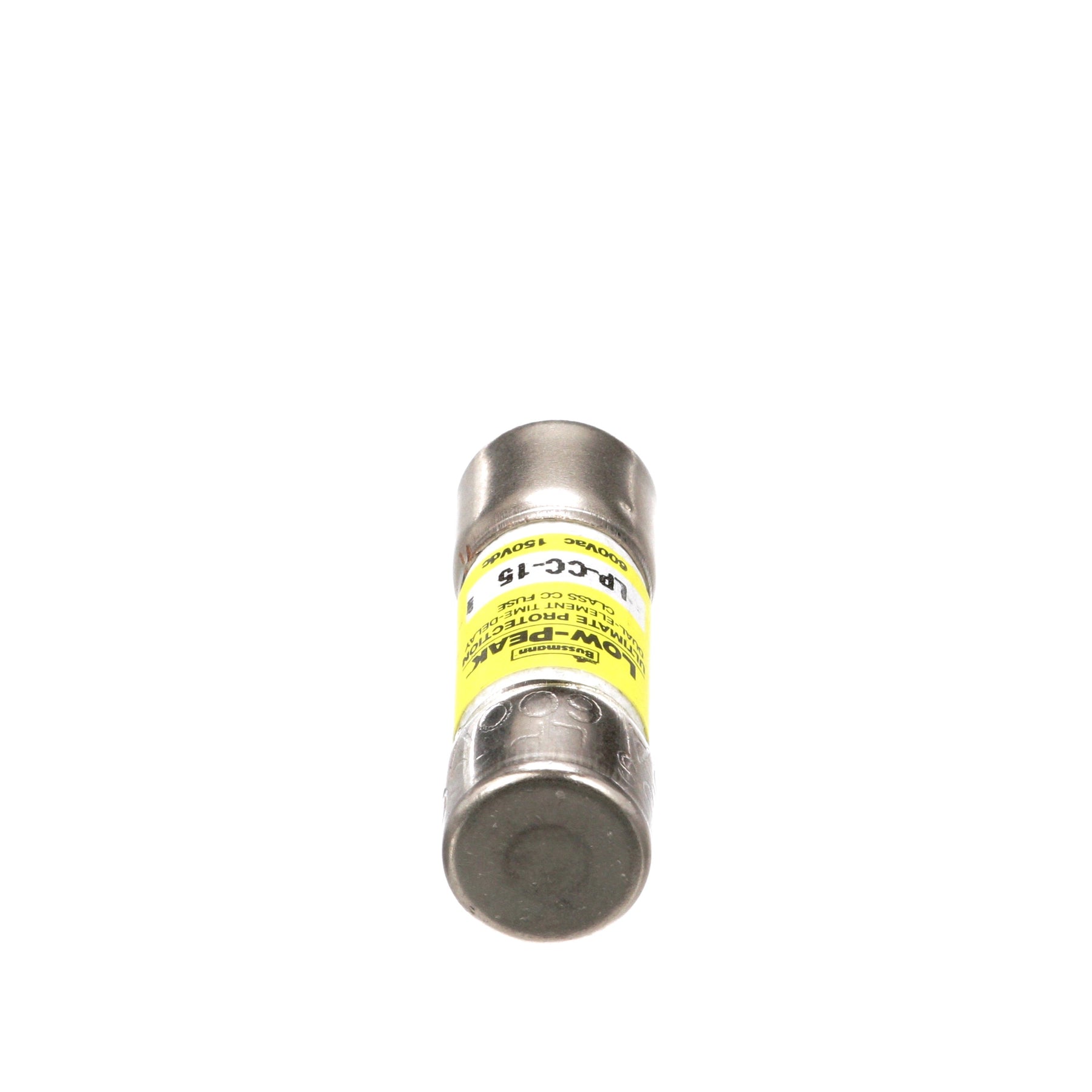

Eaton Bussmann LP-CC-15 - Class CC Fuse 15A 600V (200kA AIC)

Eaton Bussmann LP-CC-15 is a Low-Peak time-delay, current-limiting fuse designed for protecting control circuits, transformers, and motors from short-circuits and overloads. It features a 15A current rating and a 600V AC voltage rating, housed in a compact 1-1/2 inch long body with a 0.41-inch diameter and a single barrel construction. This fuse is certified to UL 248-4 and CSA Class 1422-02 standards and offers a high 200kA interrupting rating at 600V AC. It is typically applied in industrial control panels, motor branch circuits, and transformer protection where reliable, current-limiting performance is required.

Key Features & Specifications

• Type: Low-Peak time-delay, current-limiting fuse, Class CC
• Voltage Rating: 600V AC
• Current Rating: 15A
• Dimensions: 1-1/2 in length, 0.41 in diameter
• Standards: CE, UL 248-4, CSA Class 1422-02
• Applications: Control circuits, motor protection, transformer protection
• AIC rating: 200kA @ 600V AC
• Barrels: 1
• Class Rating: CC
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712115308
• GTIN: 00051712115308
