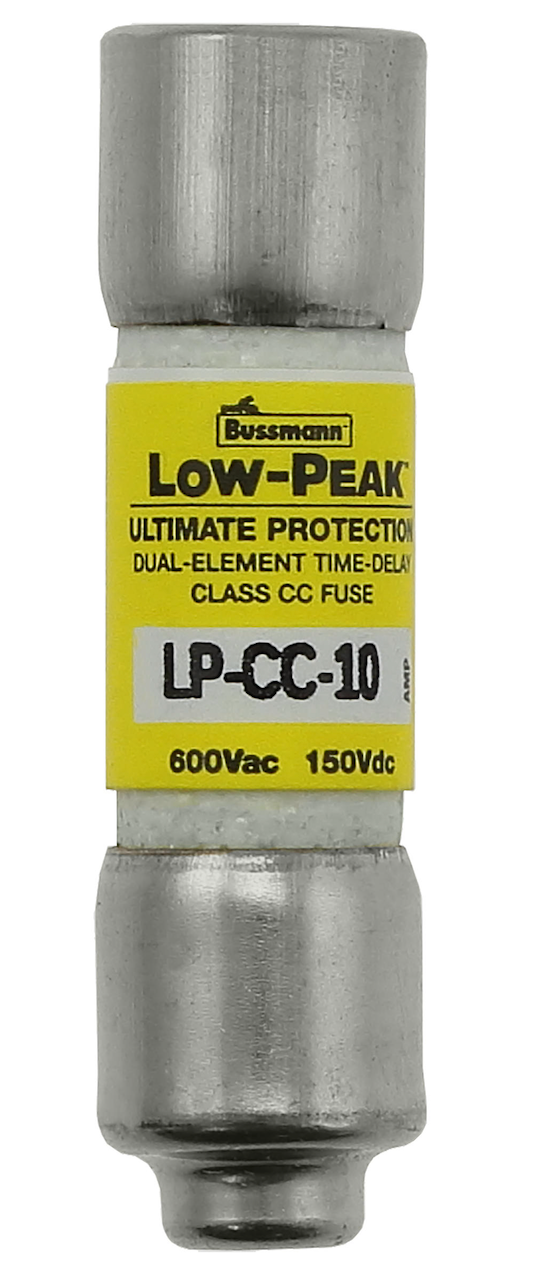

Eaton Bussmann LP-CC-10 - Class CC Fuse 10A 600V (200kA AIC Rating)

Eaton Bussmann LP-CC-10 is a Class CC medium voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V voltage rating with a 10A current rating and provides 200kA interrupting capacity at 600V for reliable fault protection. The fuse construction includes a single-barrel design with 0.41-inch diameter and compact 1-1/2 inch dimensions, weighing 1 lb for straightforward installation. It complies with CE/UL-248-4 Guide JDDZ and CSA Class 1422-02 standards, ensuring industry-recognized safety and performance. Typical applications include protection of control circuits, transformers, and motor circuits in industrial power distribution systems.

Key Features & Specifications

• Type: Low-Peak Class CC medium voltage fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 1-1/2 inch length
• Diameter: 0.41 inches
• Weight: 1 lb
• Standards: CE/UL-248-4 Guide JDDZ, CSA Class 1422-02
• Applications: Industrial control circuits, transformers, motor protection
• AIC rating: 200kA@600V
• Class Rating: CC
• Barrels: 1
• Certification: CE/UL-248-4 Guide JDDZ/CSA Class 1422-02

Product Identification

• UPC: 051712180245
• GTIN: 00051712180245
