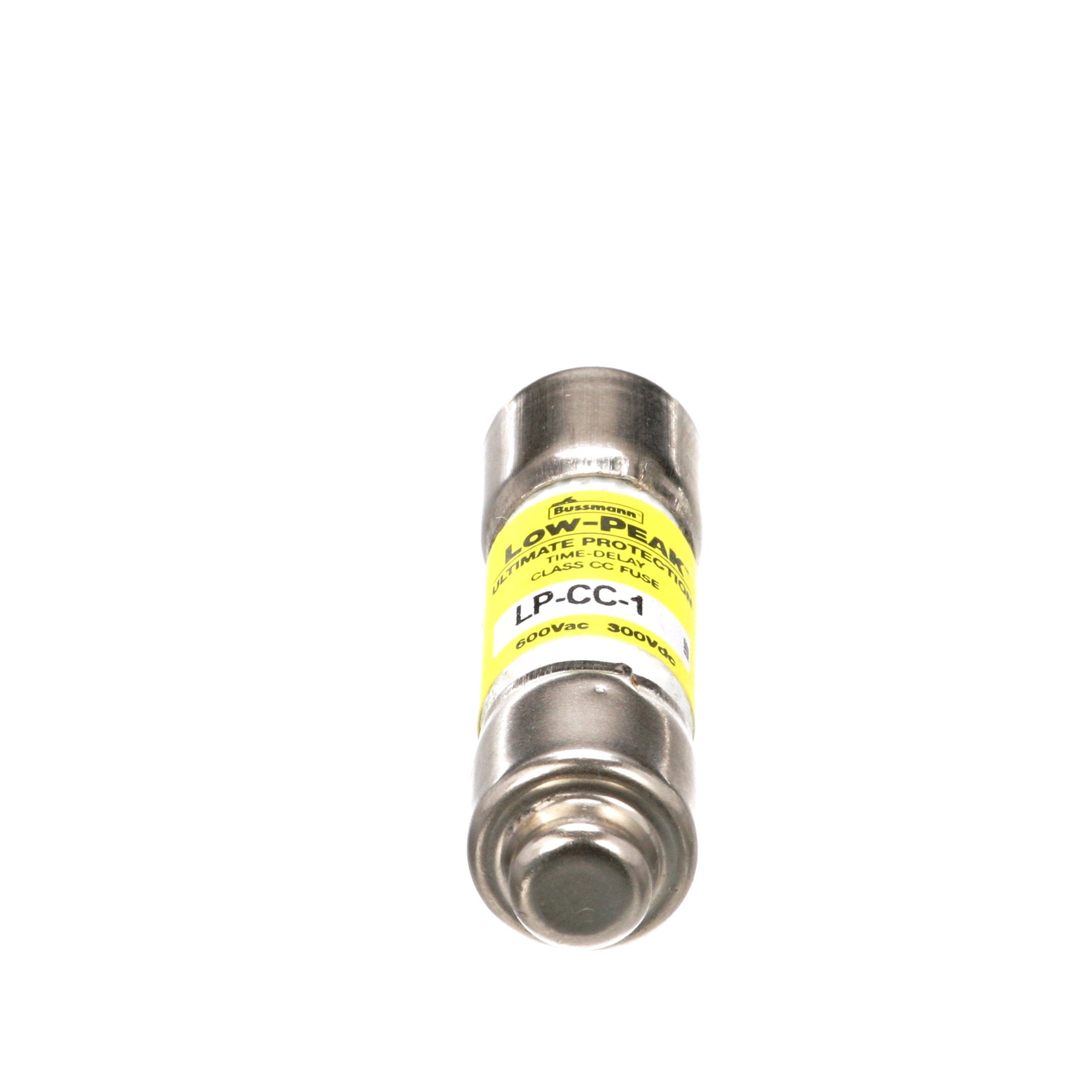

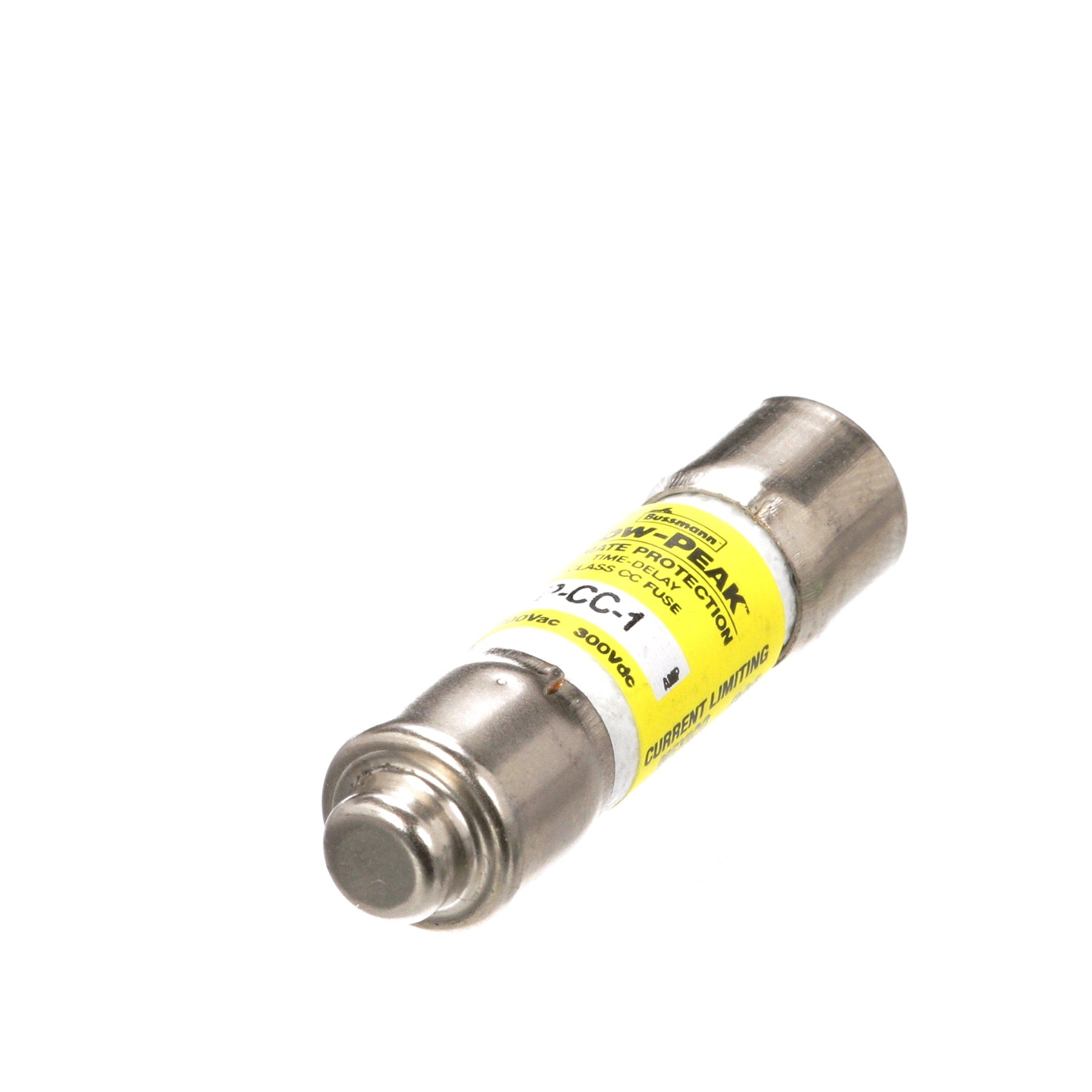

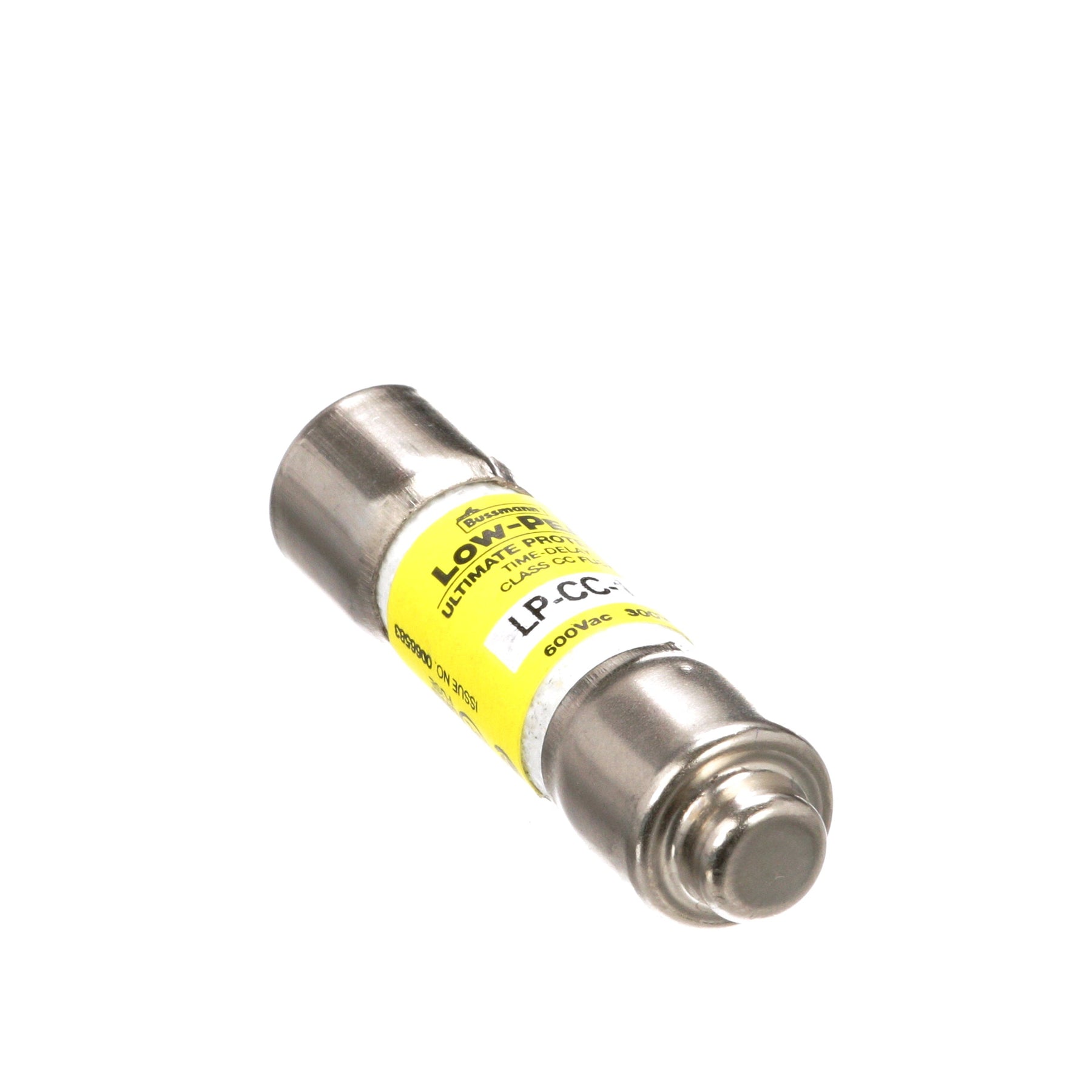

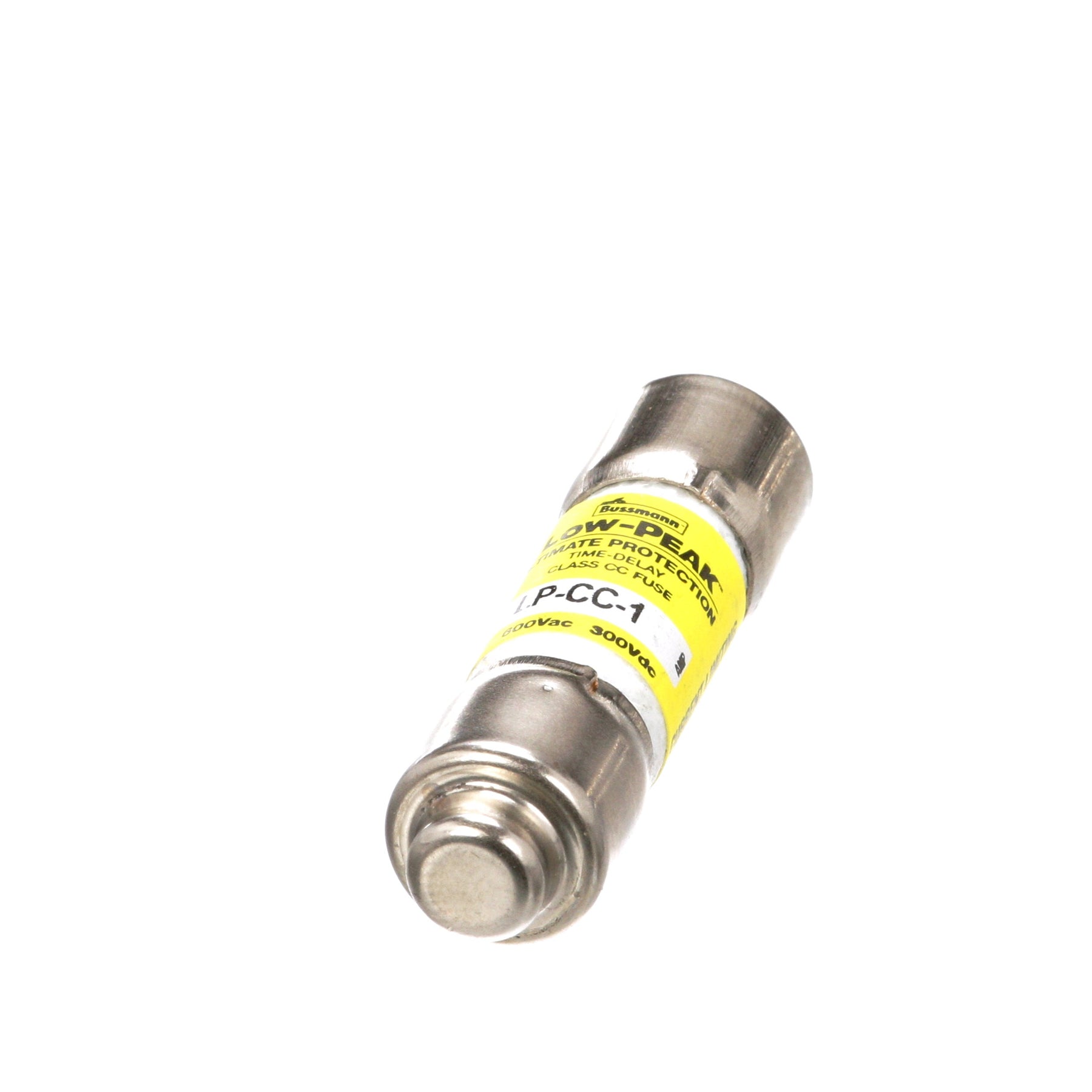

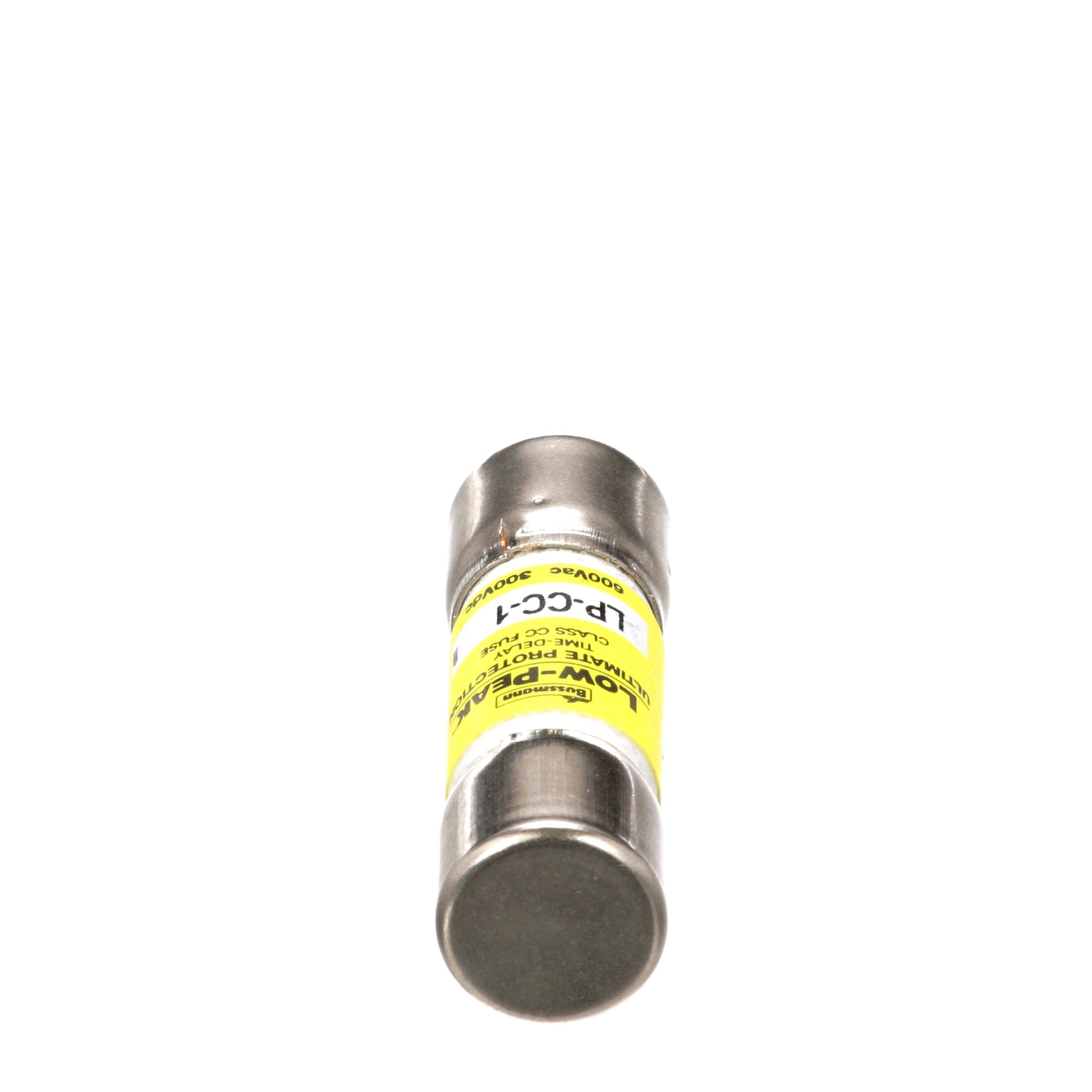

Eaton Bussmann LP-CC-1 - Class CC Fuse 1A (200kA AIC, 600V)

Eaton Bussmann LP-CC-1 is a Low-Peak time-delay, current-limiting fuse designed for protecting control circuits, transformers, and motors against short-circuits and overloads. It features a 1A current rating and a 600V AC voltage rating, housed in a compact 1-1/2 inch long body with a 0.41-inch diameter and a single barrel construction. This fuse is certified to UL 248-4 and CSA C22.2 No. 248.4 standards and offers a high 200,000A interrupting rating at 600V AC. It is commonly applied in industrial control panels, motor branch circuits, and transformer protection where reliable, current-limiting performance is required.

Key Features & Specifications

• Type: Low-Peak, time-delay, current-limiting, Class CC fuse
• Voltage Rating: 600V AC
• Current Rating: 1A
• Dimensions: 1-1/2 in length, 0.41 in diameter
• Standards: UL 248-4, CSA C22.2 No. 248.4 (Class 1422-02), CE
• Applications: Control circuits, transformer protection, motor branch circuits
• AIC rating: 200kA @ 600V AC
• Class Rating: CC
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712180436
• GTIN: 00051712180436
