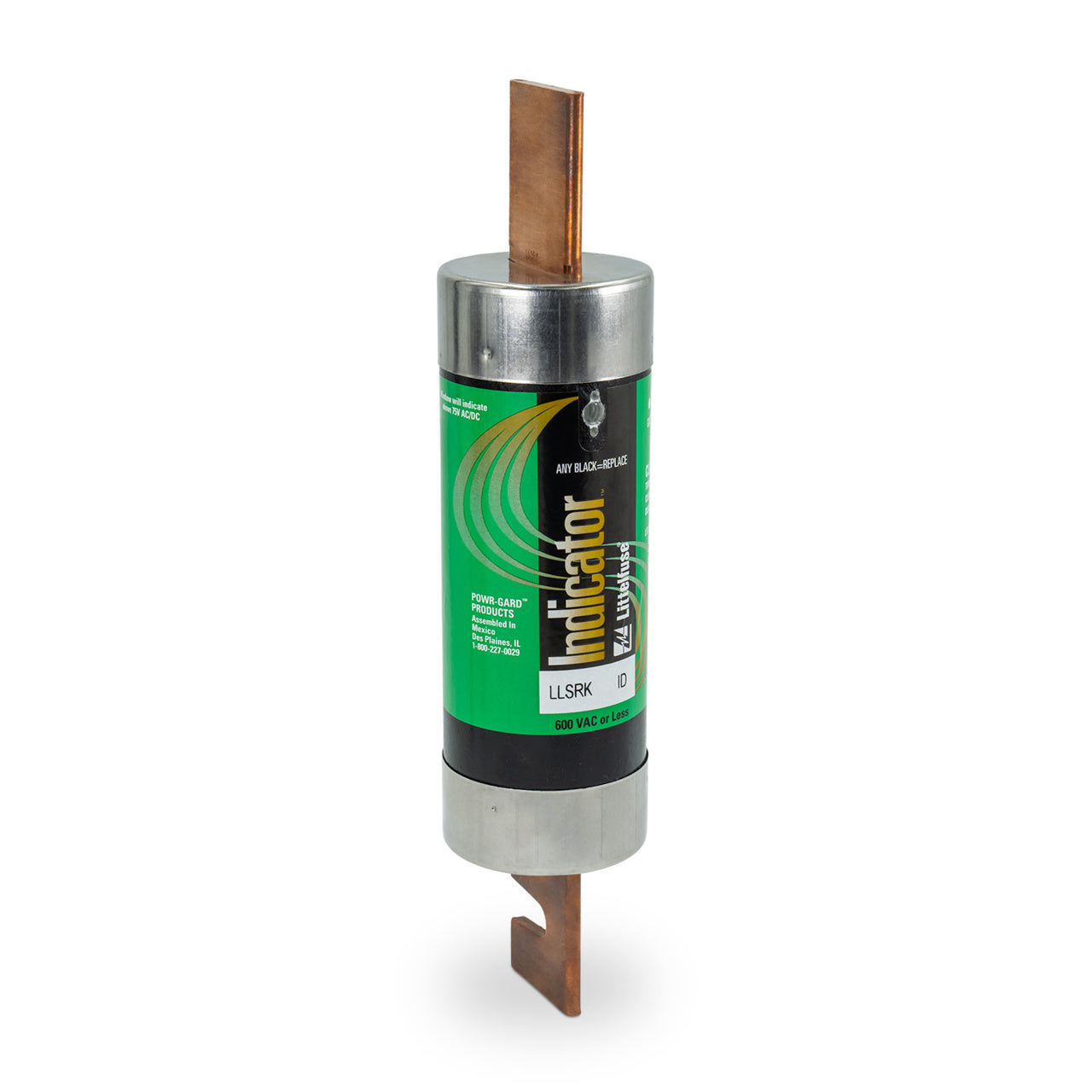

Littelfuse LLSRK600 - Low Voltage Fuse 600A (200kA AIC @600V)

Littelfuse LLSRK600 is a low voltage current-limiting fuse designed for industrial circuit protection applications requiring high interrupting capacity. This 600A rated fuse operates at 600V AC/DC and features a 200kA interrupting rating at 600V for reliable short-circuit protection. Constructed with a single-barrel design measuring 0.56 inches in diameter and weighing 5.19 lb, the fuse utilizes clip-style connections and meets K5 class rating requirements for time-delay characteristics. The LLSRK600 complies with industry standards for industrial power distribution systems and is typically deployed in motor control centers, industrial control panels, and power distribution equipment where robust fault current protection is essential.

Key Features & Specifications

• Type: Low voltage current-limiting fuse, time-delay characteristic, single barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 600A
• Dimensions: 0.56 inches diameter
• Standards: Meets industrial fuse standards for K5 class rating
• Applications: Motor control centers, industrial control panels, power distribution systems
• AIC rating: 200kA@600V
• Connection: Clip
• Barrels: 1
• Class Rating: K5
• Weight: 5.19 lb

Product Identification

• UPC: 079458350982
