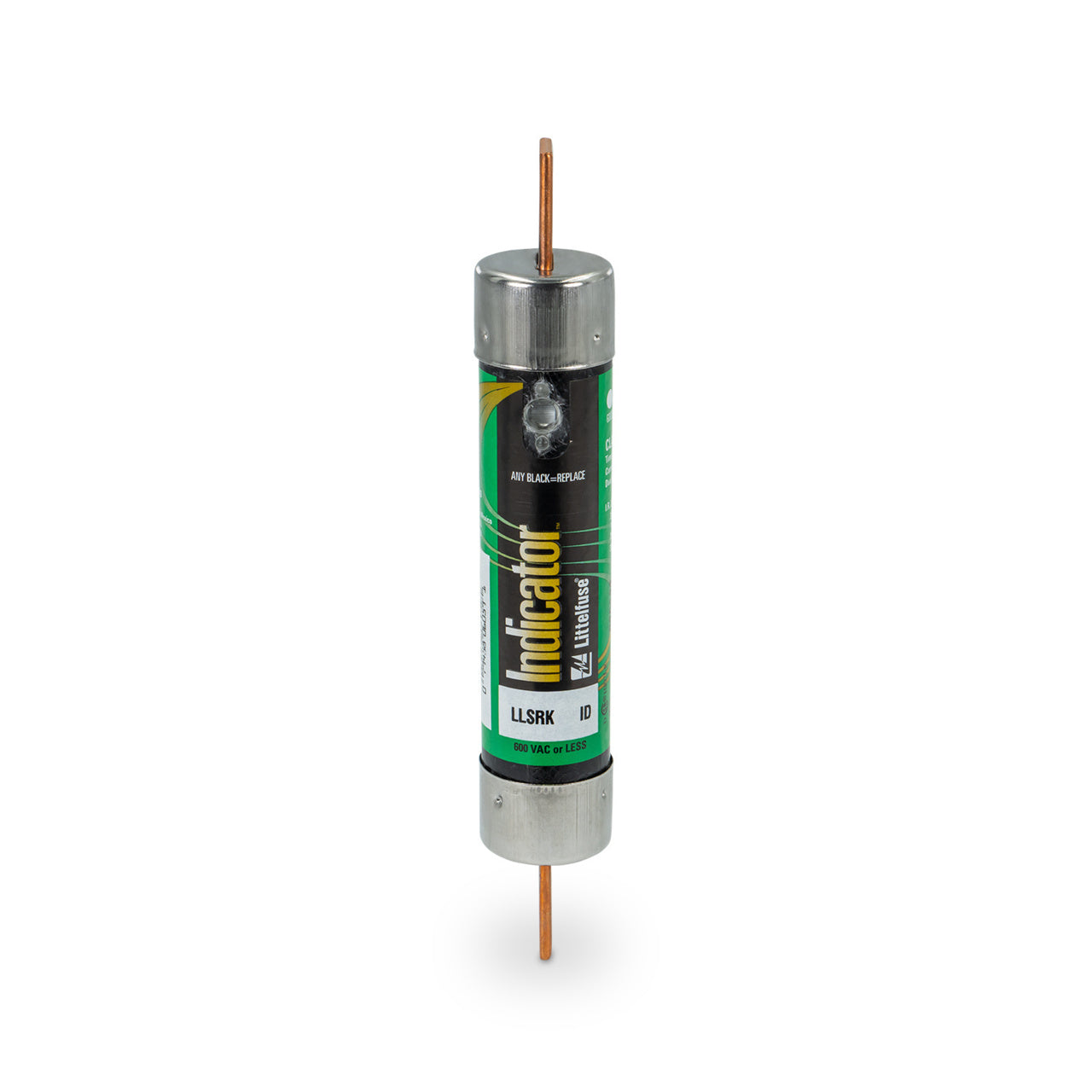

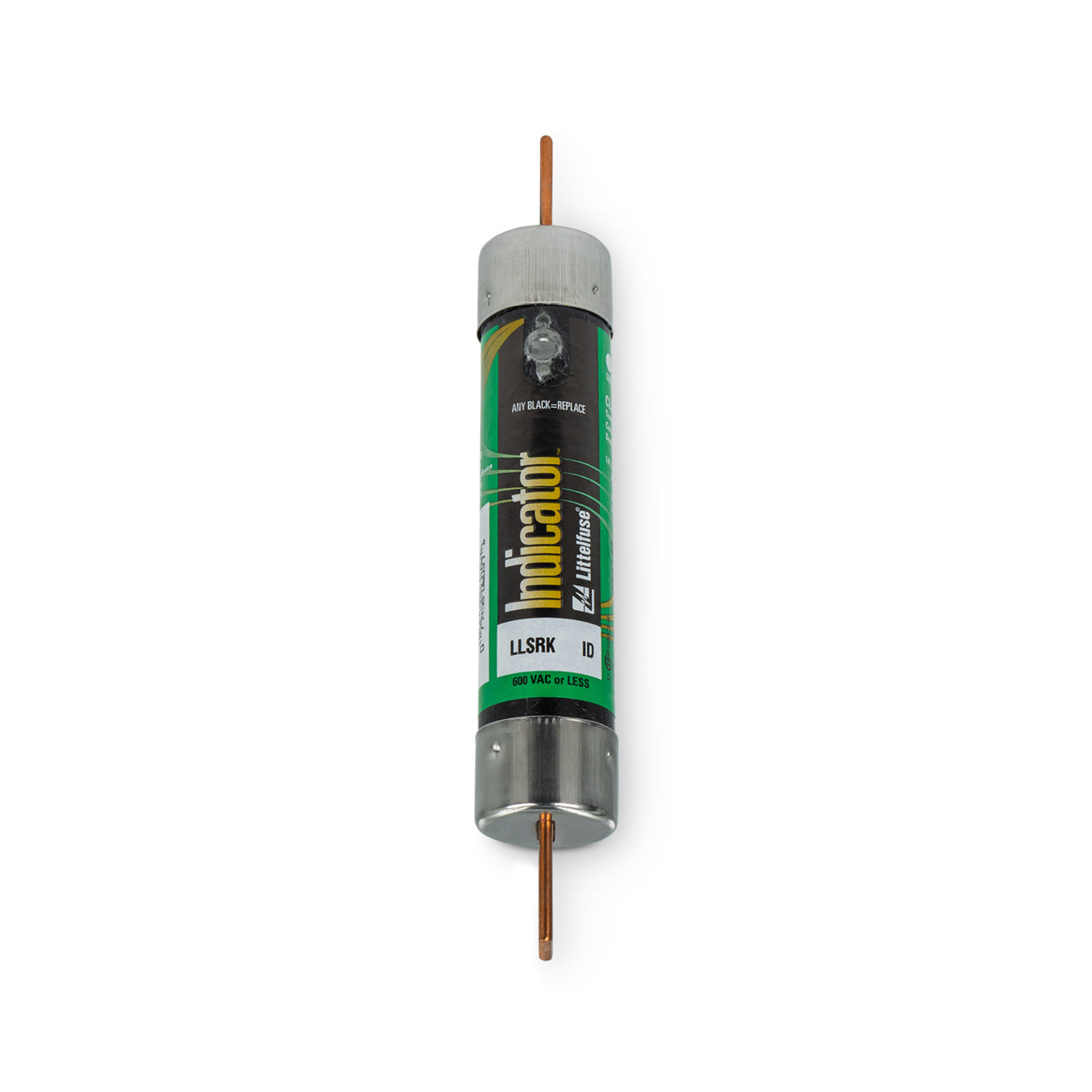

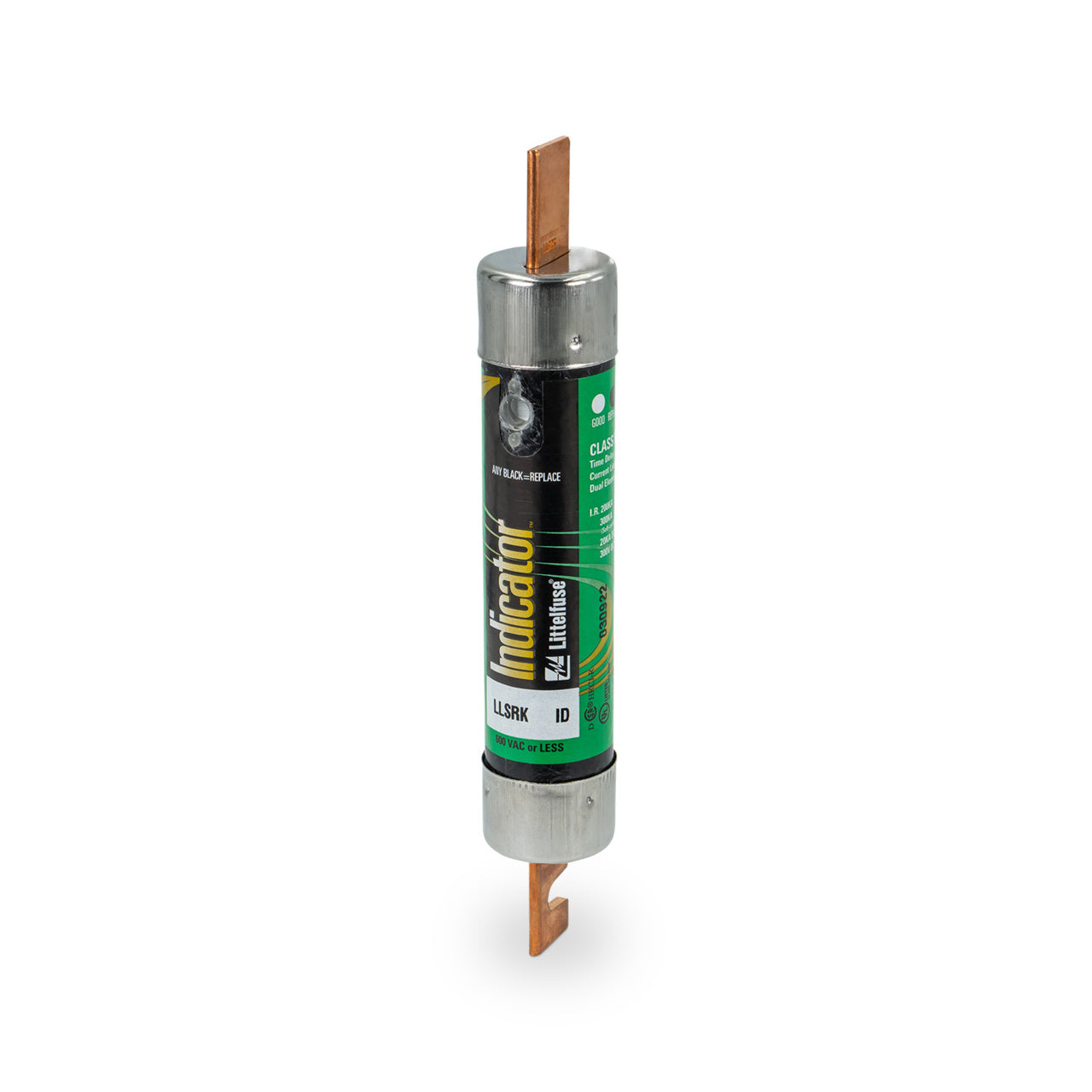

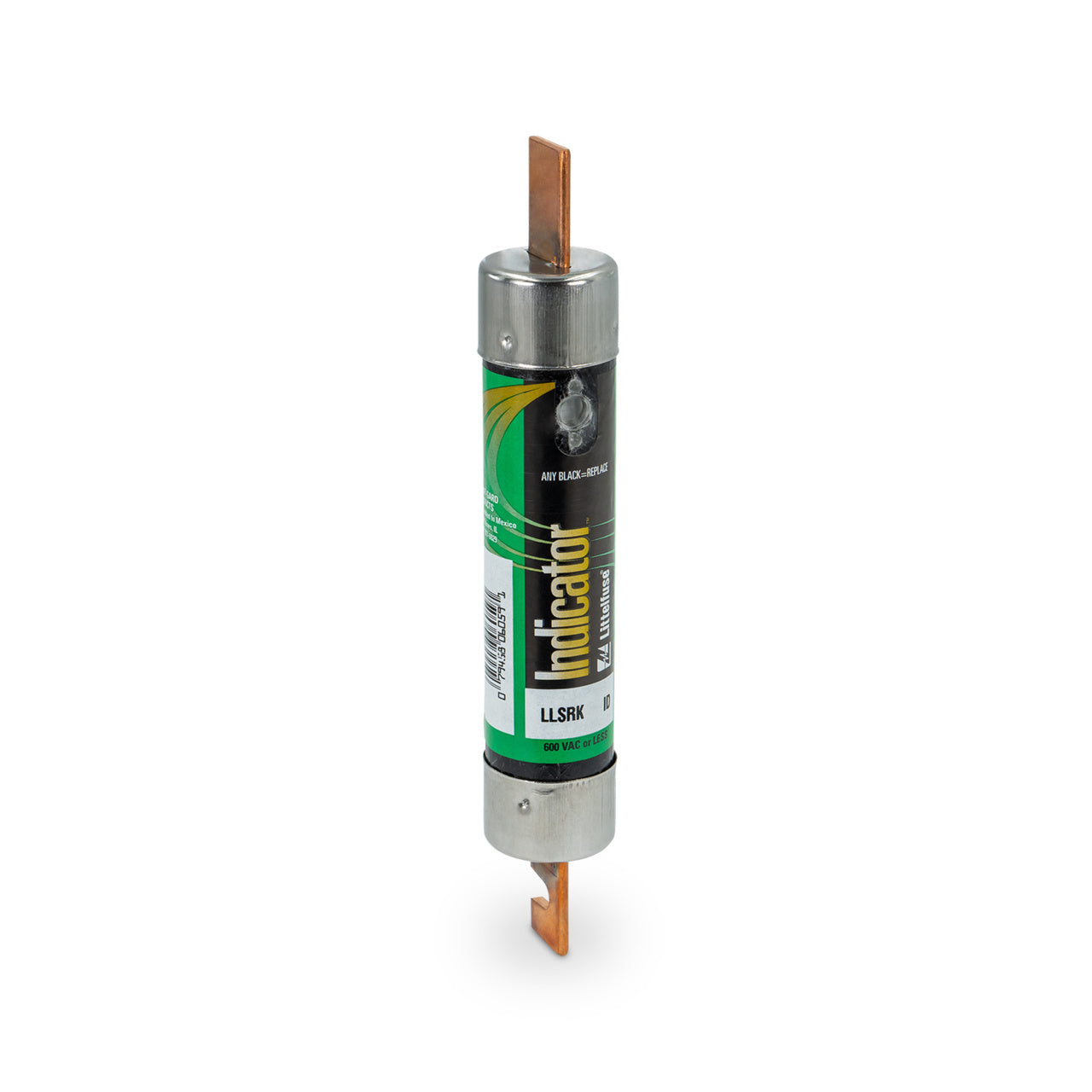

Littelfuse LLSRK080ID - RK1 Class Fuse 80A 600V (200kA AIC Rating)

Littelfuse LLSRK080ID is a low voltage current-limiting fuse designed for industrial circuit protection applications. This RK1 class fuse features a 600V AC voltage rating and 80A current rating with high interrupting capacity of 200kA at 600V. The single-barrel construction measures 2.59 inches in diameter and utilizes clip-style connections for secure installation. Manufactured to meet industry standards for current-limiting protection, this fuse is commonly deployed in motor control centers, industrial control panels, and power distribution systems where reliable overcurrent protection is critical.

Key Features & Specifications

• Type: LLSRK_ID current-limiting time-delay fuse, RK1 class
• Voltage Rating: 600V AC
• Current Rating: 80A
• Dimensions: 2.59" diameter
• Standards: UL/CSA recognized
• Applications: Industrial control panels, motor control centers, power distribution systems
• AIC Rating: 200kA@600V
• Connection: Clip style
• Barrels: 1
• Class Rating: RK1
• Weight: 5.19 lb

Product Identification

• UPC: 07945806059
• GTIN: 00079458060591
