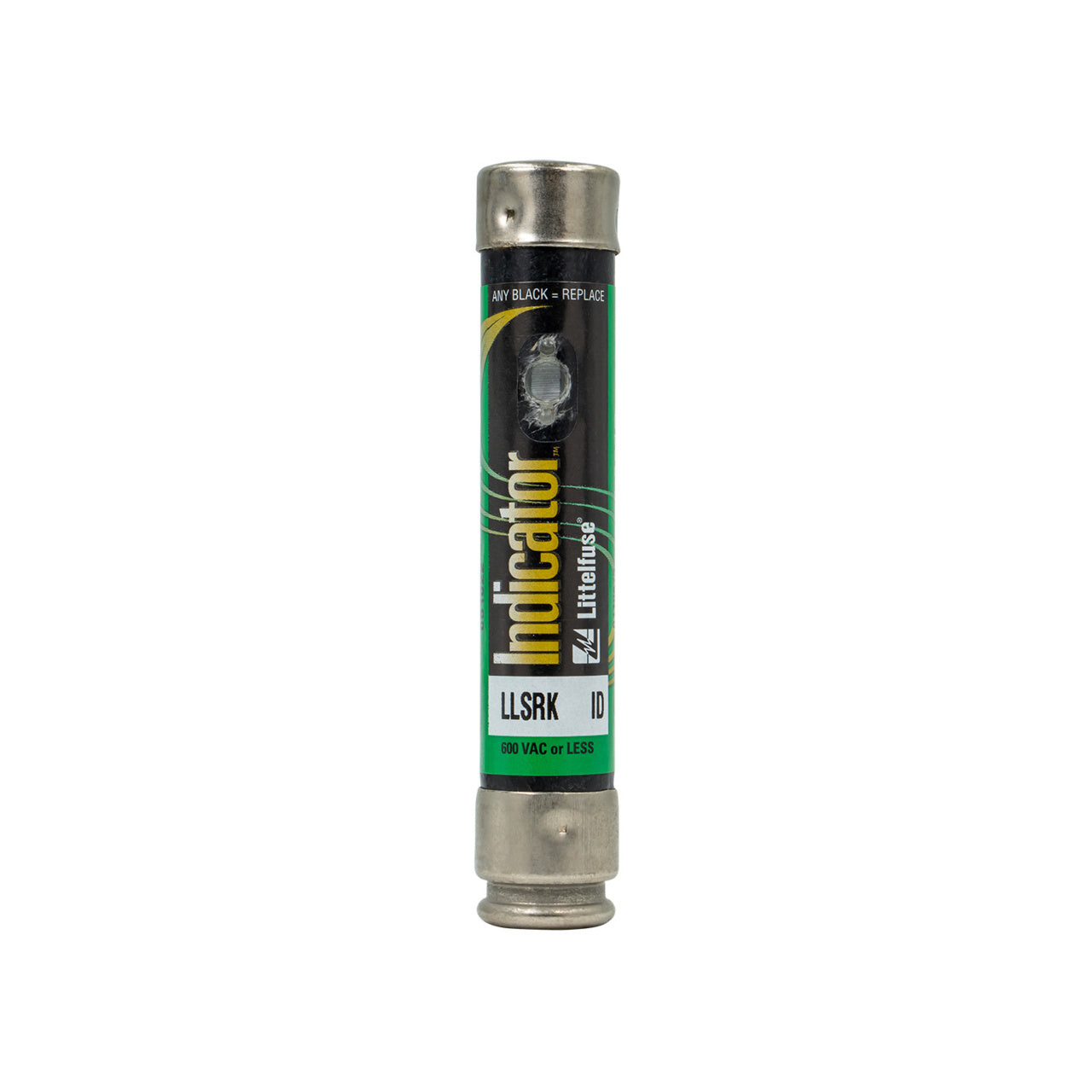

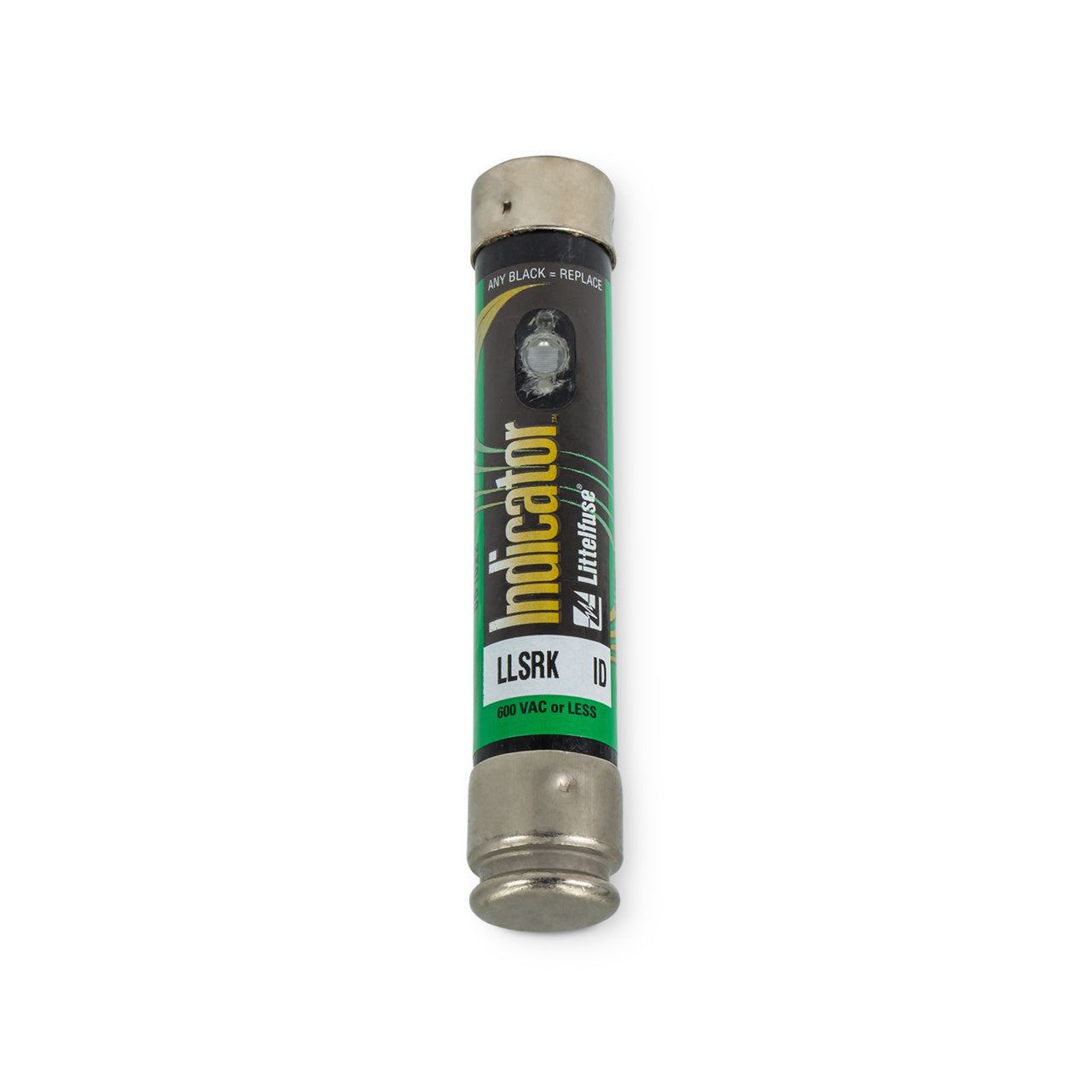

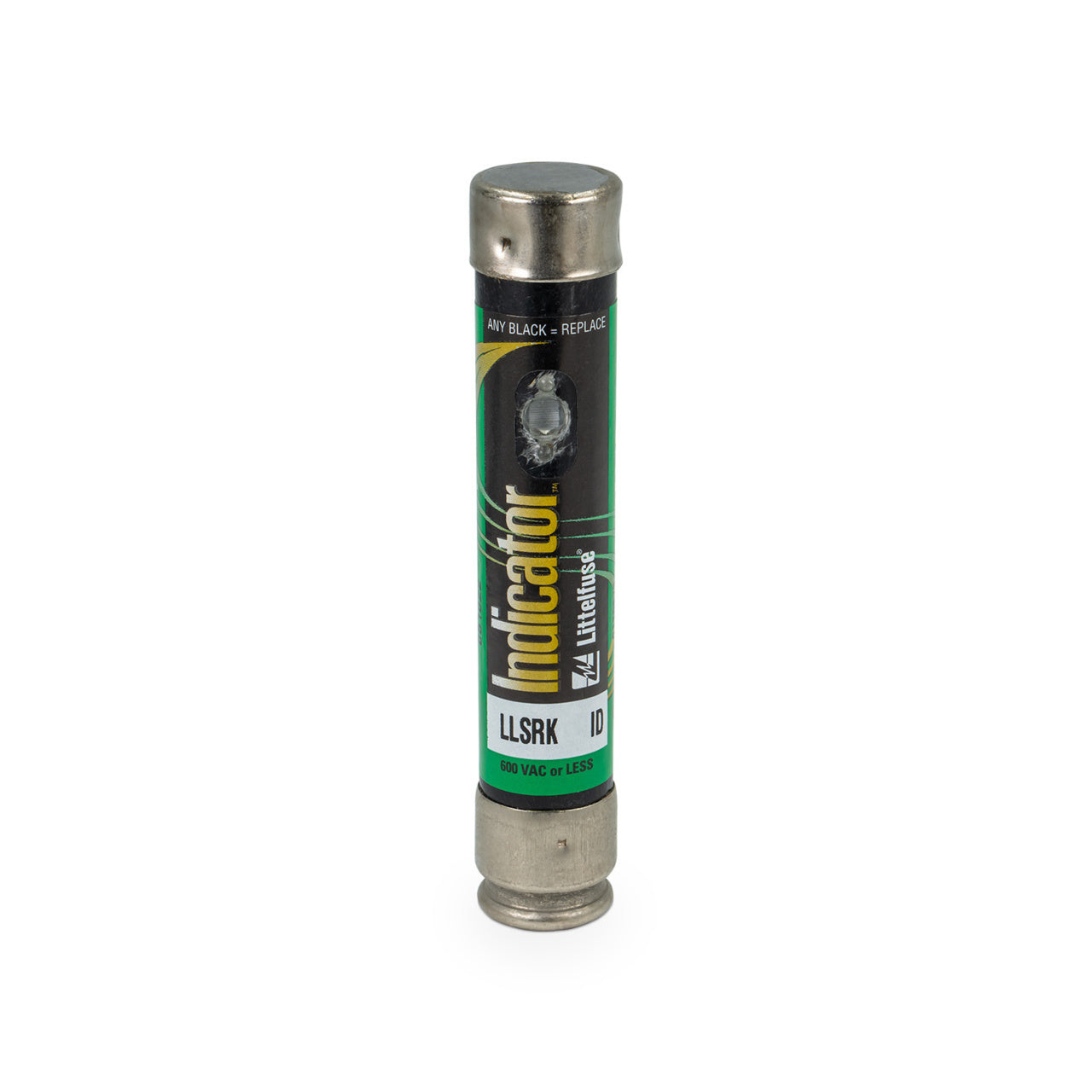

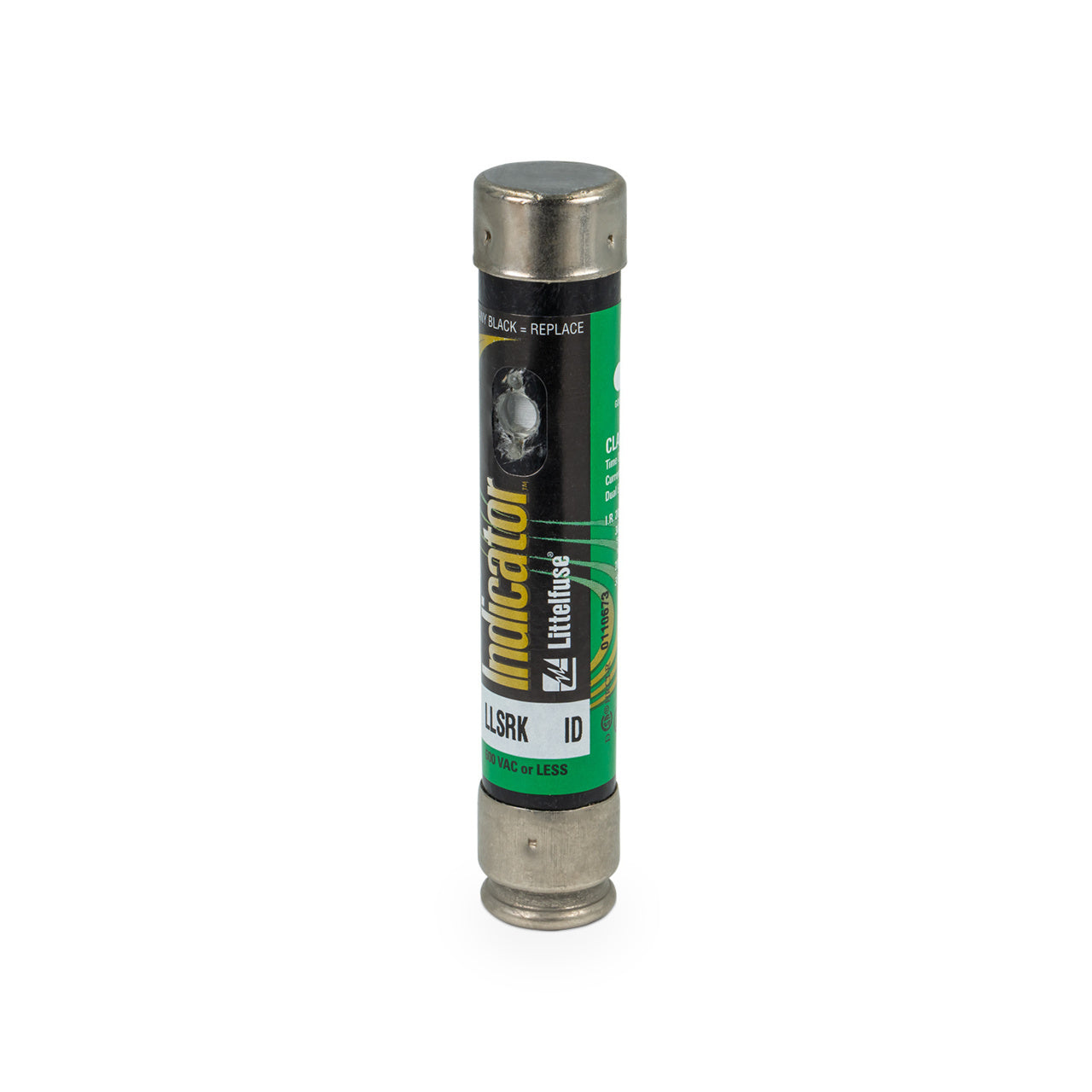

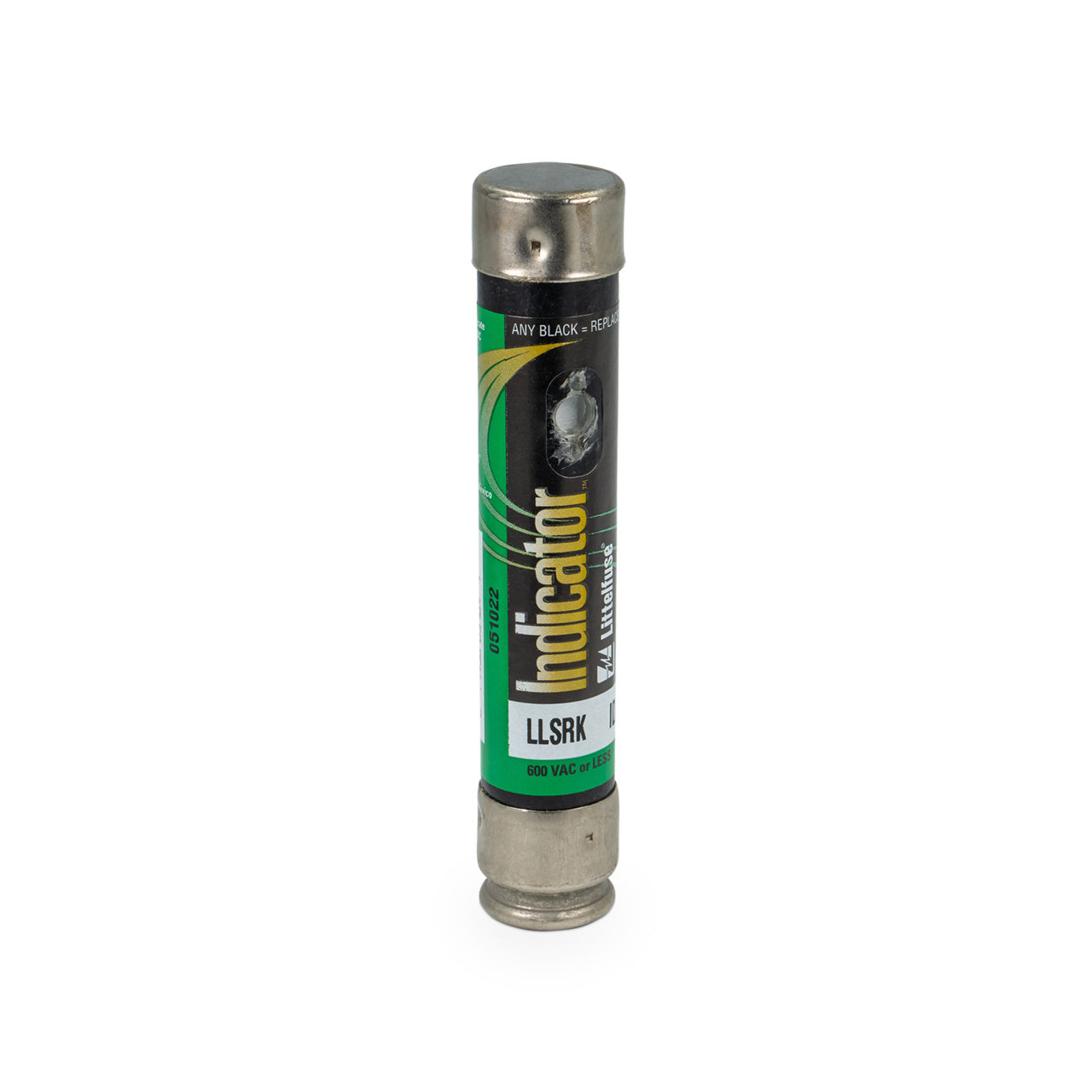

Littelfuse LLSRK060ID - Class RK1 Fuse 60A 600V (200kA AIC Rating)

The Littelfuse LLSRK060ID is a Class RK1 low-voltage current-limiting fuse designed to provide superior short-circuit protection in industrial electrical systems. It features a 600V AC voltage rating with a 60A current rating and offers an impressive 200kA interrupting capacity at 600V for reliable fault protection. The fuse construction utilizes a single-barrel design with a 1.84-inch diameter and weighs 5.19 lb, engineered for durable performance in demanding environments. This fuse meets industry standards for RK1 classification, ensuring compatibility with existing electrical protection schemes. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where high-interrupting capacity and current-limiting characteristics are required.

Key Features & Specifications

• Type: Class RK1 current-limiting fuse, single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 1.84-inch diameter
• Standards: RK1 classification
• Applications: Motor branch circuits, feeder circuits, industrial control panels
• AIC rating: 200kA@600V
• Weight: 5.19 lb
• Family: LLSRK_ID
• Barrels: 1

Product Identification

• UPC: 07945803988
• GTIN: 00079458039887
