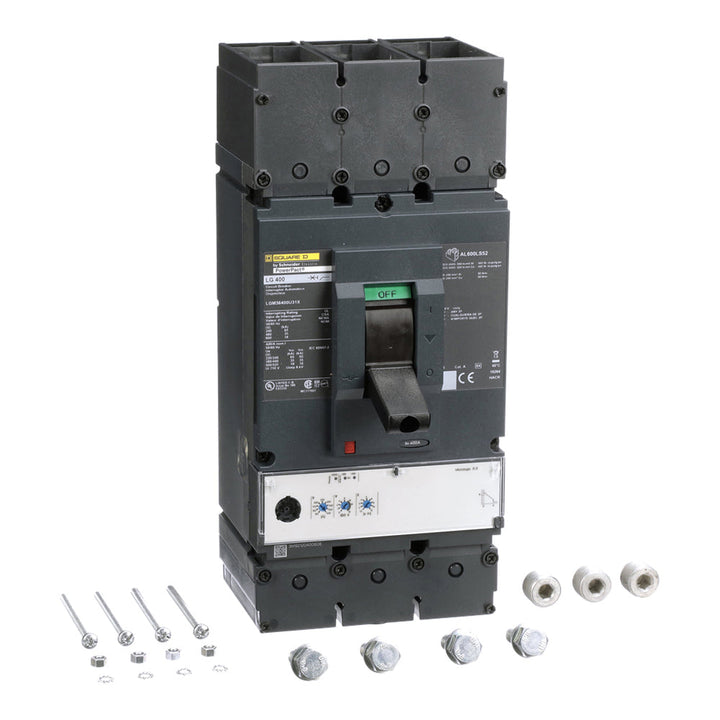

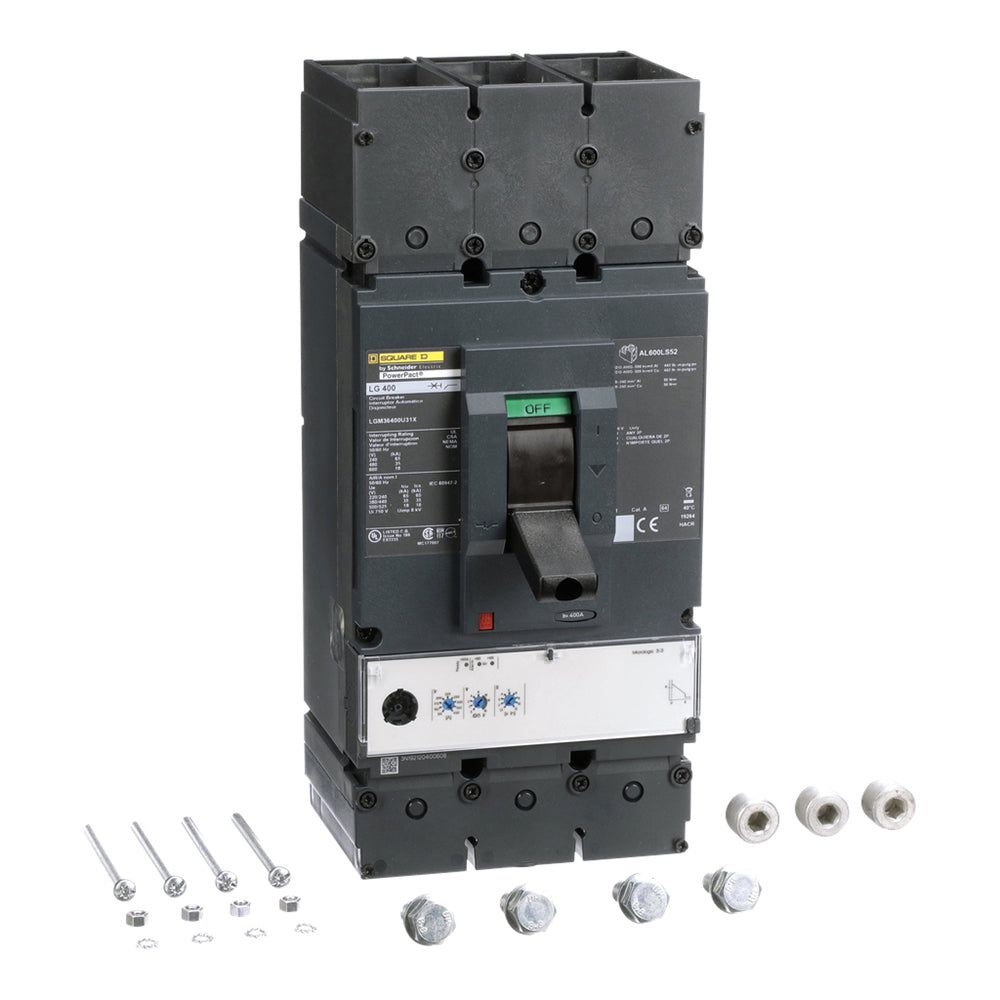

Square D LGM36600U31X is a 3-pole molded case circuit breaker from the PowerPact L series, designed to provide primary overcurrent protection in commercial and industrial power distribution systems. It is rated for 600A continuous current at 600VAC with a 35kA interrupting capacity at 480V, utilizing a solid-state Micrologic 3.3 electronic trip unit for LI (Long-Time and Instantaneous) protection functions. The unit measures 13.4 in (340 mm) in height, 5.5 in (140 mm) in width, and 4.3 in (110 mm) in depth, weighs 15 lb, and features a bolt-on connection with lugs accepting 2 x AWG 2/0 to 500 kcmil aluminum or copper wire. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, with certifications from UL, CSA, and NOM, and operates within a temperature range of 28 to 158 °F (-2 to 70 °C). This circuit breaker is suited for main panel disconnect and feeder protection in control panels and switchboards within industrial and commercial power distribution networks.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker
  • Series/Frame: PowerPact L
  • Current Rating: 600A
  • Voltage Rating: 600VAC
  • Poles: 3
  • Phase: 3
  • Interrupt Rating: 35kA at 480V
  • Protection: Solid State (Electronic)
  • Trip Unit: Micrologic 3.3
  • Functions: LI - Long-Time and Instantaneous
  • Connection: Bolt-On
  • Terminal Type: Lugs
  • Wire Size: 2 x AWG 2/0...500 kcmil aluminium/copper
  • Mounting Type: Panel Mount
  • Dimensions: 13.4 in (340 mm) x 5.5 in (140 mm) x 4.3 in (110 mm) (Height x Width x Depth)
  • Weight: 15 lb
  • Temperature Rating: 28-158 °F (-2-70 °C)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Country of Origin: United States


Product Identification
  • GTIN: 00786685442907
