Siemens LGB3B100 - Molded Case Breaker 100A 600V
Siemens LGB3B100 - Molded Case Breaker 100A 600V

Siemens LGB3B100 - Molded Case Breaker 100A 600V

Siemens
Price
Save $-329.21
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

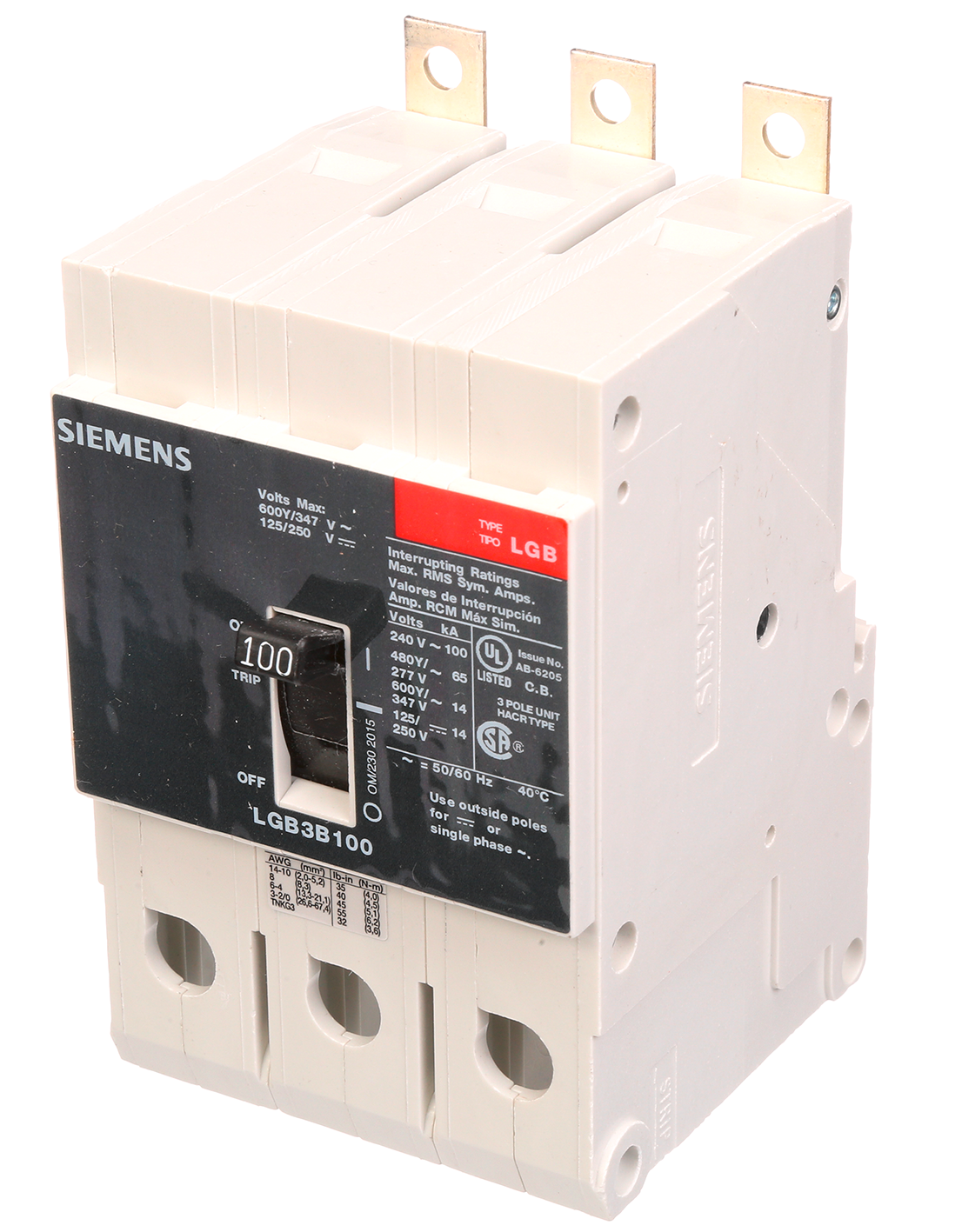

Siemens LGB3B100 is a 3-pole molded case circuit breaker from the VL Series designed for thermal magnetic protection with LI (Long-Time and Instantaneous) functions. It is rated for 100A continuous current at 600VAC, with an AIC rating of 100kA at 240VAC, and operates in 3-phase systems. The unit measures 2.961 x 2.87 x 4.1005 inches, weighs 3 lb, and features a bolt-on connection with a temperature rating of -13°F to 158°F (-25°C to 70°C). It complies with UL, CSA, IEC, and NOM certifications, and is manufactured in Mexico. This breaker is suitable for industrial applications requiring reliable overcurrent protection in distribution panels and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, VL Series, Thermal Magnetic
  • Voltage Rating: 600VAC
  • Current Rating: 100A
  • Dimensions: 2.961 x 2.87 x 4.1005 inches
  • Standards: UL, CSA, IEC, NOM
  • Applications: Industrial distribution panels, motor control centers
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Coil Voltage Maximum: Not applicable
  • Temp Rating: -13°F - 158°F (-25°C - 70°C)
  • Shipping Dimensions: 2.961 x 2.87 x 4.1005 inches
  • Phase: 3
  • Voltage: 600V
  • Amperage: 100A
  • AIC rating: 100kA@240V
  • Connection: Bolt-On
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: VL
  • Trip Type: Thermal Magnetic
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Bolt-On
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: Not specified
  • Amperage Maximum: 100A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Not applicable
  • Wire Size: Not specified
  • Certification: UL, CSA, IEC, NOM
  • Circuit Breaker Mounting Style: Bolt-On
  • Terminal Connection: Bolt-On
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL, CSA, IEC, NOM
  • Compatible Frames: VL Series
  • Installation Type: Panel Mount
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: VL
  • Current Rating: 100A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not applicable
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 887621220334
