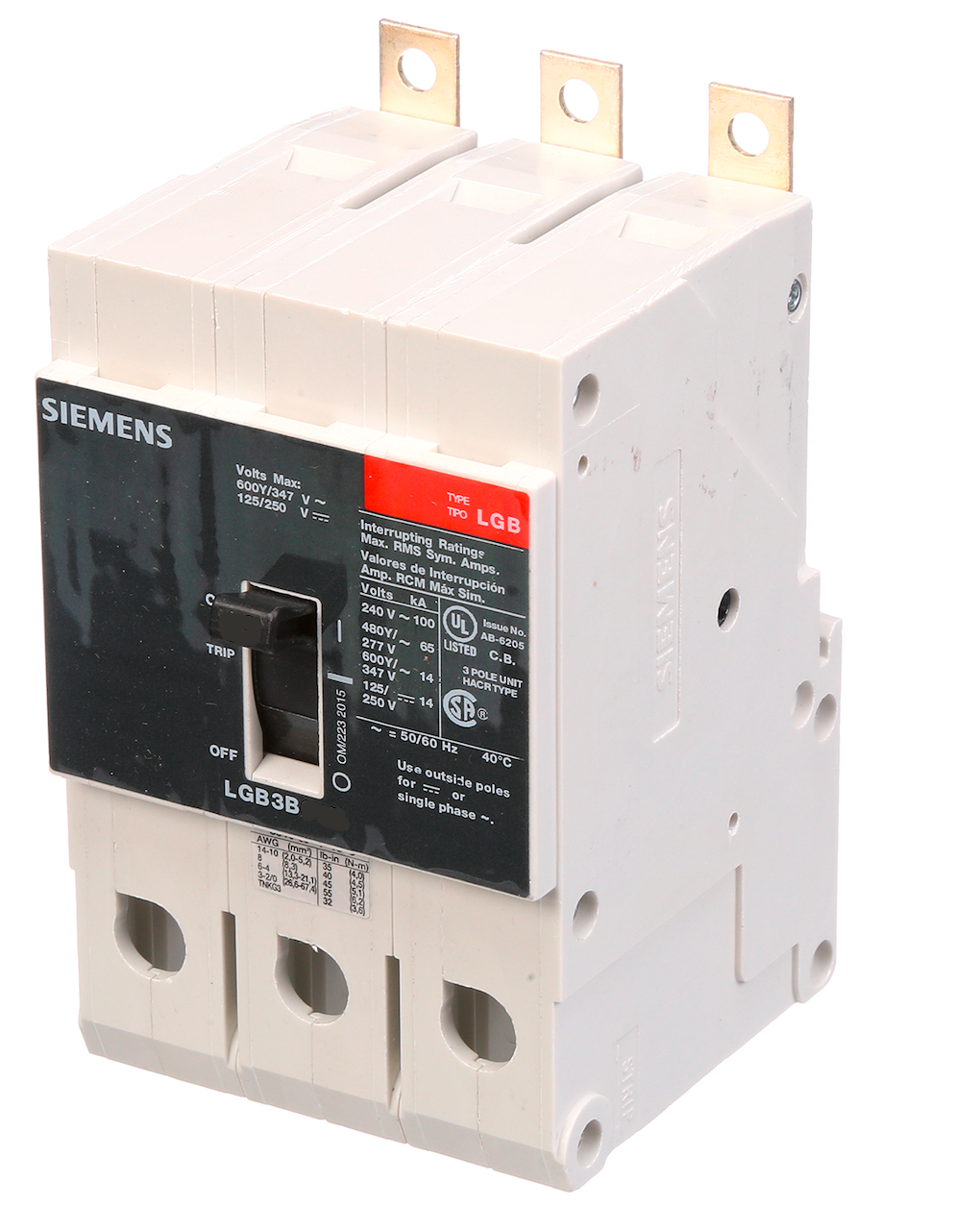

Siemens LGB3B060 is a 3-pole molded case circuit breaker from the VL Series, designed to provide thermal magnetic protection for electrical circuits. This unit is rated for 60A at 600V AC and offers a high interrupting capacity of 100kA at 240V AC, utilizing a LI (Long-Time and Instantaneous) trip function for reliable overcurrent protection. The breaker features a bolt-on connection, measures 2.961 x 2.87 x 4.1000 inches, and weighs 3 lb, with a robust construction suitable for 3-phase power systems. It is certified to UL, CSA, IEC, and NOM standards, ensuring compliance with global safety requirements. This circuit breaker is intended for industrial and commercial applications, including panelboard mounting, and operates effectively within a temperature range of -13°F to 158°F (-25°C to 70°C).

Key Features & Specifications
  • Type: Molded Case
  • Family: VL Series
  • Country of Origin: Mexico
  • Dimensions: 2.961 x 2.87 x 4.1000
  • Weight: 3 lb
  • Functions: LI - Long-Time and Instantaneous
  • Voltage Rating: 600V
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Certification: UL, CSA, IEC, NOM
  • AIC rating: 100kA@240V
  • Phase: 3
  • Temp Rating: -13°F - 158°F (-25°C - 70°C)
  • Current Rating: 60A
  • Amperage: 60A
  • Voltage: 600V AC
  • Mounting Type: Bolt-On
  • Interrupt Rating: 100kA @ 240V
  • Frame Size: 125A
  • Trip Unit: Thermal Magnetic
  • Certification: UL489
  • Series: LGB
  • Frequency: 50/60 Hz


Siemens LGB3B060 - Molded Case 60A 600V 3-Pole
