Edison Fuses LESRK4.5 - RK5 Fuse 4.5A 600V (Time-Delay)
Edison Fuses LESRK4.5 - RK5 Fuse 4.5A 600V (Time-Delay)

Edison Fuses LESRK4.5 - RK5 Fuse 4.5A 600V (Time-Delay)

Edison Fuses
Price
Save $-24.92
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

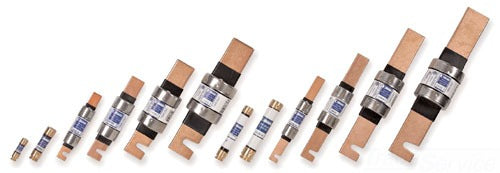

Edison Fuses LESRK4.5 is a current-limiting, time-delay fuse designed for the protection of motor circuits, transformers, and other inductive loads. It is rated for 600 Volts AC/DC and carries a continuous current rating of 4.5 Amperes, providing reliable overcurrent protection. The fuse measures 5 inches in length by 0.81 inches in both height and width, with a weight of 1.6 lb, and features a compact, ferrule-style construction for easy installation. This device complies with UL and CSA standards, ensuring adherence to stringent safety and performance requirements. Typical industrial applications include motor control centers, panelboards, and branch circuit protection in manufacturing and processing facilities.

Key Features & Specifications
  • Type: Current-limiting, time-delay fuse for motor and transformer protection
  • Voltage Rating: 600 V AC/DC
  • Current Rating: 4.5 A
  • Dimensions: 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
  • Weight: 1.6 lb
  • Standards: UL Listed, CSA Certified
  • Applications: Motor circuit protection, transformer protection, branch circuit protection
  • Fuse Class: RK5
  • Mounting: Ferrule
  • Interrupting Rating: 200 kA RMS Sym.


Product Identification
  • UPC: 78263454822
  • GTIN: 00782634548225
