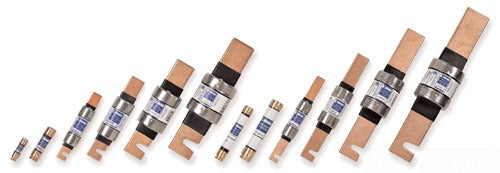

Edison Fuses LESRK2 - Class RK2 Fuse 2A 250V (Ferrule)
Edison Fuses LESRK2 - Class RK2 Fuse 2A 250V (Ferrule)

Edison Fuses LESRK2 - Class RK2 Fuse 2A 250V (Ferrule)

Edison Fuses
Price
Save $-23.71
/
Condition
  • Low stock - 8 items left
  • Backordered, shipping soon
Call for Price
Edison Fuses LESRK2 is a Class RK2 dual-element, time-delay fuse designed for overcurrent protection of motors, transformers, and other inductive loads. This fuse is rated for 250 volts AC and 2 amperes, providing reliable short-circuit and overload protection. It measures 5 inches in length with a diameter of 0.81 inches, constructed with a ferrule-type end cap and a sand-filled body for arc quenching. The LESRK2 complies with UL 248-12 and CSA standards for branch circuit protection. Typical applications include motor control centers, panelboards, and industrial machinery requiring high inrush current tolerance.

Key Features & Specifications
  • Type: Class RK2, dual-element, time-delay, ferrule-style fuse
  • Voltage Rating: 250 V AC
  • Current Rating: 2 A
  • Dimensions: 5 in x 0.81 in (Length x Diameter)
  • Standards: UL 248-12, CSA C22.2 No. 248.12
  • Applications: Motor protection, transformer protection, industrial control circuits
  • Fuse Class: RK2
  • Mounting: Ferrule clip
  • Hz: 50/60 Hz
  • Interrupting Rating: 200,000 A RMS Sym.
  • Weight: 1.6 lb


Product Identification
  • UPC: 78263454814
  • GTIN: 00782634548140
