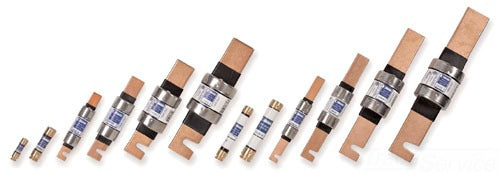

Edison Fuses LESRK1.25 - Class RK1 Fuse 1.25A 250V
Edison Fuses LESRK1.25 - Class RK1 Fuse 1.25A 250V

Edison Fuses LESRK1.25 - Class RK1 Fuse 1.25A 250V

Edison Fuses
Price
Save $-26.56
/
Condition
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Edison Fuses LESRK1.25 is a Class RK1 dual-element, time-delay fuse designed for overcurrent protection of motors, transformers, and other inductive loads. It is rated for 1.25 amperes at 250 volts AC/DC, providing superior current-limiting performance to reduce let-through energy. The fuse measures 5 inches in length with a 0.81-inch diameter, constructed with a compact, rejection-style body for secure mounting in Class RK1 fuse holders. It meets UL and CSA standards for branch circuit protection, ensuring reliable operation under fault conditions. This fuse is commonly used in industrial control panels, motor starter circuits, and feeder protection applications.

Key Features & Specifications
  • Type: Class RK1, dual-element, time-delay fuse
  • Voltage Rating: 250 V AC/DC
  • Current Rating: 1.25 A
  • Dimensions: 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
  • Standards: UL Listed, CSA Certified
  • Applications: Motor protection, transformer protection, feeder circuits
  • Fuse Class: RK1
  • Mounting: Rejection-style fuse holder
  • Weight: 1.6 lb


Product Identification
  • UPC: 78263454810
  • GTIN: 00782634548102
