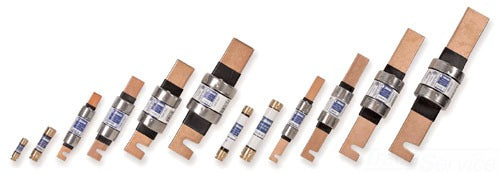

Edison Fuses LENRK0.4 - RK5 Fuse 0.4A 250V (Ferrule)
Edison Fuses LENRK0.4 - RK5 Fuse 0.4A 250V (Ferrule)

Edison Fuses LENRK0.4 - RK5 Fuse 0.4A 250V (Ferrule)

Edison Fuses
Price
Save $-20.80
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
The Edison Fuses LENRK0.4 is a high-performance current-limiting fuse designed for the primary protection of motor circuits and transformers against short circuits and overloads. This fuse is rated for 0.4 amps at 250 volts AC/DC, providing precise overcurrent interruption in a compact, non-time-delay configuration. Constructed with a ferrule end-contact design and a fiberglass body, it measures approximately 1.5 inches in length and 0.41 inches in diameter, weighing 5.19 lb per unit. It complies with UL 248-1 and CSA C22.2 standards, ensuring reliable operation in industrial control panels, motor starters, and branch circuit protection applications.

Key Features & Specifications
  • Type: Current-limiting, non-time-delay ferrule fuse
  • Voltage Rating: 250 V AC/DC
  • Current Rating: 0.4 A
  • Dimensions: 1.5 in length, 0.41 in diameter
  • Standards: UL 248-1, CSA C22.2
  • Applications: Motor circuit protection, transformer protection, branch circuit protection
  • Fuse Class: RK5
  • AIC Rating: 200 kA AC
  • Connection: Ferrule end contacts
  • Mounting: Clip or holder
  • Weight: 5.19 lb


Product Identification
  • UPC: 782001420809
