Schneider Electric LC2D09B7V - TeSys Deca Reversing Contactor 9A 24V AC
Schneider Electric LC2D09B7V - TeSys Deca Reversing Contactor 9A 24V AC

Schneider Electric LC2D09B7V - TeSys Deca Reversing Contactor 9A 24V AC

Schneider Electric
Price
Save $17.98
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

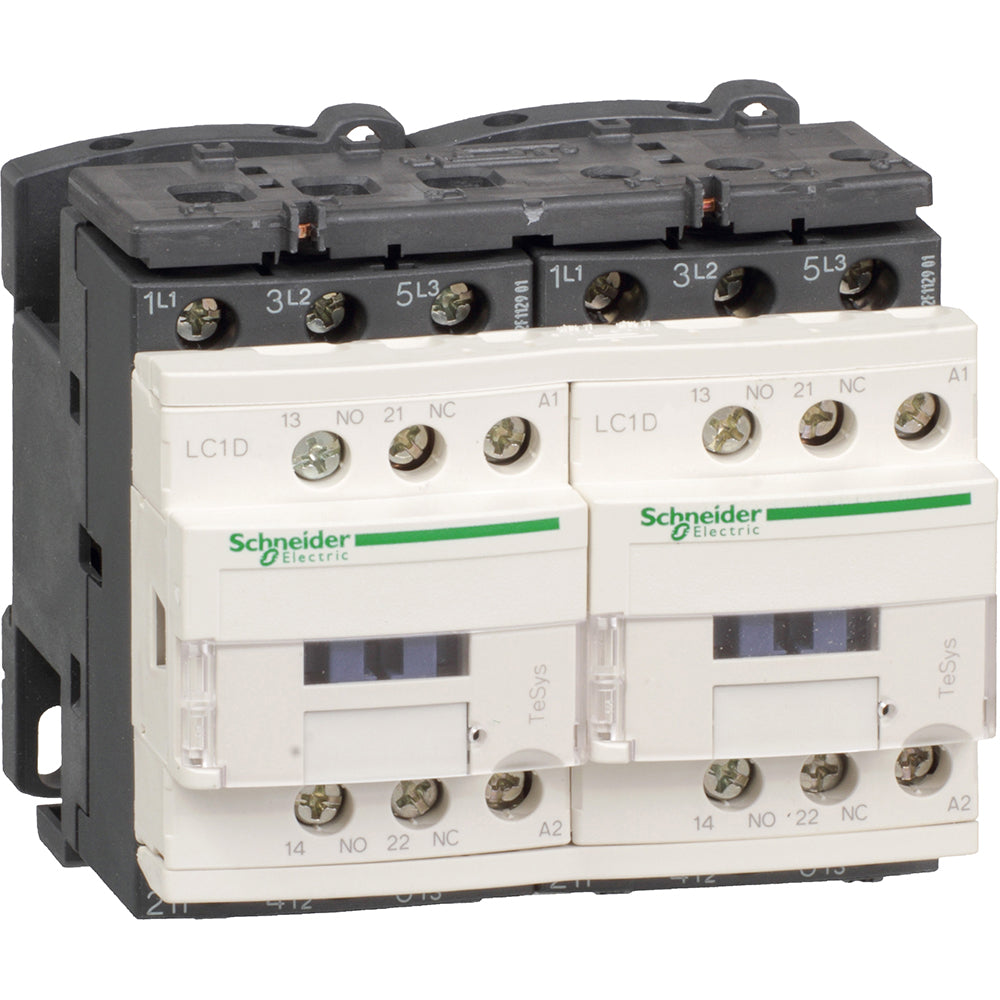

Schneider Electric LC2D09B7V is a TeSys Deca reversing contactor designed for motor control applications, providing reliable switching and protection for industrial and HVAC systems. This 3-pole contactor features a 24V AC coil, is rated for up to 9A at 440V AC-3, and supports motor control up to 4kW at 400V with built-in mechanical and electrical interlocking for safe operation. The unit measures 3.54 in x 3.54 in, weighs 1.803 lb, and utilizes screw clamp terminals for straightforward installation. It is certified to multiple international standards including BV, CCC, CSA, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, and UL Listed. Typical applications include motor control in industrial machinery and HVAC systems requiring reversing functionality.

Key Features & Specifications
  • Manufacturer: Schneider Electric
  • Series: TeSys Deca
  • Type: Reversing Contactor
  • Application: Motor Control
  • Poles: 3
  • Aux Contacts: 3 NO
  • Amperage: 9A
  • Voltage: 440V AC-3
  • Coil Voltage: 24V AC
  • Frequency: 50/60 Hz
  • Motor Rating: 4kW @ 400V
  • Interlocking: Mechanical and Electrical
  • Mounting Type: Screw Clamp Terminals
  • Dimensions: 3.54 in x 3.54 in
  • Weight: 1.803 lb
  • Country of Origin: France
  • Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed


Product Identification
  • UPC: 785901207368
  • GTIN: 03389110407136
