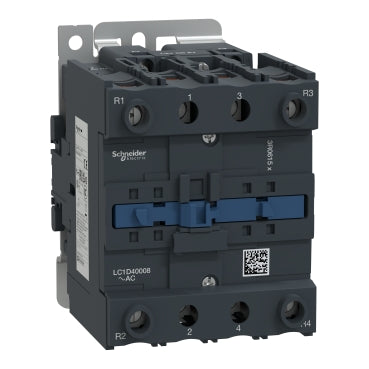

Schneider Electric LC1D4011B7 - 40A 3-Pole Contactor 24V Coil
Schneider Electric LC1D4011B7 - 40A 3-Pole Contactor 24V Coil

Schneider Electric LC1D4011B7 - 40A 3-Pole Contactor 24V Coil

Schneider Electric
Price
Save $-126.94
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric LC1D4011B7 is a 3-pole motor contactor from the TeSys D family designed for reliable motor control and switching applications. This contactor is rated for 40A at up to 600V AC, with a coil voltage of 24V AC/DC, and supports three-phase motors with horsepower ratings of 10 HP at 230V and 30 HP at 460V. It features a compact construction weighing 5.19 lb, includes 1 normally open and 1 normally closed auxiliary contact, and is suitable for DIN rail or panel mounting with screw clamp terminals offering IP20 finger-safe protection. The device is certified to multiple international standards including IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14, and others such as BV, CCC, DNV, and GOST. Typical industrial applications include controlling three-phase motors in conveyors, pumps, fans, and other machinery requiring reliable switching and long operational life.

Key Features & Specifications
  • Type: Contactor
  • Manufacturer: Schneider Electric
  • Family: TeSys D
  • Poles: 3
  • Current Rating: 40A
  • Voltage Rating: 600V AC
  • Coil Voltage: 24V AC/DC
  • Phase: 3
  • Weight: 5.19 lb
  • Auxiliary Contacts: 1 NO + 1 NC
  • Horsepower Rating: 10 HP at 230V, 30 HP at 460V (3-phase)
  • Mounting Type: DIN rail or panel mount
  • Terminal Type: Screw clamp with IP20 finger-safe protection
  • Durability: 10 million mechanical cycles, 1.5 million electrical cycles (AC-3)
  • Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed


Product ID: LC1D4011B7
