Schneider Electric LC1D115P5 - IEC Contactor 115A 230VAC
Schneider Electric LC1D115P5 - IEC Contactor 115A 230VAC

Schneider Electric LC1D115P5 - IEC Contactor 115A 230VAC

Schneider Electric
Price
Save $-309.29
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

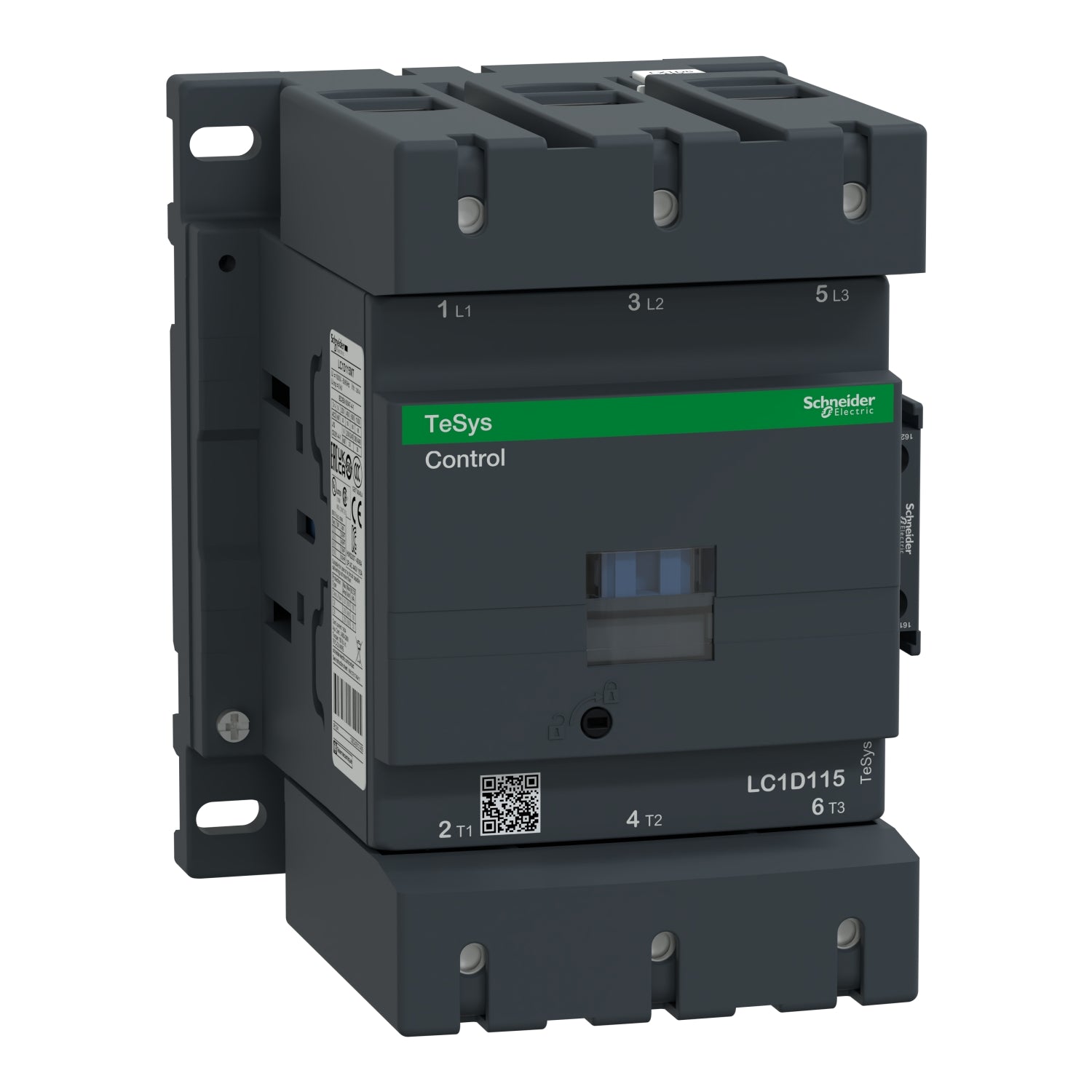

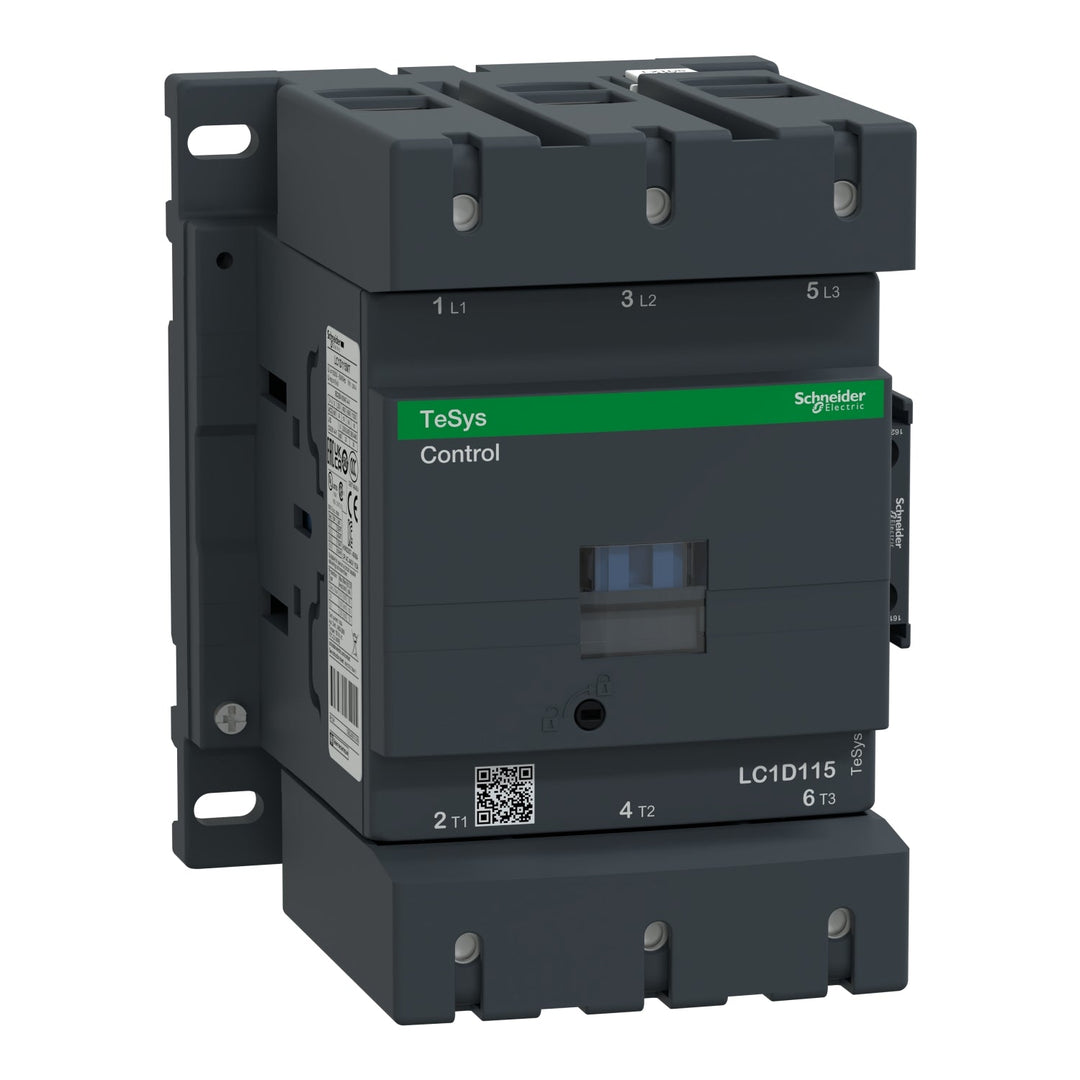

The Schneider Electric LC1D115P5 is a 3-pole IEC contactor from the TeSys D family, designed for switching and controlling three-phase motors and other electrical loads in industrial applications. This contactor is rated for a maximum operating voltage of 600V AC and a continuous current of 115A, with a 230 VAC coil, and supports motor horsepowers ranging from 30 hp at 200/208 V AC to 100 hp at 575/600 V AC. It features three normally open auxiliary contacts, weighs 5.39 lb, and is constructed for robust performance in demanding environments. The LC1D115P5 complies with multiple international standards including IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2 No 14, and is certified by BV, CCC, CSA, DNV, GL, GOST, LROS, and RINA. This contactor is suitable for motor starting, lighting control, and power distribution in industrial machinery, HVAC systems, and process automation.

Key Features & Specifications
  • Type: IEC Contactor, TeSys D family
  • Voltage Rating: 600V AC
  • Current Rating: 115A
  • Poles: 3
  • Coil Voltage: 230 VAC (minimum and maximum)
  • Aux Contacts: 3 NO
  • Horse Power: 30 hp at 200/208 V AC, 40 hp at 230/240 V AC, 75 hp at 460/480 V AC, 100 hp at 575/600 V AC (3-phase motors)
  • Phase: 3
  • Weight: 5.39 lb
  • Country of Origin: Czechia
  • Certification: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
  • Applications: Motor starting, lighting control, power distribution in industrial machinery, HVAC, process automation


Product Identification
  • UPC: 38911037721
  • GTIN: 03389110377217
