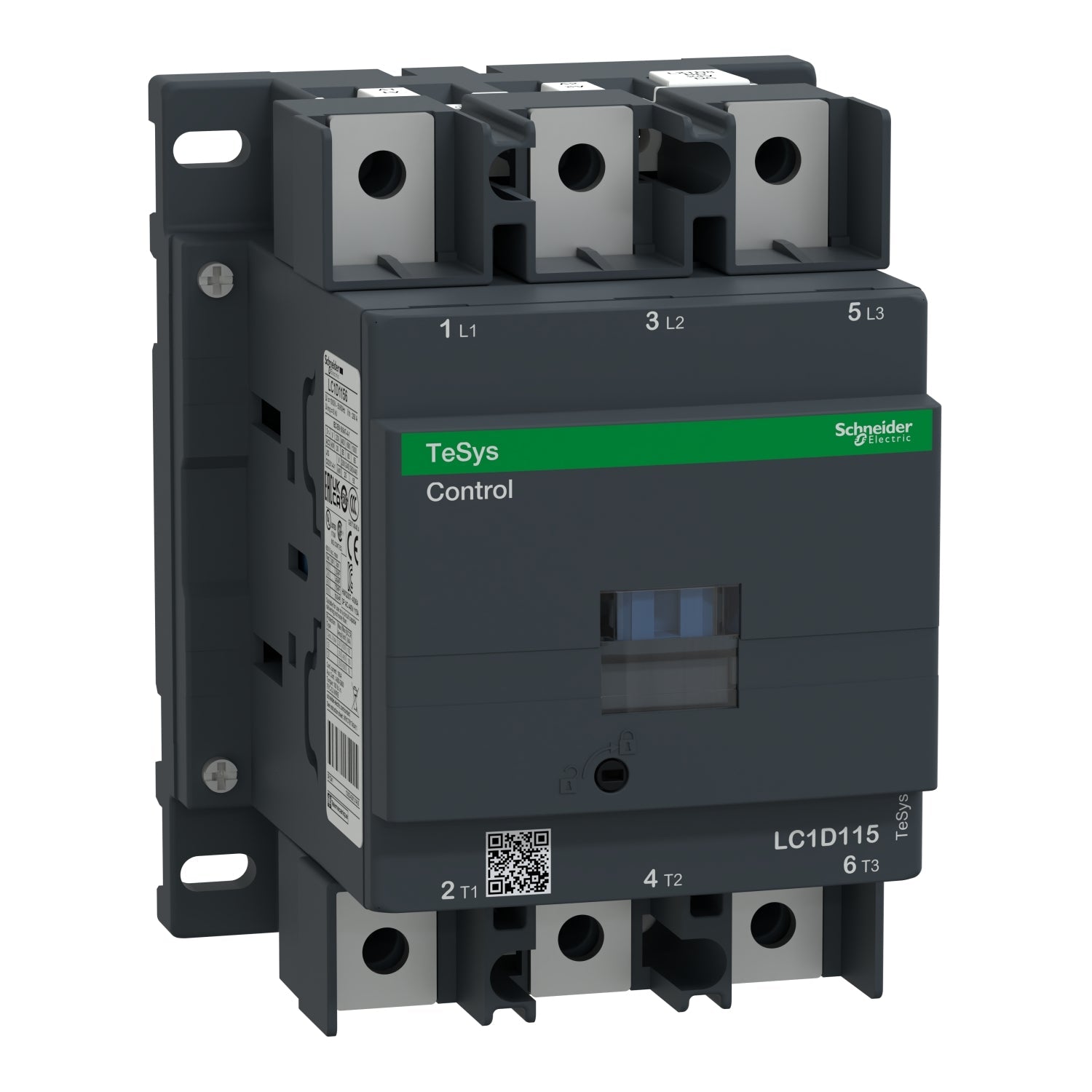

Schneider Electric LC1D1156BD - IEC Contactor 115A 24VDC Coil
Schneider Electric LC1D1156BD - IEC Contactor 115A 24VDC Coil

Schneider Electric LC1D1156BD - IEC Contactor 115A 24VDC Coil

Schneider Electric
Price
Save $704.68
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric LC1D1156BD is a TeSys D IEC contactor designed for motor control and switching applications. This 3-pole device is rated for 115A continuous current at 600V AC, with a 24 VDC coil and includes 3 normally open auxiliary contacts. The contactor measures 120 mm x 158 mm, weighs 4.806 lb, and is manufactured in Czechia. It is certified to multiple international standards including BV, CCC, CSA, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, and UL 508. Typical applications include controlling three-phase motors, with horsepower ratings of 30 hp at 200/208 V, 40 hp at 230/240 V, 75 hp at 460/480 V, and 100 hp at 575/600 V AC.

Key Features & Specifications
  • Type: TeSys D IEC Contactor with 24 VDC coil
  • Voltage Rating: 600V AC
  • Current Rating: 115A
  • Dimensions: 120 mm x 158 mm
  • Standards: BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed
  • Applications: Motor control for three-phase motors up to 100 hp at 575/600 V
  • Poles: 3
  • Aux Contacts: 3 NO
  • Coil Voltage Minimum: 24 VDC
  • Coil Voltage Maximum: 24 VDC
  • Phase: 3
  • Horse Power: 30 hp at 200/208 V, 40 hp at 230/240 V, 75 hp at 460/480 V, 100 hp at 575/600 V
  • Weight: 4.806 lb
  • Country of Origin: Czechia


Product Identification
  • UPC: 038911038029
  • GTIN: 03389110380293
