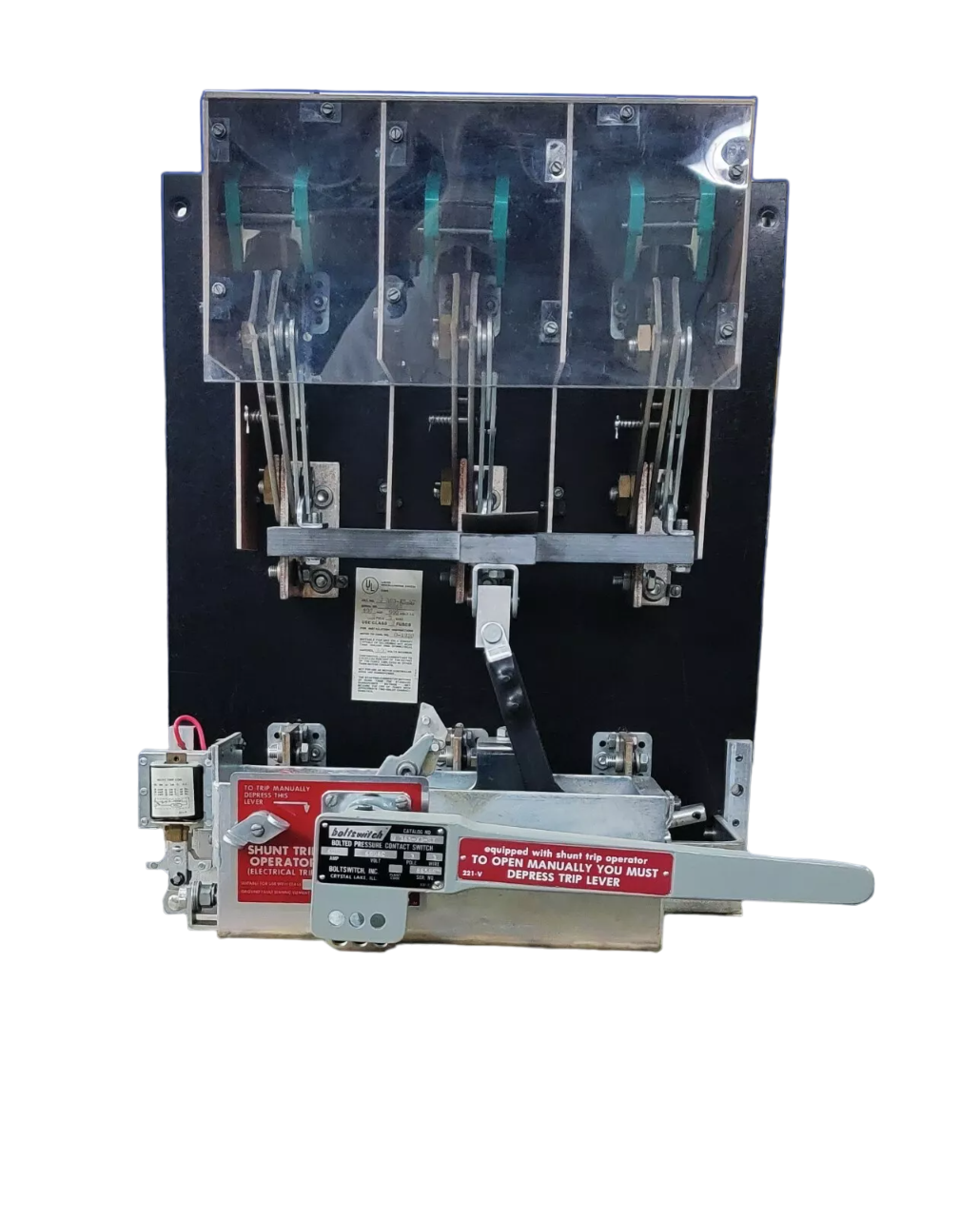

Boltswitch LB267WOL - Fusible Bolted Pressure Switch 800A@600V (200kA AIC)

Boltswitch LB267WOL is a fusible bolted pressure switch designed for high-current industrial power distribution systems. This single-configuration switch features a 600V AC voltage rating and 800A current capacity with a 200kA interrupting rating at 600V for robust circuit protection. The NEMA 1-rated enclosure houses two poles in a compact TB-compatible frame, constructed with Class L fuse compatibility for enhanced safety. Compliant with industrial electrical standards, this unit is engineered for switchgear, motor control centers, and heavy-duty power management applications where reliable isolation is critical.

Key Features & Specifications

• Type: Fusible bolted pressure switch (LB Series) with Class L fuse compatibility
• Voltage Rating: 600V AC
• Current Rating: 800A
• Configuration: Single
• Poles: 2
• AIC Rating: 200kA@600V
• Phase: 1
• NEMA Rating: 1
• Compatible Frames: TB
• Weight: 250 lb
• Applications: Industrial switchgear, motor control centers, power distribution
