Schneider Electric LADR23 - Time Delay Auxiliary Contact Block 10A
Schneider Electric LADR23 - Time Delay Auxiliary Contact Block 10A

Schneider Electric LADR23 - Time Delay Auxiliary Contact Block 10A

Schneider Electric
Price
Save $15.17
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

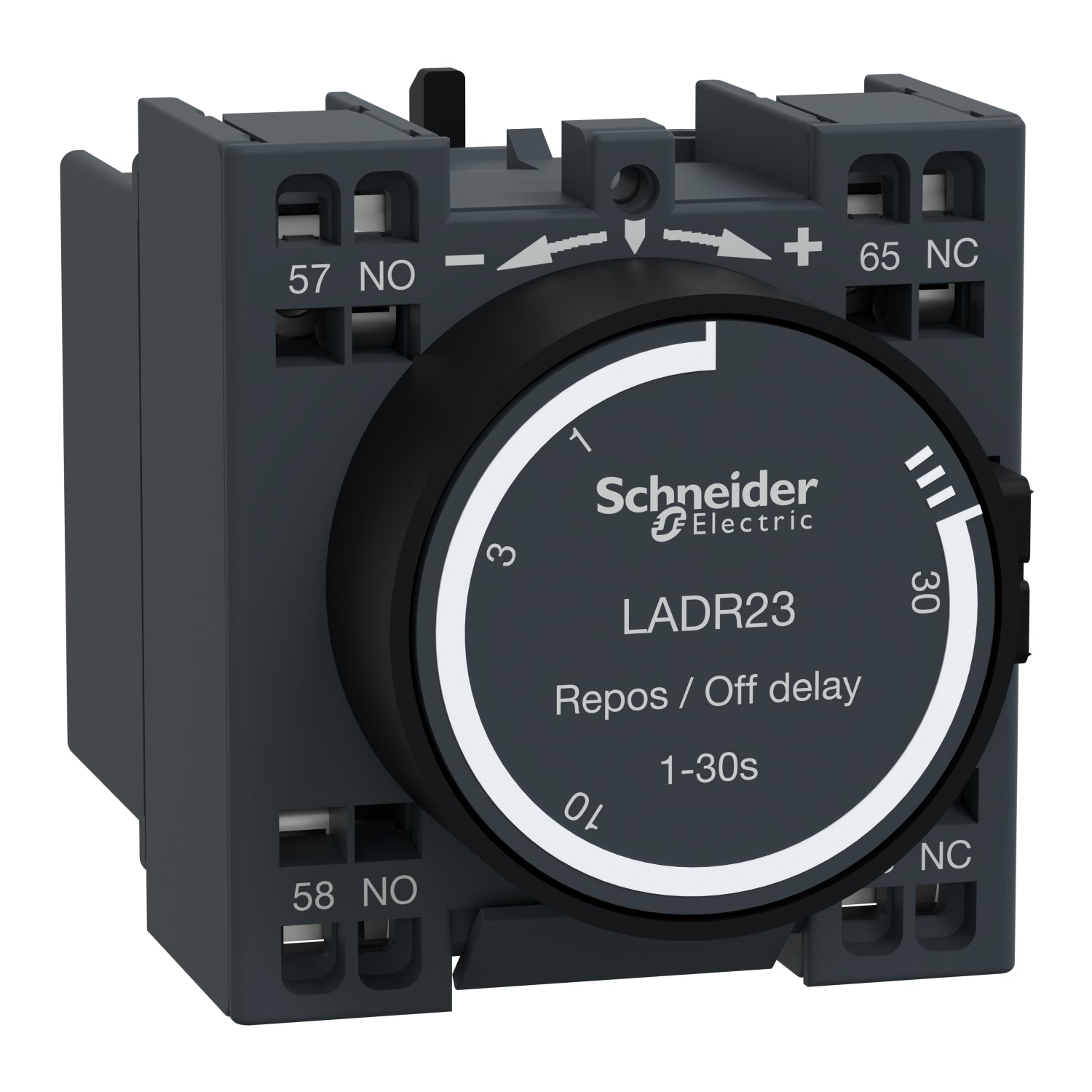

Schneider Electric LADR23 is a time delay auxiliary contact block designed for precise off-delay timing control in motor and industrial applications. This device is rated for 10 A and 690 V AC, with a configurable off-delay range of 1 to 30 seconds, and features 1 NO + 1 NC auxiliary contacts. It measures 1.9 in (48 mm) in height, 1.7 in (44 mm) in width, and 2.4 in (61 mm) in depth, weighs 0.169 lb, and is constructed with spring terminals for front mounting. The LADR23 is certified to CB, UL, CSA, CCC, EAC, UKCA, GB/T 14048.5, and EN/IEC 60947-5-1 standards, ensuring reliable performance in demanding environments. Typical applications include industrial control panels and HVAC systems requiring precise timing functions.

Key Features & Specifications
  • Type: Time Delay Auxiliary Contact Block
  • Series: TeSys D
  • Contacts: 1NO + 1NC
  • Amperage Rating: 10 A
  • Voltage Rating: 690 V AC
  • Mounting Type: Front
  • Terminal Type: Spring Terminals
  • Time Delay: Off Delay 1-30 s
  • Operating Cycles: 5,000,000
  • Operating Temperature: -40 to 158 °F
  • Configuration: Time delay
  • Dimensions: 1.9 in (48 mm) x 1.7 in (44 mm) x 2.4 in (61 mm) (Height x Width x Depth)
  • Weight: 0.169 lb
  • Certification: CB;UL;CSA;CCC;EAC;UKCA;GB/T 14048.5;EN/IEC 60947-5-1
  • Country of Origin: France


Product Identification
  • UPC: 038911082176
  • GTIN: 03389110821765
