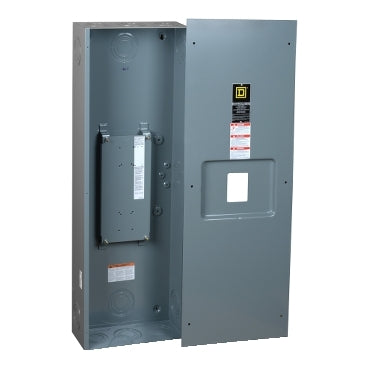

Square D LA400F - Safety Disconnect Switch 400A 600V (L Frame Industrial Grade)

Square D LA400F is a heavy-duty safety disconnect switch designed for reliable circuit isolation and load-breaking operations in industrial power distribution systems. This 600V AC rated switch handles 400A continuous current and features robust L Frame construction with dimensions of 13.74 x 45.63 x 42.24 inches and a weight of 24.8 lb. The switch carries UL and CSA certifications with NEMA 1 enclosure rating and operates within a temperature range of -25 to 70°C (-13 to 158°F). It provides essential safety disconnection for industrial machinery, motor control centers, and power distribution equipment, compatible with LAL and LHL frame configurations.

Key Features & Specifications

• Type: LA Series Safety Disconnect Switch
• Voltage Rating: 600V AC
• Current Rating: 400A
• Dimensions: 13.74" x 45.63" x 42.24"
• Weight: 24.8 lb
• Standards: UL, CSA Certified
• Applications: Industrial power distribution, motor control centers, machinery disconnects
• Switch Type: Safety Disconnect
• Configuration: Fixed Mount
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Phase: Single Phase
• Voltage: 600V
• Amperage: 400A
• Connection: Bolt-on
• Poles: 3
• Protection: Load Break
• Functions: Circuit Isolation
• Frame Size: L Frame
• NEMA Rating: 1
• Enclosure: NEMA 1
• Certification: UL, CSA
• Compatible Frames: LAL, LHL
• Country of Origin: Mexico

Product Identification

• UPC: 785901508007
• GTIN: 00785901508007
