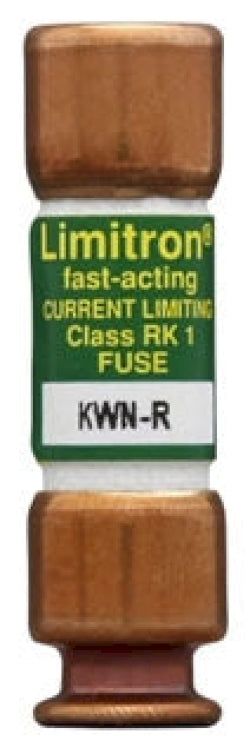

Eaton Bussmann KWN-R-1 - RK1 Fuse 1A 250V (200kA AIC)

Bussmann
Price
Save $-15.26
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann KWN-R-1 is a low-voltage current-limiting fuse from the Limitron family, designed to provide reliable overcurrent protection for industrial control circuits and equipment. It features a 1A current rating and a 250V AC voltage rating, with a compact ferrule-connected body measuring 2 inches in length by 0.56 inches in diameter. Constructed as an RK1 class fuse, it offers a high 200kA interrupting rating at 250V AC for superior short-circuit protection, and is engineered for use in a variety of industrial panelboards and motor control applications.

Key Features & Specifications
  • Type: Limitron KWN, RK1 Class, current-limiting, low-voltage fuse
  • Voltage Rating: 250V AC
  • Current Rating: 1A
  • Dimensions: 2 in L x 0.56 in D (Height x Width)
  • Standards: UL Listed, CSA Certified (inferred by class rating)
  • Applications: Protection of industrial control circuits, panelboards, and motor controls
  • AIC rating: 200,000 Amps @ 250V AC
  • Connection: Ferrule
  • Barrels: 1
  • Class Rating: RK1
  • Weight: 0.4 lb


Product Identification
  • UPC: 051712407502
  • GTIN: 00051712407502
