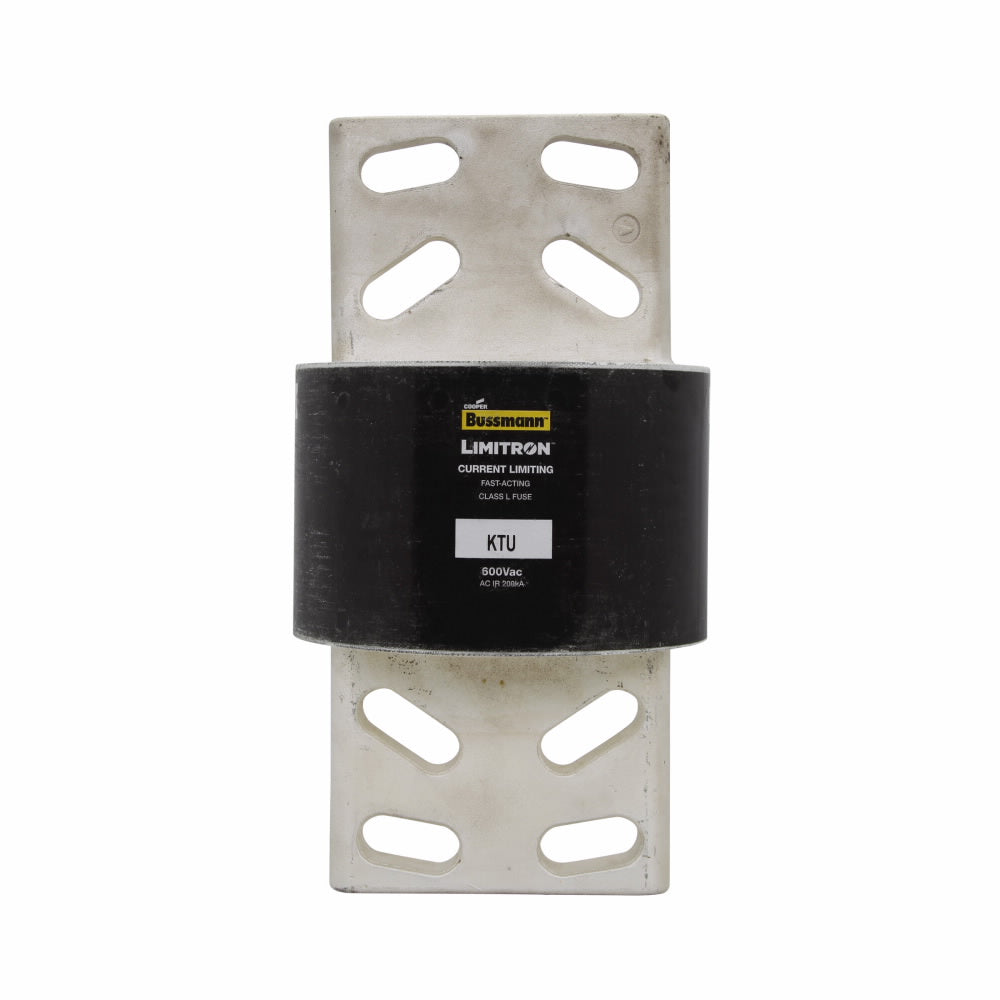

Bussmann KTU-3000 - Class L Fuse 3000A 600V (200kA AIC)

Bussmann KTU-3000 is a Class L low-voltage fuse from the LIMITRON family designed for high-current circuit protection in industrial power distribution systems. It features a 600V AC voltage rating with a 3000A current rating and provides 200kA interrupting capacity at 600V for reliable fault protection. The fuse employs a single-barrel construction with bolt-in connection terminals and measures 10.75 inches in length with a 5-inch diameter, weighing 20 lb for robust industrial installation. This fuse meets industry standards for Class L fuses and is typically applied in main service entrances, feeder circuits, and industrial control panels requiring high interrupting capacity protection.

Key Features & Specifications

• Type: Class L LIMITRON fast-acting fuse with single-barrel construction
• Voltage Rating: 600V AC
• Current Rating: 3000A
• Dimensions: 10.75" L × 5" W × 5" H
• Standards: Class L fuse standards
• Applications: Industrial power distribution, main service entrances, feeder circuits
• AIC Rating: 200kA@600V
• Connection: Bolt-In
• Barrels: 1
• Class Rating: L
• Diameter: 5 inches
• Weight: 20 lb

Product Identification

• UPC: 051712613309
• GTIN: 00051712613309
