Bussmann KTU-1600 - Class L Fuse 1600A 600V (200kA AIC)

Bussmann
Price
Save $1,415.02
/
Title
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

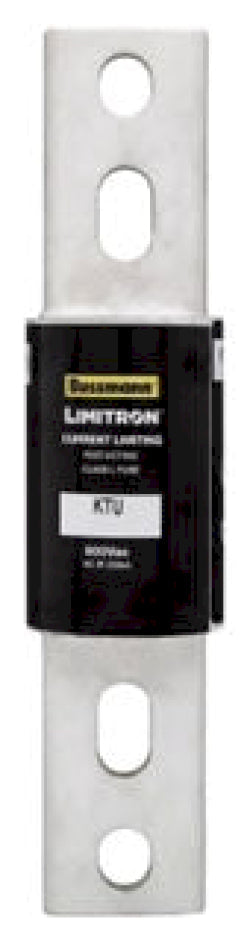

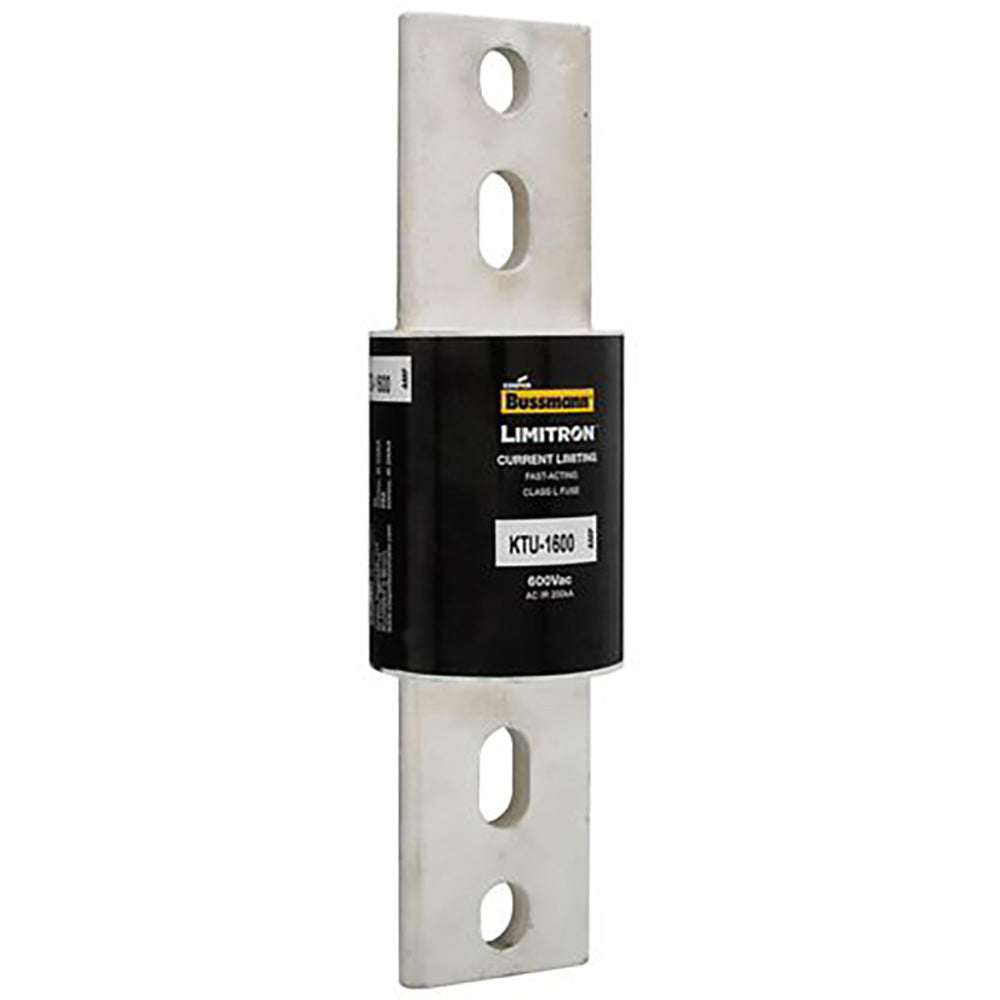

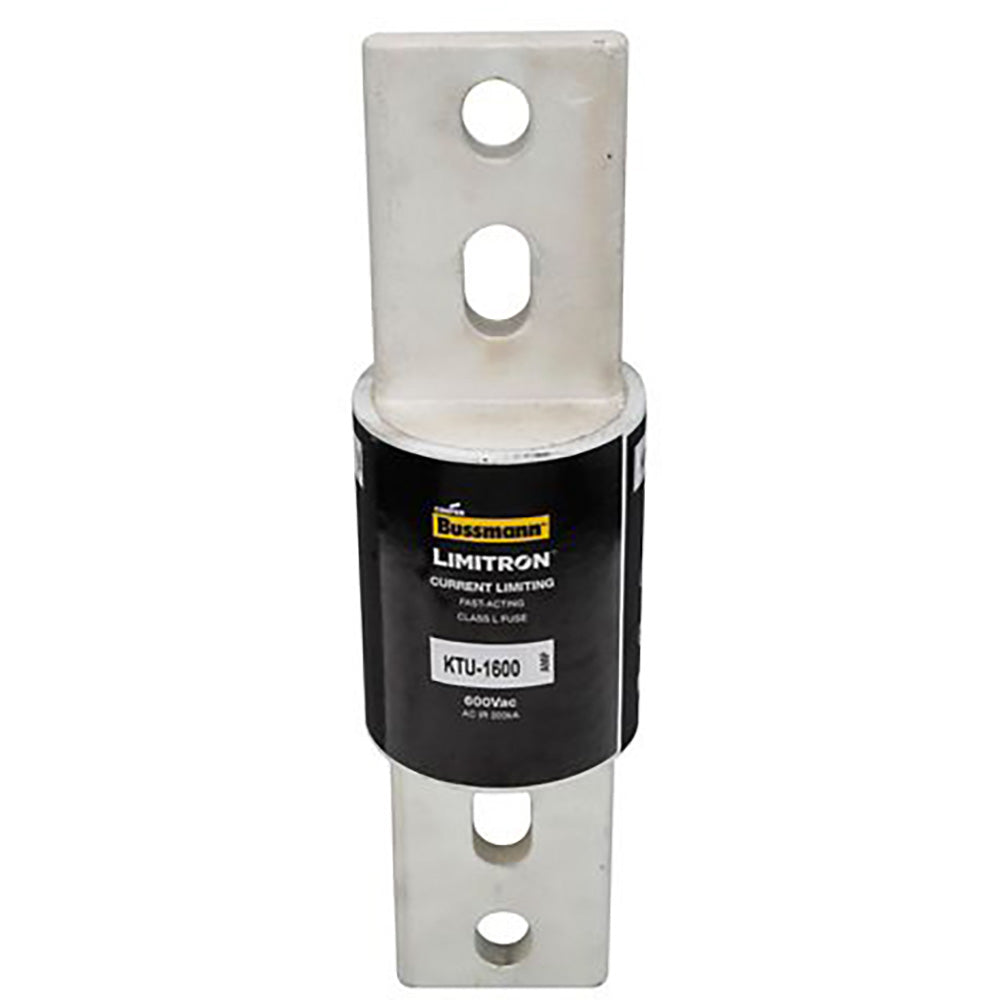

The Bussmann KTU-1600 is a Class L, bolt-in low-voltage fuse from the Limitron family, engineered to provide high-current protection for industrial power distribution systems. It features a 1600A current rating and a 600V AC voltage rating, with an interrupting capacity of 200kA to safely clear high-level faults. The fuse is constructed as a single-barrel unit with a 3-inch diameter and overall dimensions of 10.75" x 3" x 3", weighing 6 lb, and is manufactured in Mexico. It complies with key industry standards, including UL 248-10 and CSA C22.2 No. 248.10, certified under Guide JDDZ for Class L fuses. Typical applications include service entrance equipment, main disconnects, and feeder circuits in industrial facilities and commercial buildings.

Key Features & Specifications
  • Type: Class L, single-barrel, current-limiting fuse (Limitron family)
  • Voltage Rating: 600V AC
  • Current Rating: 1600A
  • Dimensions: 10.75 in (Length) x 3 in (Height) x 3 in (Width)
  • Weight: 6 lb
  • Diameter: 3 in
  • Standards: CE, UL 248-10 (Guide JDDZ), CSA C22.2 No. 248.10 (Class 1422-02)
  • AIC Rating: 200kA @ 600V
  • Connection: Bolt-In
  • Class Rating: L
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712613163
  • GTIN: 00051712613163
