Eaton Bussmann KTS-R-8 - RK1 Fuse 8A 600V (200kA AIC)

Bussmann
Price
Save $84.95
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

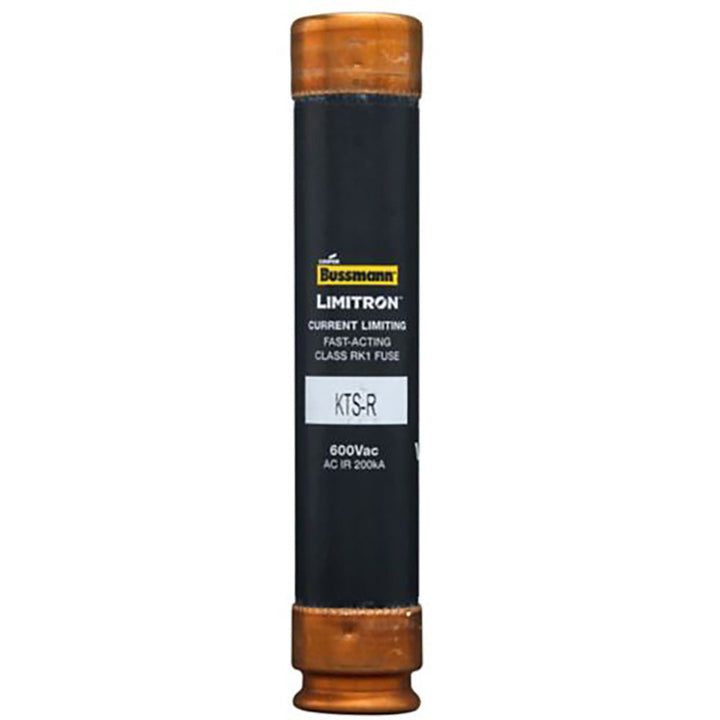

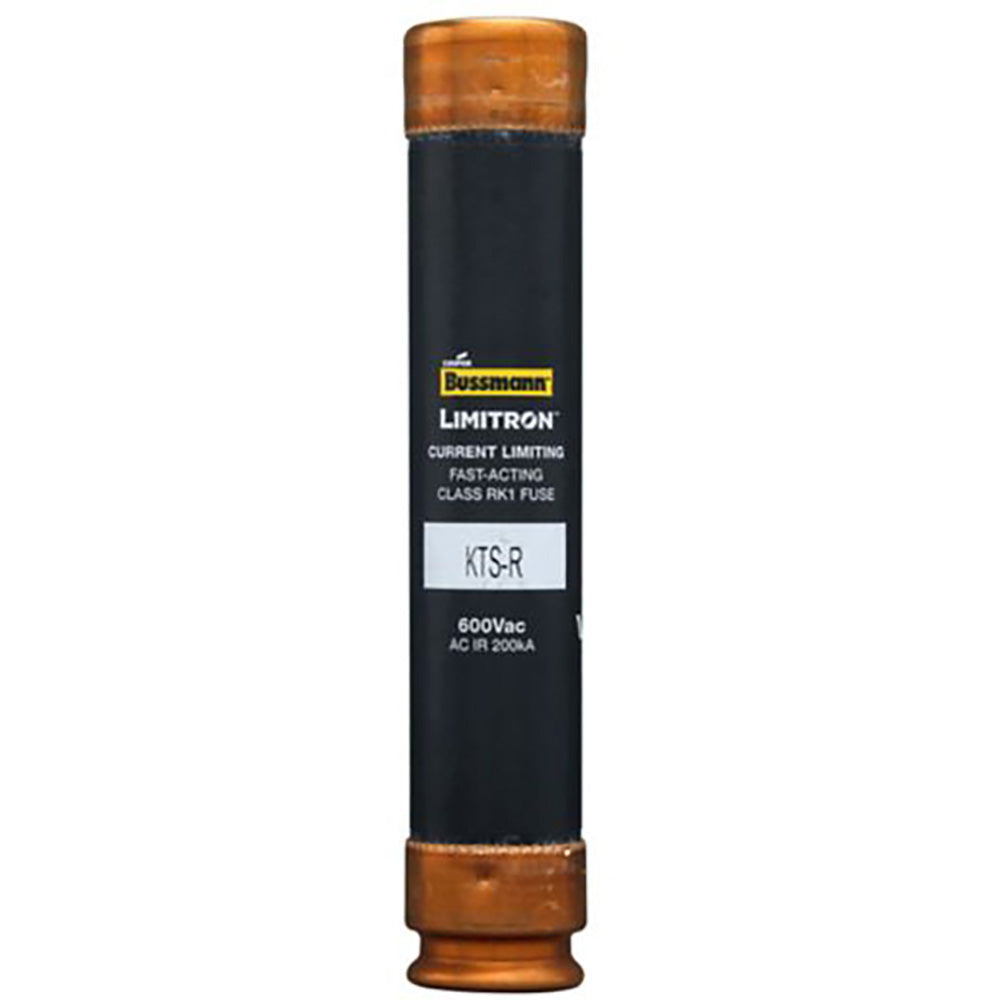

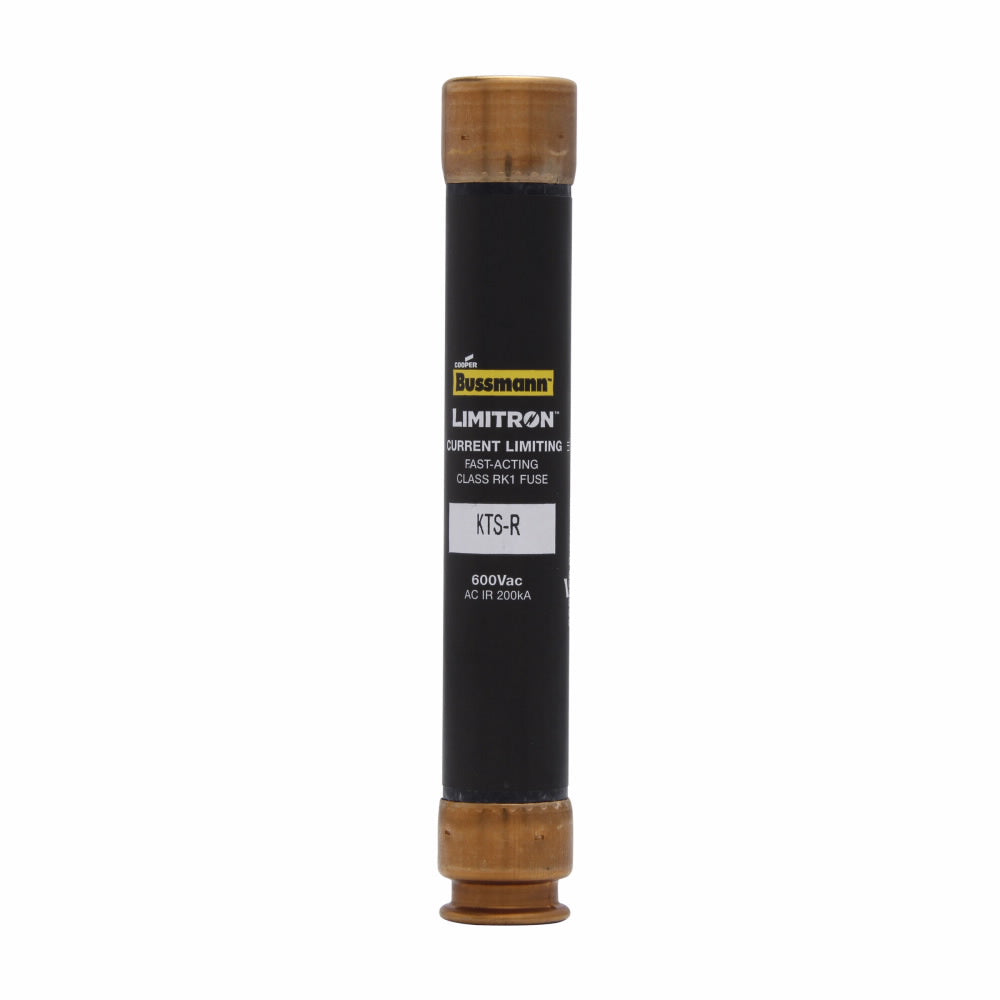

Eaton Bussmann KTS-R-8 is a low-voltage current-limiting fuse designed for branch circuit protection in industrial electrical systems. It provides a 600V AC rating with an 8A current rating and a high 200kA interrupting capacity at 600V for reliable fault protection. The fuse features a single-barrel RK1 class construction with a 0.81-inch diameter and a 5-inch length, built with a time-delay characteristic to prevent nuisance tripping from motor startups. It complies with industry standards for current-limiting fuses, ensuring safe operation in demanding environments. Typical applications include protecting motor circuits, transformers, and feeder circuits in panelboards and switchgear.

Key Features & Specifications
  • Type: Low Voltage Fuse, KTS-R, LIMITRON family, current-limiting time-delay, single barrel
  • Voltage Rating: 600V AC
  • Current Rating: 8A
  • Dimensions: 5 in L x 0.8 in H x 0.8 in W (127mm x 20.3mm x 20.3mm)
  • Standards: RK1 Class Rating
  • Applications: Industrial branch circuit protection for motors, transformers, and feeders
  • AIC rating: 200kA @ 600V
  • Diameter: 0.81 in (20.6 mm)
  • Class Rating: RK1
  • Barrels: 1
  • Weight: 0.15 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712417327
  • GTIN: 00051712417327
