Bussmann KTS-R-60 - RK1 Class Fuse 60A 600V (200kA AIC)

Bussmann
Price
Save $3,667.65
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

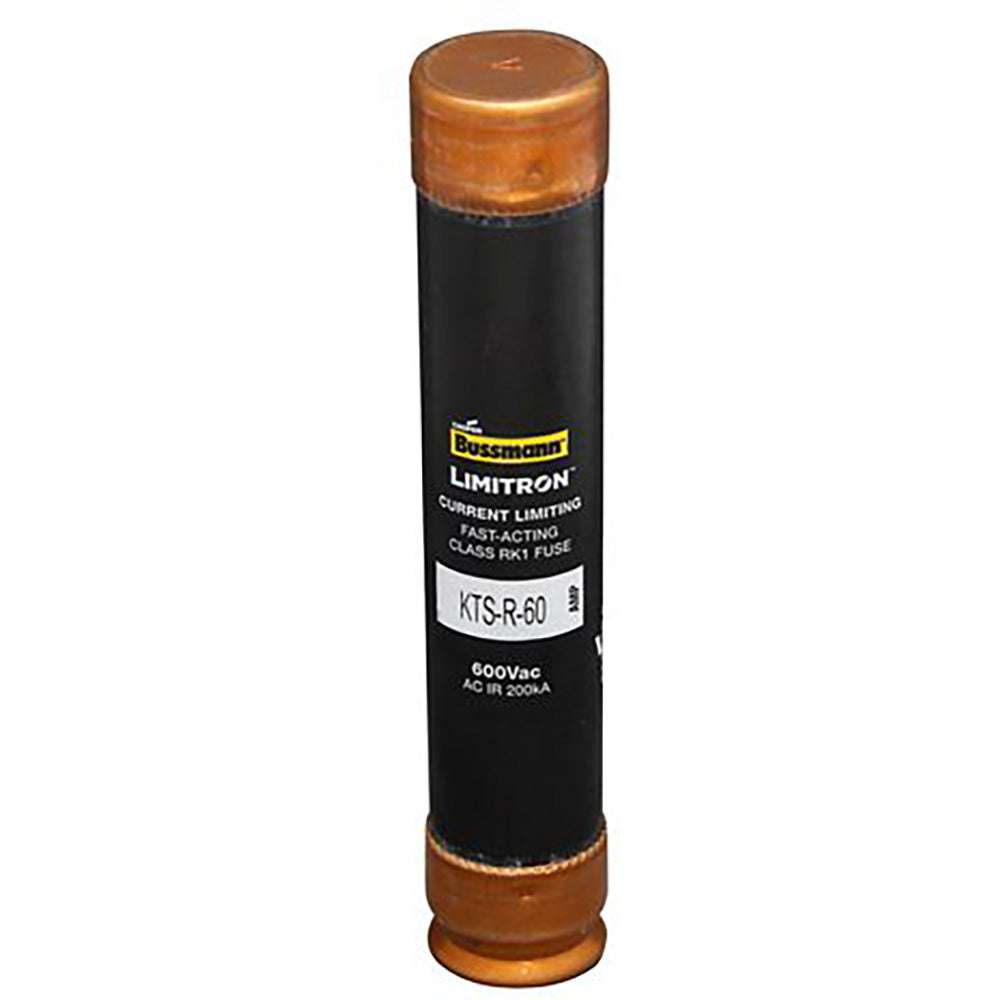

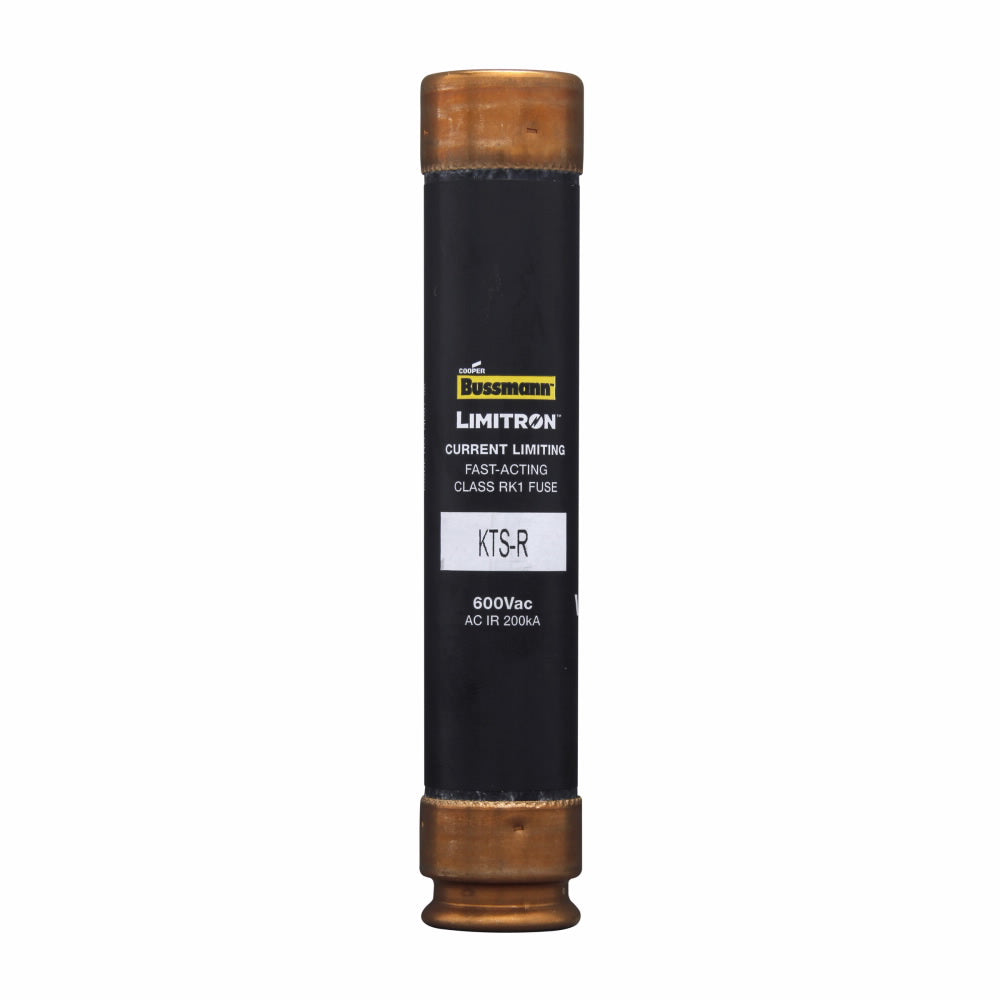

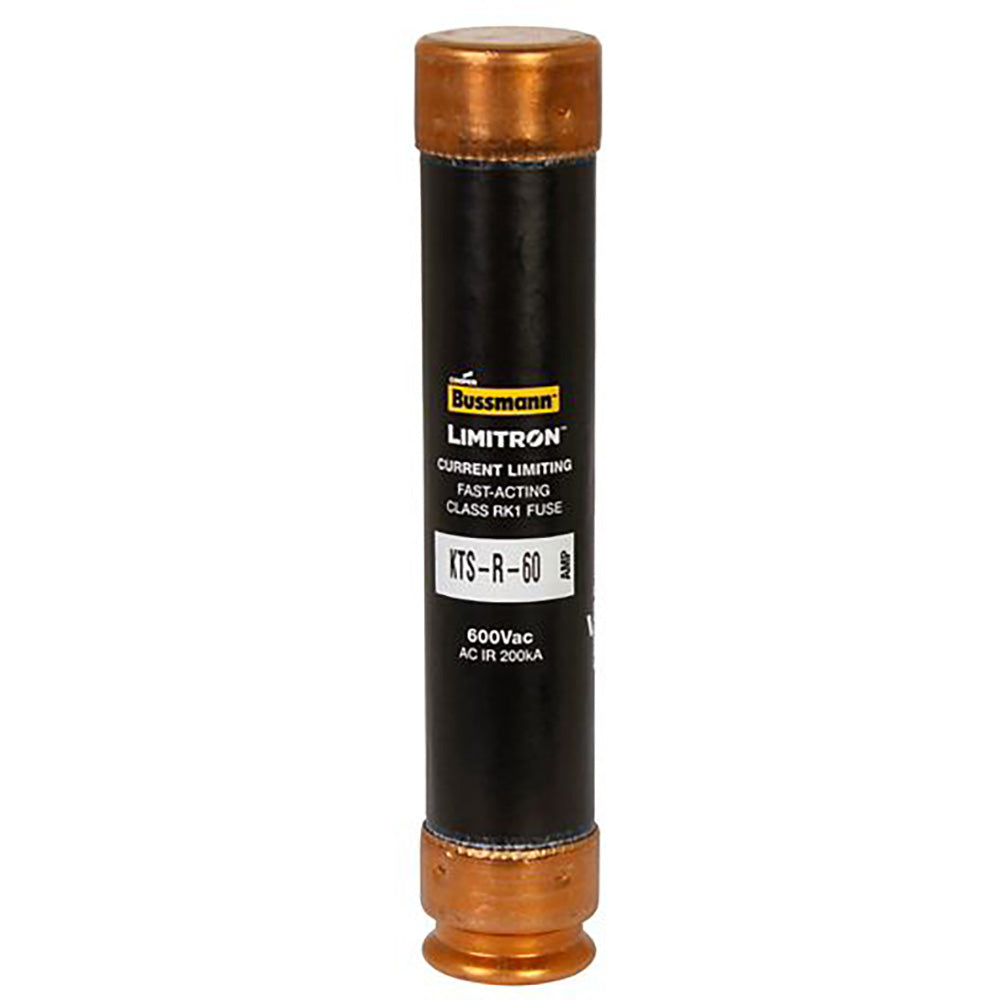

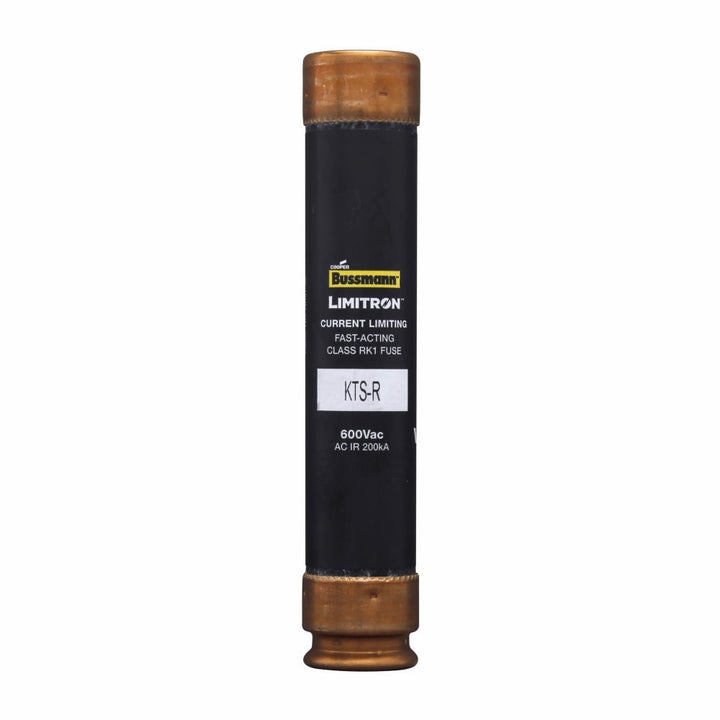

Bussmann KTS-R-60 is a low-voltage current-limiting fuse from the LIMITRON family, designed to provide high-interrupting capacity protection for industrial electrical circuits. It features a 600V AC rating and a 60A current rating, with a compact single-barrel construction measuring 5.5 inches in length and 1.06 inches in diameter. The fuse is certified to UL 248-12 and CSA C22.2 No. 248.12 standards, ensuring reliable performance and compliance with industry safety requirements. Its 200kA interrupting rating at 600V makes it suitable for safeguarding motor circuits, feeders, and branch circuits where high fault currents are present.

Key Features & Specifications
  • Type: KTS-R, Low Voltage, Current-Limiting, Time-Delay, RK1 Class Fuse
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 5.5 in L x 0.81 in H x 0.81 in W (1.06 in Diameter)
  • Weight: 0.33 lb
  • Standards: CE, UL 248-12 (File E4273), CSA C22.2 No. 248.12 (File 53787)
  • Applications: Motor, Feeder, and Branch Circuit Protection
  • AIC rating: 200,000 Amps @ 600V
  • Class Rating: RK1
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712417129
  • GTIN: 00051712417129
