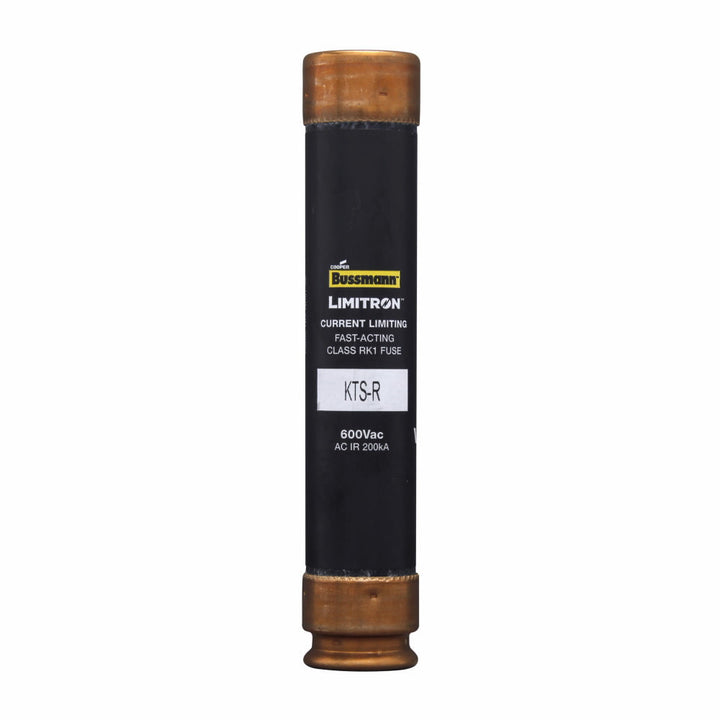

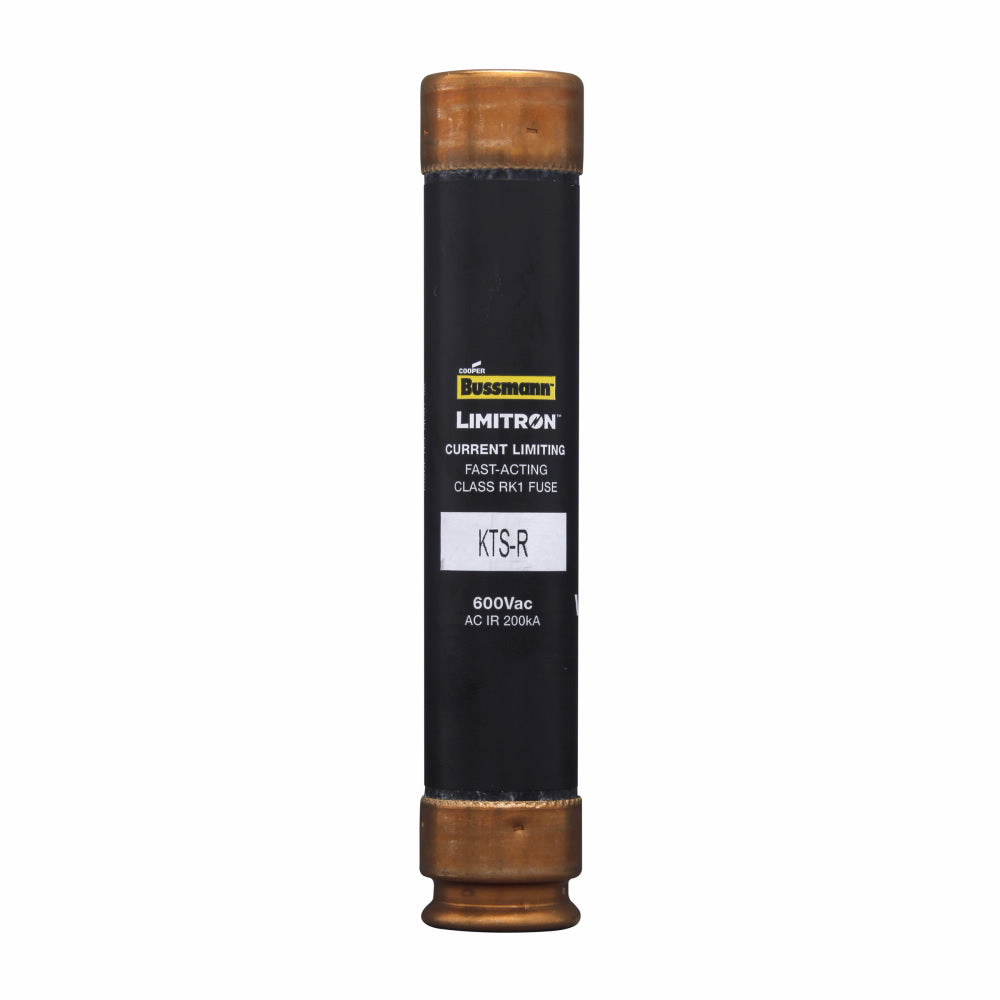

Bussmann KTS-R-50 - RK1 Fuse 50A 600V (200kA AIC)

Bussmann
Price
Save $287.48
/
Title
  • Low stock - 6 items left
  • Backordered, shipping soon
Call for Price
Bussmann KTS-R-50 is a low-voltage current-limiting fuse from the LIMITRON family, designed to provide high-interrupting capacity protection for industrial electrical circuits. It features a 50A current rating and a 600V AC voltage rating, with a compact physical construction measuring 5.5 inches in length and 1.06 inches in diameter. The fuse is certified to UL 248-12 and CSA C22.2 No. 248.12 standards, ensuring reliable performance for safeguarding motor branch circuits, feeders, and other equipment in demanding industrial environments.

Key Features & Specifications
  • Type: KTS-R, RK1 Class, current-limiting, time-delay fuse with one barrel
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 5.5 in L x 1.5 in H x 1.5 in W (1.06 in diameter)
  • Weight: 0.35 lb
  • Standards: CE, UL 248-12 (File E4273), CSA C22.2 No. 248.12 (File 53787)
  • AIC Rating: 200kA at 600V
  • Applications: Protection for motor circuits, feeders, and industrial equipment
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712417112
  • GTIN: 00051712417099
