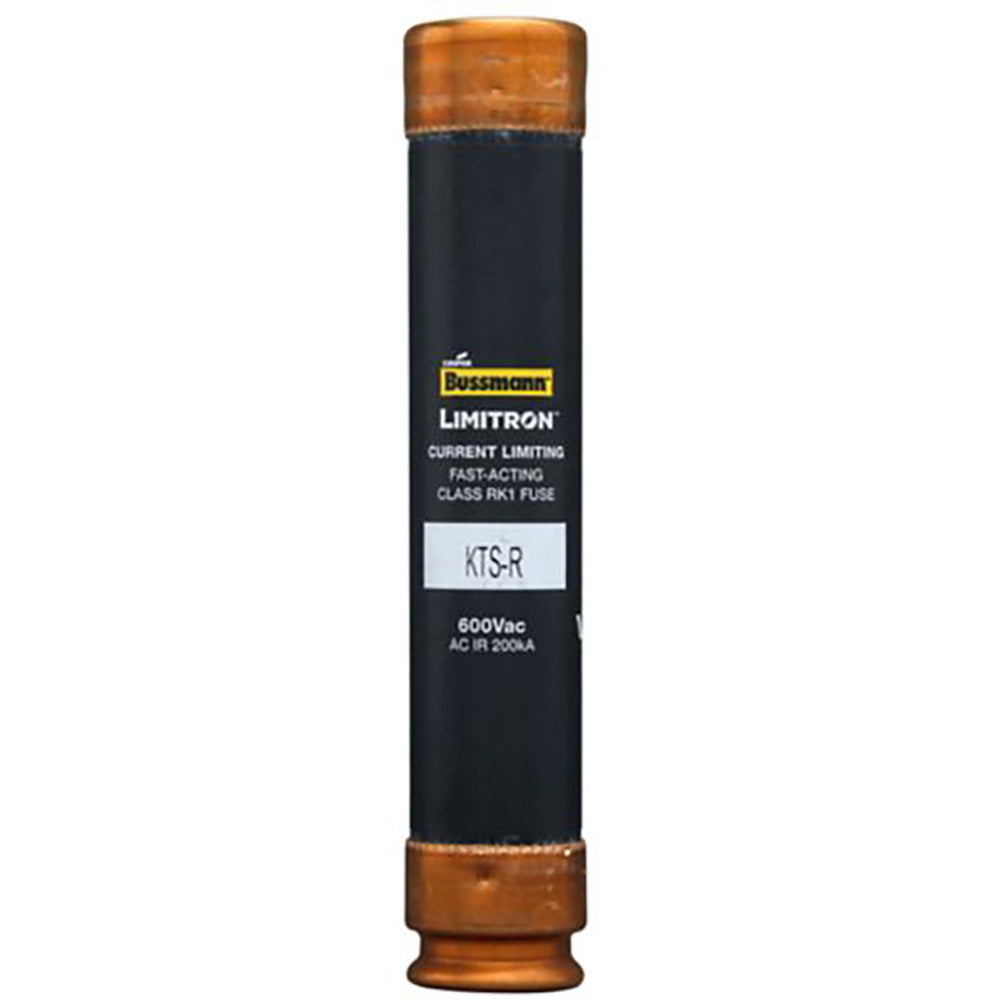

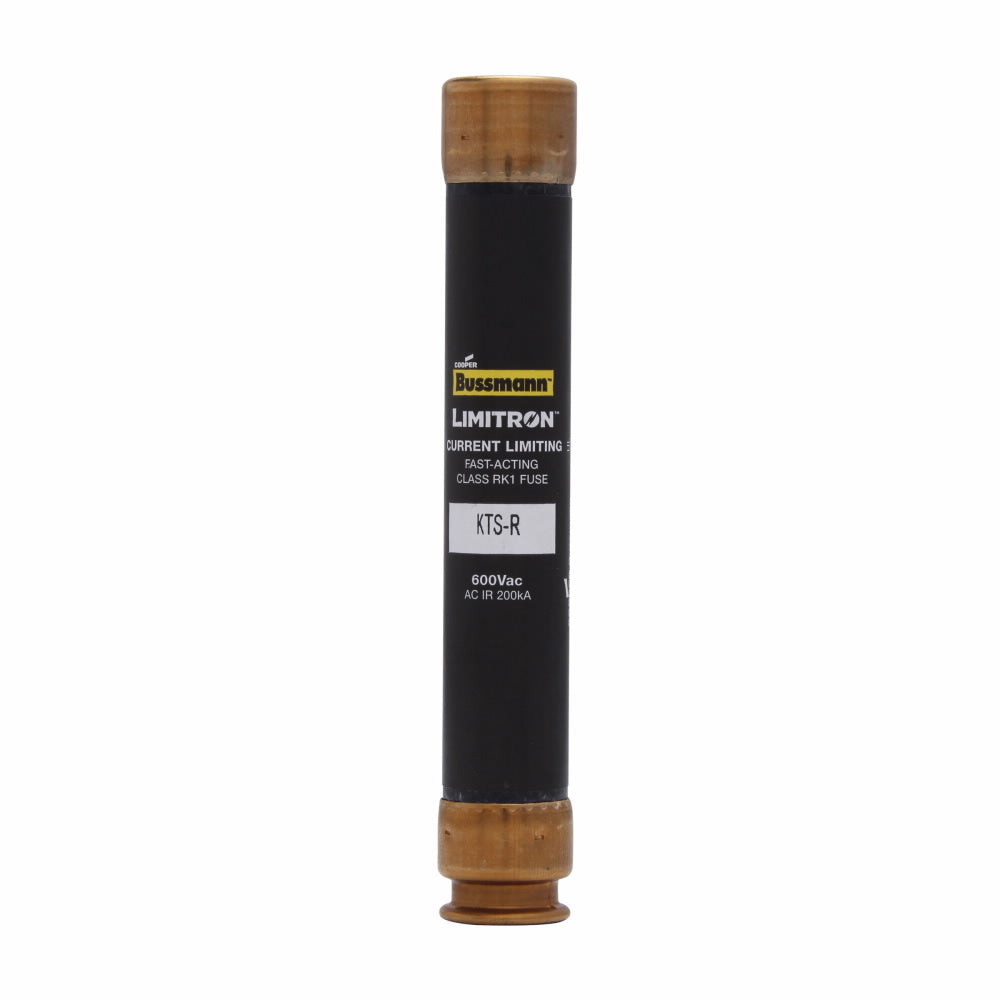

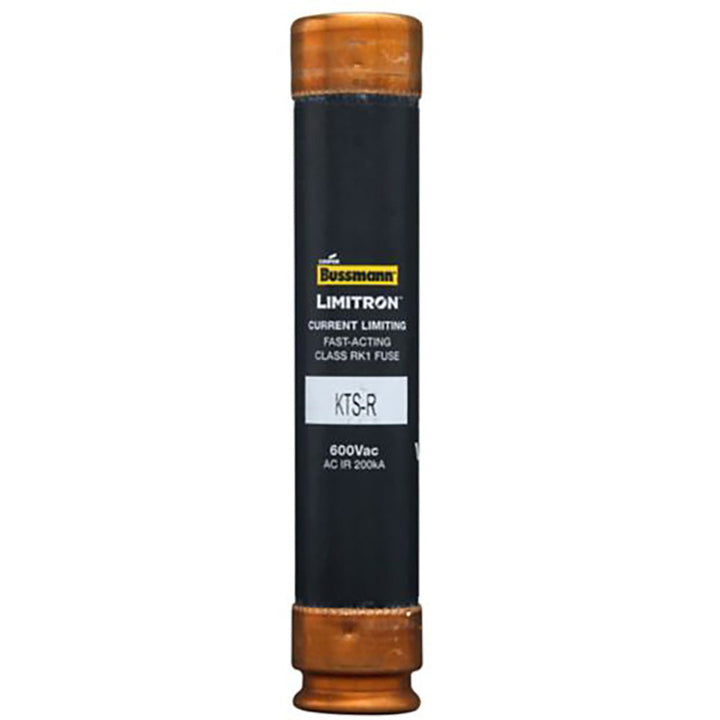

Bussmann KTS-R-5 - RK1 Class Fuse 5A 600V (200kA AIC Rating)

Bussmann KTS-R-5 is a low-voltage current-limiting fuse designed for industrial circuit protection applications. This RK1 class fuse provides 5A current protection with a 600V AC rating and features a 200kA interrupting capacity at 600V for reliable short-circuit protection. The fuse construction utilizes a single-barrel design with 0.81-inch diameter and compact 5-inch length, weighing 1 lb for straightforward installation. Manufactured to meet industry standards as part of Eaton's LIMITRON family, this fuse is engineered for demanding industrial environments including motor control centers, panelboards, and industrial control circuits where high-fault current protection is critical.

Key Features & Specifications

• Type: Current-limiting time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 5A
• Dimensions: 5" height × 0.8" width × 0.8" length
• Standards: RK1 class rating
• Applications: Industrial control circuits, motor protection, panelboards
• AIC rating: 200kA at 600V
• Diameter: 0.81 inches
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb
• Family: LIMITRON

Product Identification

• UPC: 051712416993
• GTIN: 00051712416993
