Bussmann KTS-R-350 - RK1 Class Time-Delay Fuse 350A 600V (200kA AIC)

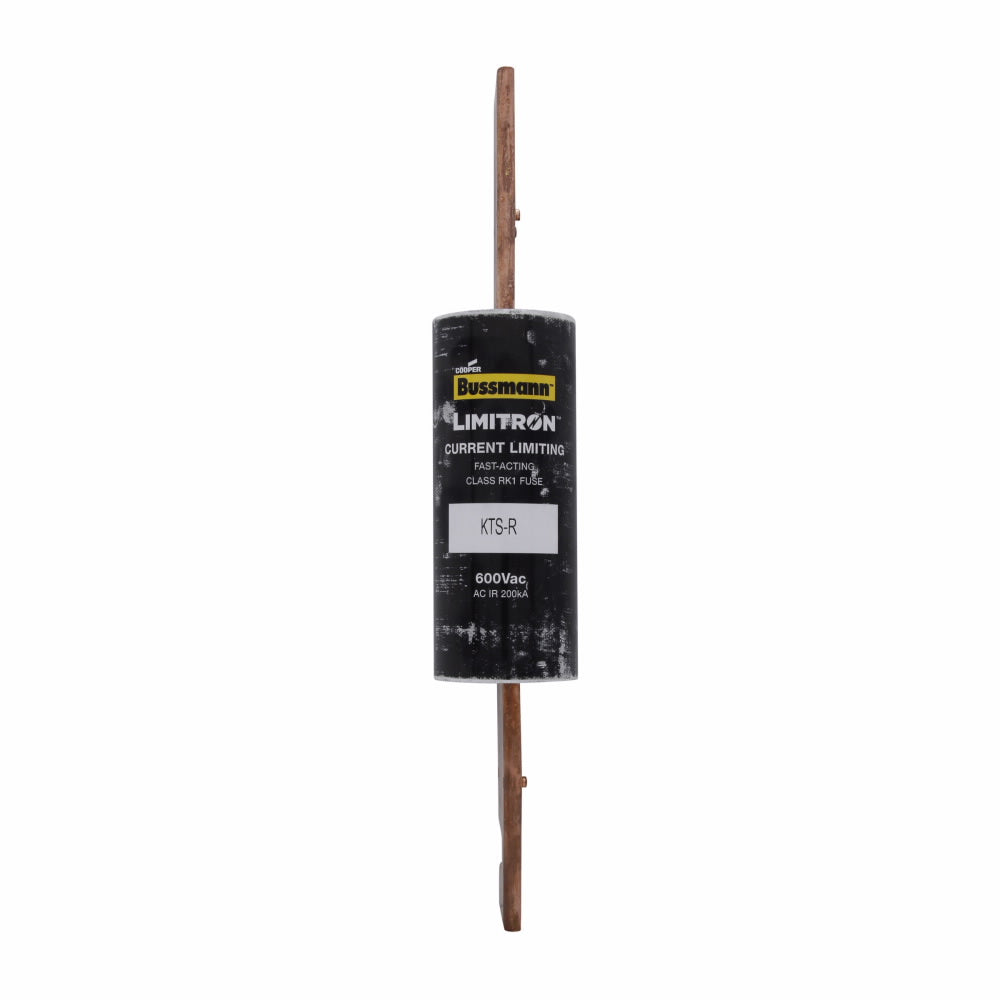

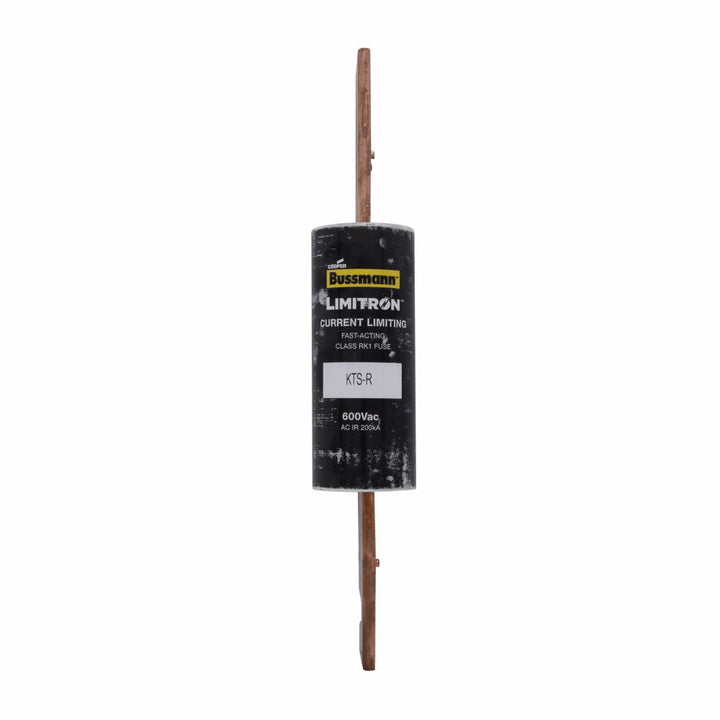

The Bussmann KTS-R-350 is a current-limiting, time-delay fuse designed to provide reliable circuit protection in industrial power distribution systems. It features a 600V AC voltage rating with a 350A current rating and offers high interrupting capacity of 200kA at 600V AC. The fuse measures 11.63 inches in length with a 2-inch diameter and weighs 5 pounds, constructed as a single-barrel RK1 class device with current-limiting characteristics. This fuse meets industry standards for current-limiting protection and is UL listed for safety compliance. Typical applications include motor branch circuits, feeder circuits, and transformer protection where time-delay characteristics and high fault current interruption are required.

Key Features & Specifications

• Type: Current-limiting time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 350A
• Dimensions: 11.63" L × 2" W × 2" H
• Standards: UL listed, RK1 class
• Applications: Motor circuits, feeder protection, transformer protection
• AIC rating: 200kA @ 600V AC
• Class Rating: RK1
• Barrels: 1
• Diameter: 2 inches
• Weight: 5 lb
• Family: LIMITRON
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 051712417242
• GTIN: 00051712417242
