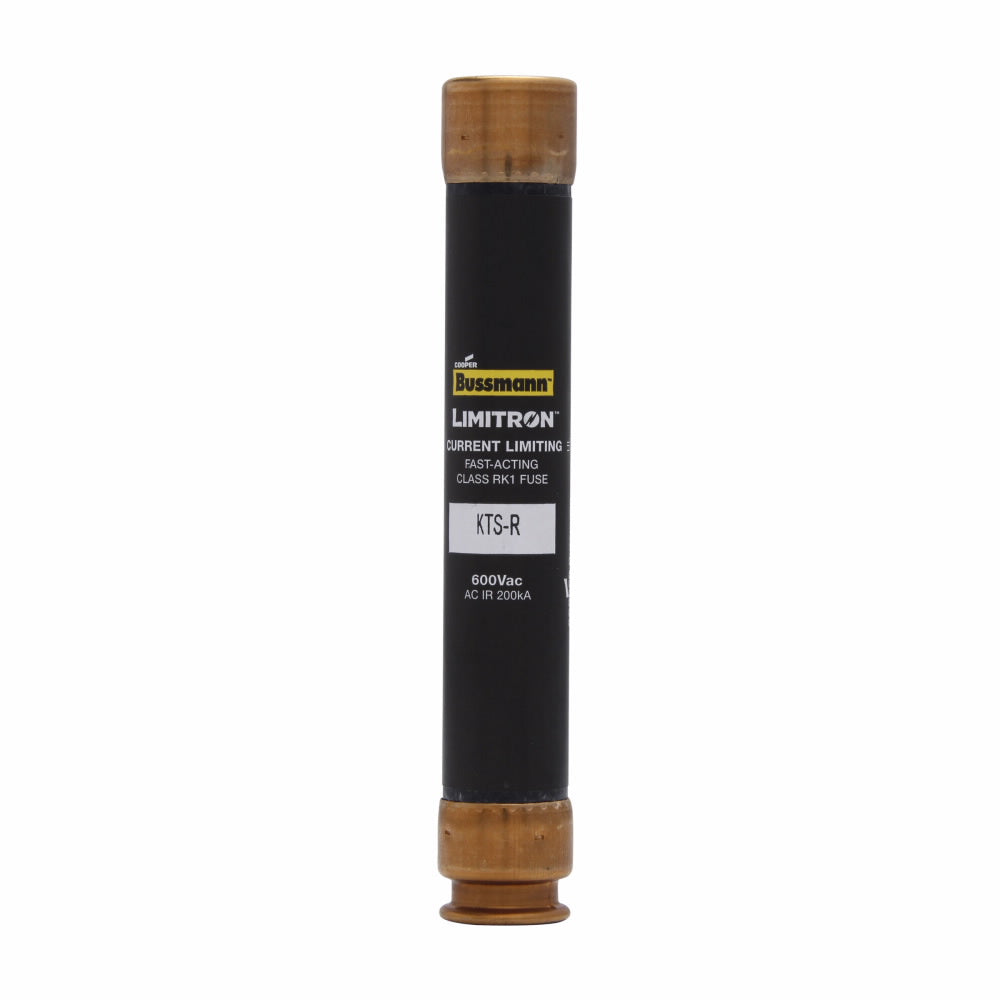

Eaton Bussmann KTS-R-25 - RK1 Class Fuse 25A 600V (200kA AIC)

Bussmann
Price
Save $1,758.35
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann KTS-R-25 is a low-voltage, current-limiting fuse from the LIMITRON family, designed to provide reliable overcurrent protection for industrial electrical circuits. It features a 25A current rating and a 600V AC voltage rating, with a high 200kA interrupting capacity at its rated voltage to safely clear severe short circuits. The fuse is constructed as a single-barrel, RK1 class device with a 0.81-inch diameter and a compact 5-inch length, built for durability and consistent performance. It complies with key industry standards, including UL 248-12 and CSA C22.2 No. 248.12, ensuring safe operation in demanding environments. Typical applications include the protection of motor circuits, transformers, and feeder circuits in industrial control panels and power distribution systems.

Key Features & Specifications
  • Type: Low-voltage, current-limiting, time-delay fuse (RK1 Class)
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Dimensions: 5 in L x 0.8 in H x 0.8 in W
  • Standards: CE, UL 248-12 (File E4273), CSA C22.2 No. 248.12 (File 53787)
  • AIC Rating: 200,000 Amps @ 600V
  • Class Rating: RK1
  • Barrels: 1
  • Diameter: 0.81 in
  • Weight: 0.15 lb


Product Identification
  • UPC: 051712417068
  • GTIN: 00051712417068
