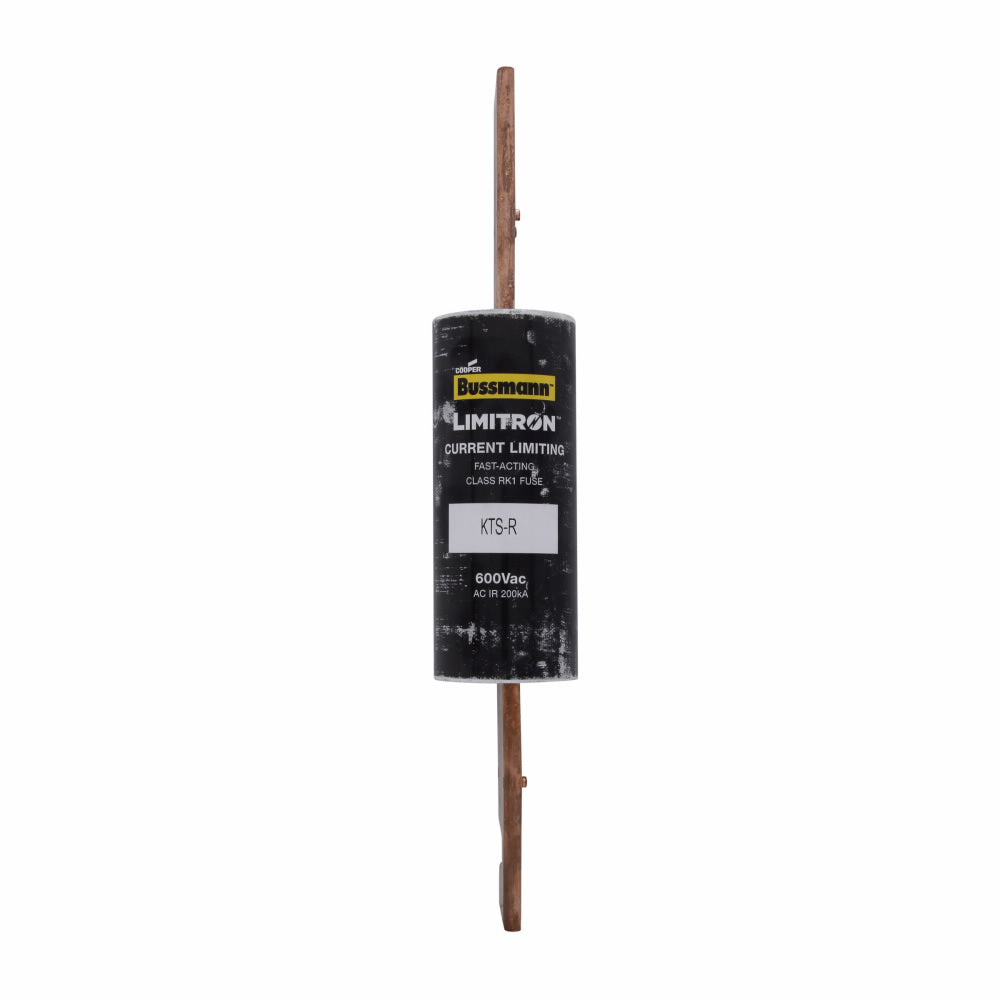

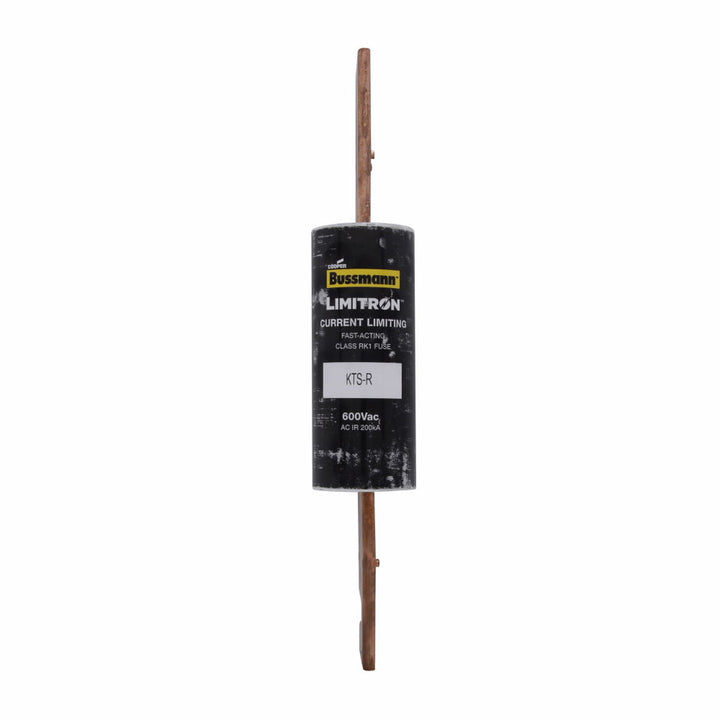

Bussmann KTS-R-225 - RK1 Class Fuse 225A (200kA Interrupting Capacity)

Bussmann KTS-R-225 is a low-voltage current-limiting fuse designed for industrial circuit protection applications. This RK1 class fuse features a 225A current rating and 600V voltage rating with a high interrupting capacity of 200kA at 600V AC. The single-barrel construction measures 11.63 inches in length with a 2-inch diameter and weighs 5 lb, featuring robust construction for reliable performance. As part of Eaton's LIMITRON family, it meets industry standards for time-delay characteristics and current limitation. Typical applications include motor branch circuits, feeder circuits, and industrial control panels where coordinated protection is required.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse, time-delay RK1 class
• Voltage Rating: 600V AC
• Current Rating: 225A
• Dimensions: 11.63" L × 2" W × 2" H
• Standards: UL/CSA listed, RK1 classification
• Applications: Motor circuits, feeder protection, industrial control panels
• AIC rating: 200kA @ 600V AC
• Barrels: 1
• Class Rating: RK1
• Diameter: 2 inches
• Weight: 5 lb
• Family: LIMITRON
• Item Subcategory: Low Voltage Fuse

Product Identification

• UPC: 051712417211
• GTIN: 00051712417211
