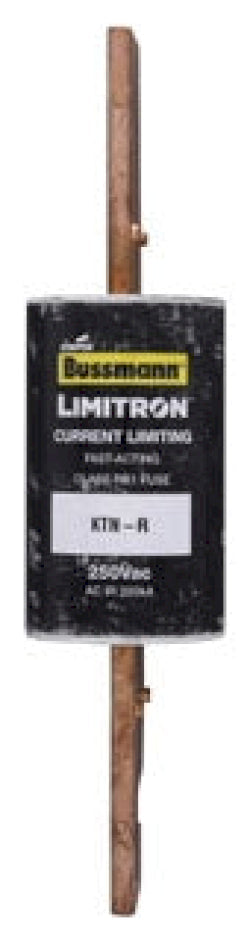

Bussmann KTN-R-600 - RK1 Fuse 600A (200kA AIC @250V)

Bussmann KTN-R-600 is a Class RK1 low-voltage current-limiting fuse designed for circuit protection in industrial power distribution systems. It features a 600A current rating and 250V voltage rating with a 200kA interrupting capacity at rated voltage, housed in a durable cylindrical body measuring 10.38"L x 2.59"D. The fuse meets RK1 classification standards for time-delay characteristics and features a single-barrel construction with 2.59" diameter terminals. Typical applications include motor branch circuits, transformer protection, and feeder circuits requiring high fault current interruption.

Key Features & Specifications

• Type: Current-limiting time-delay fuse (RK1 class)
• Voltage: 250V AC
• Current: 600A
• Dimensions: 10.38"L x 2.59"W x 2.59"H
• Weight: 2 lb
• Standards: UL/CSA listed
• Applications: Industrial power distribution, motor protection
• AIC rating: 200kA@250V
• Class Rating: RK1
• Barrels: 1
• Diameter: 2.59"

Product Identification

• UPC: 051712407281
• GTIN: 00051712407281
