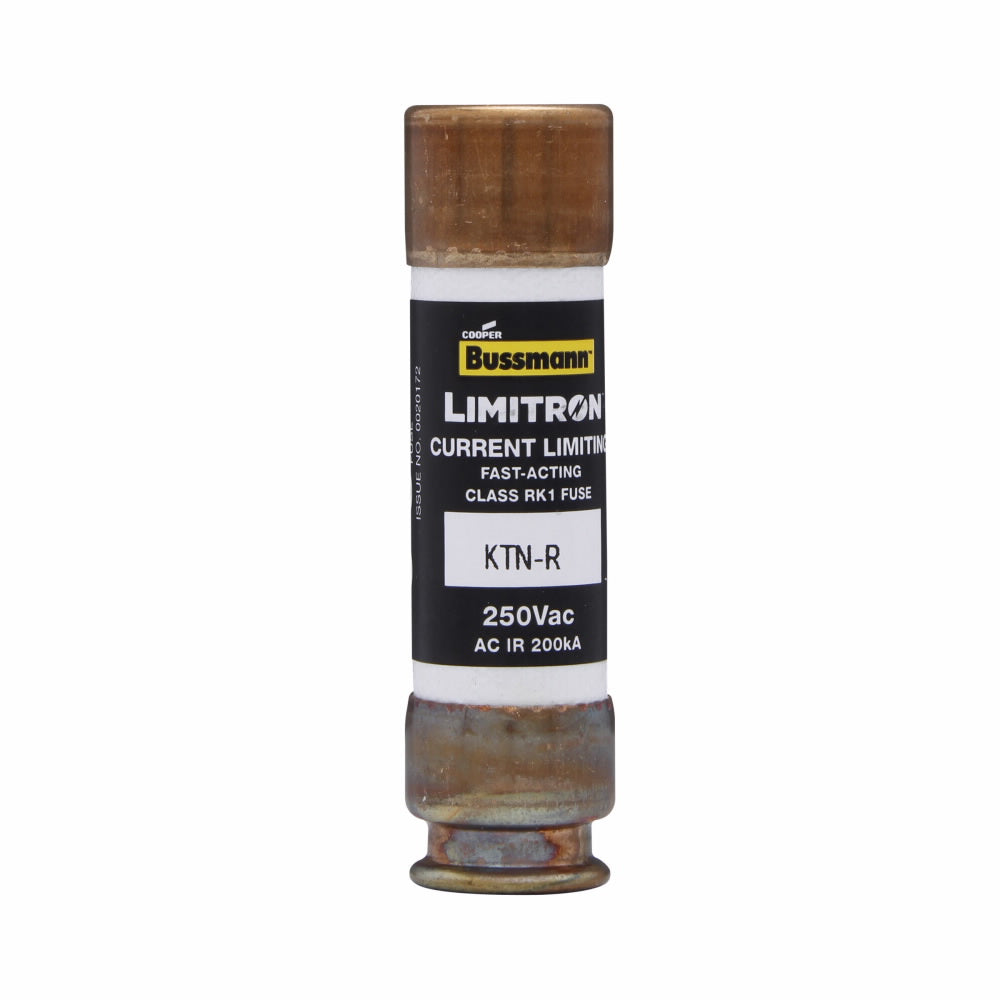

Bussmann KTN-R-35 - RK1 Class Fuse 35A 250V (200kA AIC)

Bussmann KTN-R-35 is a low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. Rated for 250V AC/DC operation with a 35A current capacity, it features an RK1 class rating and delivers 200kA interrupting capacity at rated voltage. The compact cylindrical design measures 3" in length with a 0.81" diameter, constructed with durable materials for reliable performance in demanding environments. UL-recognized and compliant with industry safety standards, this fuse is commonly used in motor control centers, panelboards, and industrial power distribution equipment requiring high fault current protection.

Key Features & Specifications

• Type: Current-limiting fuse (RK1 class) with single barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 35A
• Dimensions: 3" L × 0.81" W × 0.81" H (76.2mm × 20.6mm × 20.6mm)
• Standards: UL recognized, industrial safety compliant
• Applications: Motor controls, panelboards, power distribution
• AIC rating: 200kA@250V
• Diameter: 0.81" (20.6mm)
• Weight: 1.9 lb
• Family: LIMITRON series

Product Identification

• UPC: 051712407083
• GTIN: 00051712407083
