Bussmann KTN-R-100 - RK1 Class Fuse 100A 250V (200kA AIC)

Bussmann
Price
Save $411.84
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

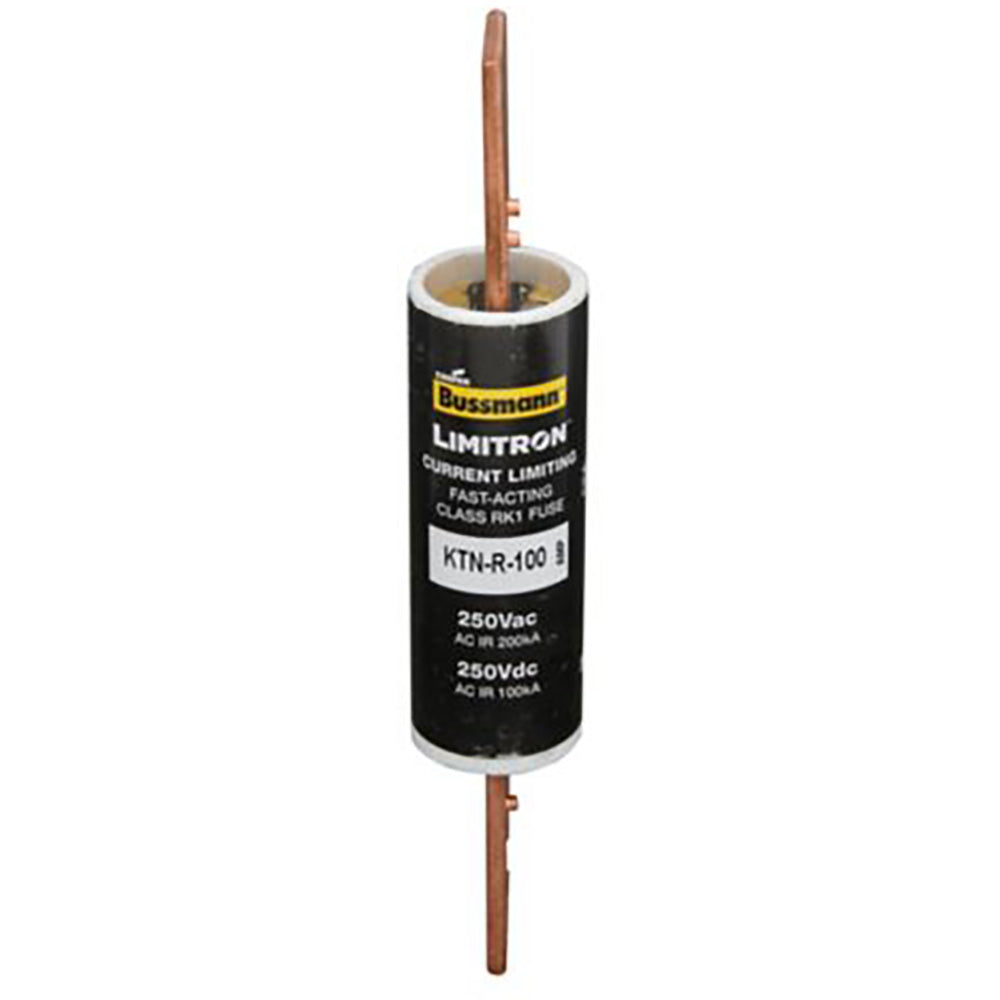

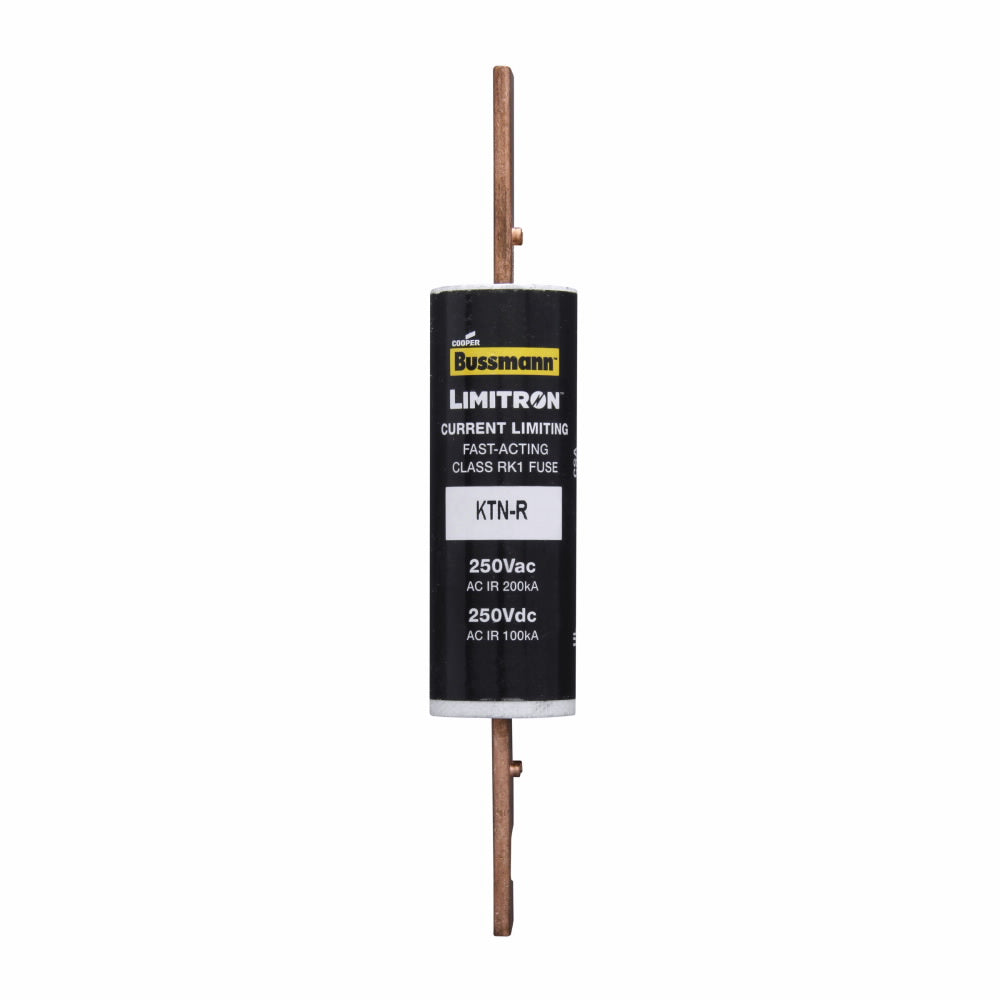

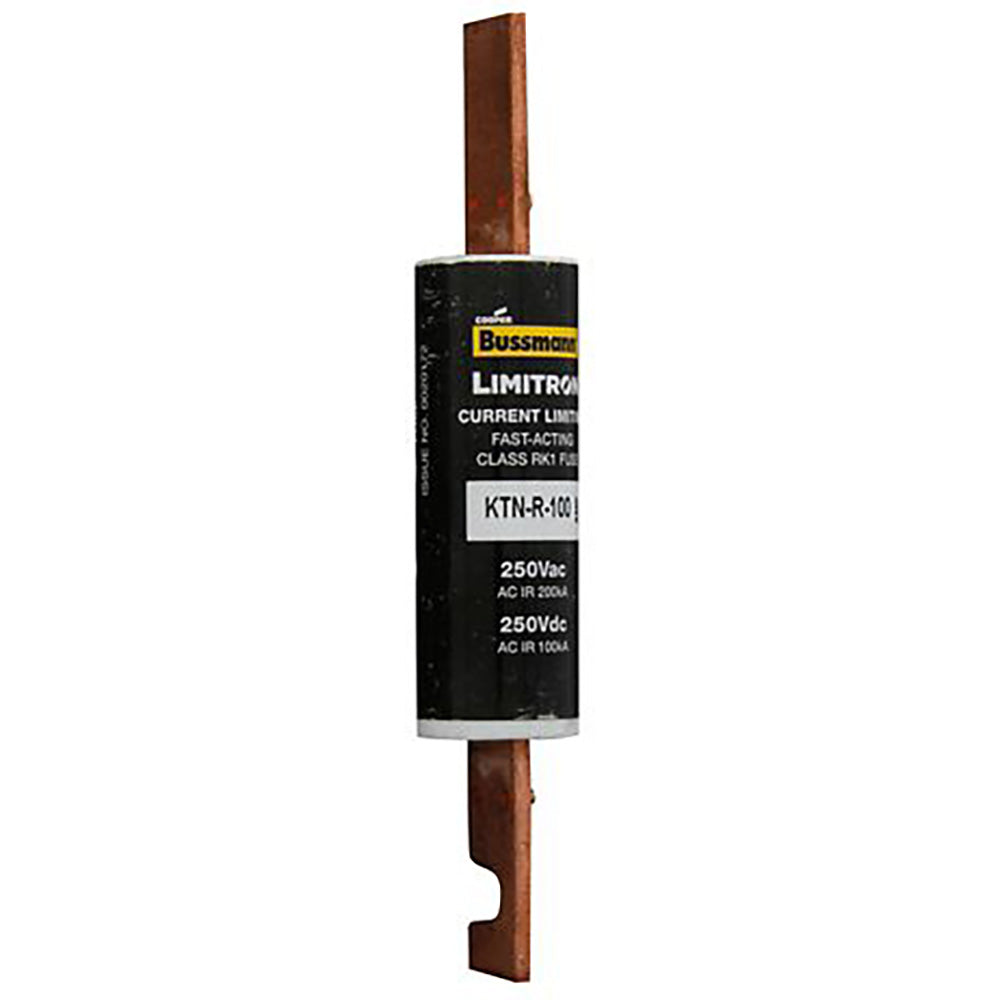

Bussmann KTN-R-100 is a low-voltage current-limiting fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 100A current rating and a 250V AC voltage rating, with a high interrupting capacity of 200,000 amperes. The fuse is constructed as a single-barrel RK1 class device with a 1.06-inch diameter and overall dimensions of 5.85 in H x 1.2 in W x 1.2 in D, weighing 0.3 lb. As part of the LIMITRON fast-acting family, it complies with industry standards for reliable overcurrent protection in applications such as motor control centers, panelboards, and switchgear.

Key Features & Specifications
  • Type: Low Voltage, Fast-Acting, Current-Limiting, RK1 Class Fuse
  • Voltage Rating: 250V AC
  • Current Rating: 100 Amperes
  • Dimensions: 5.85 in H x 1.2 in W x 1.2 in D (30.48 mm W x 30.48 mm D x 148.59 mm H)
  • Standards: UL Listed; RK1 Classification
  • Applications: Branch Circuit & Feeder Protection, Motor Control Centers, Panelboards, Switchgear
  • AIC rating: 200 kA @ 250V
  • Class Rating: RK1
  • Barrels: 1
  • Diameter: 1.06 in (26.92 mm)
  • Weight: 0.3 lb (0.14 kg)
  • Family: LIMITRON


Product Identification
  • UPC: 051712407168
  • GTIN: 00051712407168
