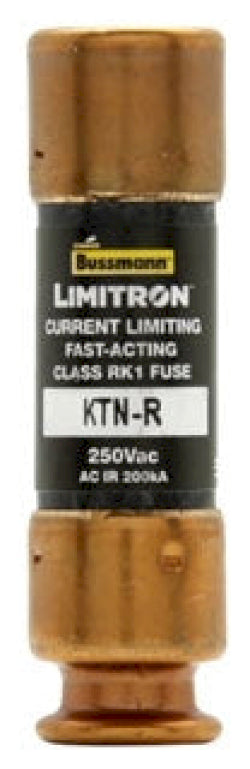

Bussmann KTN-R-10 - RK1 Class Fuse 10A (200kA AIC @ 250V)

Bussmann KTN-R-10 is a low-voltage current-limiting fuse from the Limitron family designed to provide reliable circuit protection in industrial applications. It features a 10A current rating and 250V voltage rating with a high 200kA interrupting capacity at 250V for effective short-circuit protection. The fuse construction utilizes a single-barrel design with RK1 class rating for time-delay characteristics, housed in a compact 0.56-inch diameter by 2-inch long package weighing 1.1 lb. This fuse meets industry standards for current-limiting protection and is commonly deployed in motor branch circuits, control transformers, and industrial power distribution systems where coordinated protection is required.

Key Features & Specifications

• Type: Low Voltage Fuse, Limitron Family, KTN-R Type, Current-Limiting
• Voltage Rating: 250V AC
• Current Rating: 10A
• Dimensions: 0.56" diameter × 2" length
• Standards: RK1 Class Rated
• Applications: Motor branch circuits, control transformers, industrial power distribution
• AIC rating: 200kA @ 250V
• Class Rating: RK1
• Barrels: 1
• Diameter: 0.56 inches
• Weight: 1.1 lb

Product Identification

• UPC: 051712407038
• GTIN: 00051712407038
